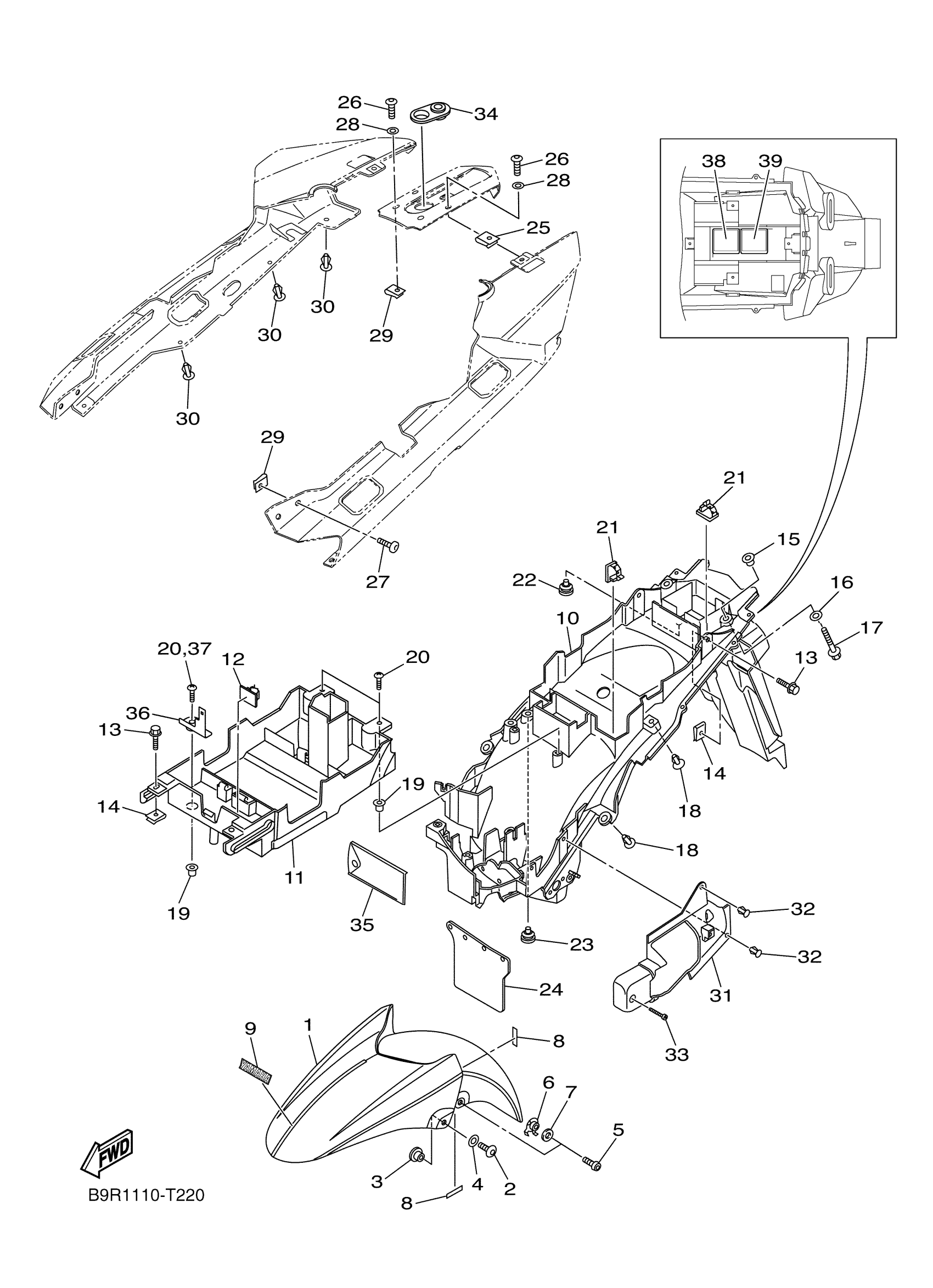

Yamaha FJR13PMW (FJR1300 POLICE) B9R4 2021 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3P6-21511-01-UJ

$148.99

2

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

3

COLLAR

90387-07006-00

Unavailable

4

WASHER, PLATE

90202-06170-00

Unavailable

5

BOLT, BUTTON HEAD

92012-06020-00

$8.49

6

NUT 1

3P6-21535-11-00

$22.99

7

DAMPER 1

3P6-21541-00-00

$6.99

8

DAMPER

5DM-28371-00-00

$7.99

9

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

10

FENDER, REAR

BK5-21611-00-00

Unavailable

11

BOX

5P5-2160E-01-00

Unavailable

12

CLAMP(3YL)

90464-25160-00

$11.49

13

BOLT, WITH WASHER

90119-06159-00

$8.49

14

NUT, SPRING

90183-060A7-00

$8.49

15

COLLAR

90387-06231-00

Unavailable

16

WASHER, PLATE 8087752500

90201-07081-00

Unavailable

17

BOLT, FLANGE

95817-06040-00

Unavailable

18

RIVET

90269-06081-00

Unavailable

19

PLUG(4BP)

90338-08226-00

Unavailable

20

SCREW, TAPPING

97702-60020-00

Unavailable

21

CLAMP(4FM)

90464-13185-00

Unavailable

22

GROMMET

90480-10M36-00

Unavailable

23

GROMMET

90480-10M36-00

Unavailable

24

FLAP

5JW-21621-10-00

Unavailable

25

NUT, SPRING

90183-051A0-00

Unavailable

26

BOLT,HEX. SOCKET BUTTON

90111-05044-00

Unavailable

27

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

28

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

29

NUT, SPRING

90183-050A0-00

Unavailable

30

RIVET

90269-06081-00

Unavailable

31

COVER, REAR FENDER

1MC-2163A-01-00

Unavailable

32

RIVET

90269-06081-00

Unavailable

33

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

Unavailable

34

DAMPER, SEAT

3P6-24747-00-00

Unavailable

35

TOOL KIT

B88-28100-01-00

Unavailable

36

STAY, FUSE

5P5-22562-10-00

Unavailable

37

SCREW, TAPPING

97702-60020-00

Unavailable

38

PLATE, ROUTING

13S-21684-10-00

Unavailable

39

PLATE, ROUTING 2

1MC-21686-00-00

Unavailable
