Description

Price

1

WINDSHIELD

2BC-28381-00-00

$445.99

2

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

3

NUT(1KT)

90179-05523-00

$8.49

4

COVER 5

1MC-2842A-00-UJ

$81.99

5

COVER 6

1MC-2843C-00-UJ

$83.99

6

BOLT, BUTTON HEAD

92012-05012-00

$4.41

7

NUT, SPRING

90183-050A7-00

$3.50

8

STAY 2

1MC-28322-00-00

$74.99

9

BOLT(1KT)

90109-060E9-00

$10.49

10

COVER 3

1MC-2843J-01-00

$7.99

11

COVER 4

1MC-2844J-01-00

$6.99

12

RIVET

90269-05005-00

Unavailable

13

DRIVE UNIT ASSY

1MC-83306-01-00

$456.99

14

NUT, FLANGE

95702-06500-00

$2.39

15

STAY 1

1MC-28356-01-00

$382.99

16

PLATE

5JW-28336-00-00

Unavailable

17

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

18

BOX 1

1MC-2838K-01-00

Unavailable

19

COLLAR

90387-06106-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

Unavailable

21

NUT (J17)

95380-06800-00

Unavailable

22

PLUG(1NL)

90338-07180-00

Unavailable

23

CLAMP

90464-36006-00

Unavailable

24

BRACKET

1MC-28366-00-00

Unavailable

25

DAMPER 3

1MC-2834E-00-00

Unavailable

26

BOLT (33M)

91312-06014-00

Unavailable

27

BODY, FRONT UPPER 1

2BC-2835G-00-UJ

Unavailable

28

GRILL, AIR INTAKE 1

1MC-2837N-00-00

Unavailable

29

GRILL, AIR INTAKE 2

1MC-2837R-00-00

Unavailable

30

NUT, SPRING(1YT)

90183-05042-00

Unavailable

31

NUT, SPRING

90183-050A6-00

Unavailable

32

RIVET

90269-06008-00

Unavailable

33

BODY, COWLING

1MC-28351-00-P4

Unavailable

34

NUT, SPRING(1YT)

90183-05042-00

Unavailable

35

DUCT 1

1MC-2838N-00-00

Unavailable

36

SCREW, TAPPING

97702-50016-00

Unavailable

37

TUNING FORK MARK

8GC-2836B-02-00

Unavailable

38

SCREW, TAPPING

90167-05080-00

Unavailable

39

SCREW, TAPPING

90167-05080-00

Unavailable

40

BOX SUB ASSY

3P6-2830N-00-PC

Unavailable

41

LOCK ASSY

5VS-28470-00-00

Unavailable

42

BRACKET

5VS-28367-00-00

Unavailable

43

NUT, SPRING

90183-051A0-00

Unavailable

44

GROMMET

3P6-28187-00-00

Unavailable

45

SCREW, BINDING

90154-05007-00

Unavailable

46

SCREW, TAPPING

97702-50016-00

Unavailable

47

CLAMP

90465-10098-00

Unavailable

48

NUT, SPRING

90183-050A6-00

Unavailable

49

COVER

1MC-28365-00-00

Unavailable

50

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

51

PANEL, CONSOLE 1

1MC-2837L-00-00

Unavailable

52

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

53

REAR VIEW MIRROR ASSY (LEFT)

3P6-26280-10-UJ

Unavailable

54

REAR VIEW MIRROR ASSY (RIGHT)

3P6-26290-10-UJ

Unavailable

55

PLATE, MIRROR FITTING 1

5JW-26298-00-00

Unavailable

56

PLATE, MIRROR FITTING 2

3P6-26299-00-00

Unavailable

57

COLLAR(4JW)

90387-0602X-00

Unavailable

58

NUT, FLANGE

95702-06500-00

$2.39

59

WIRE, LEAD

1MC-82507-00-00

Unavailable

60

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

Unavailable

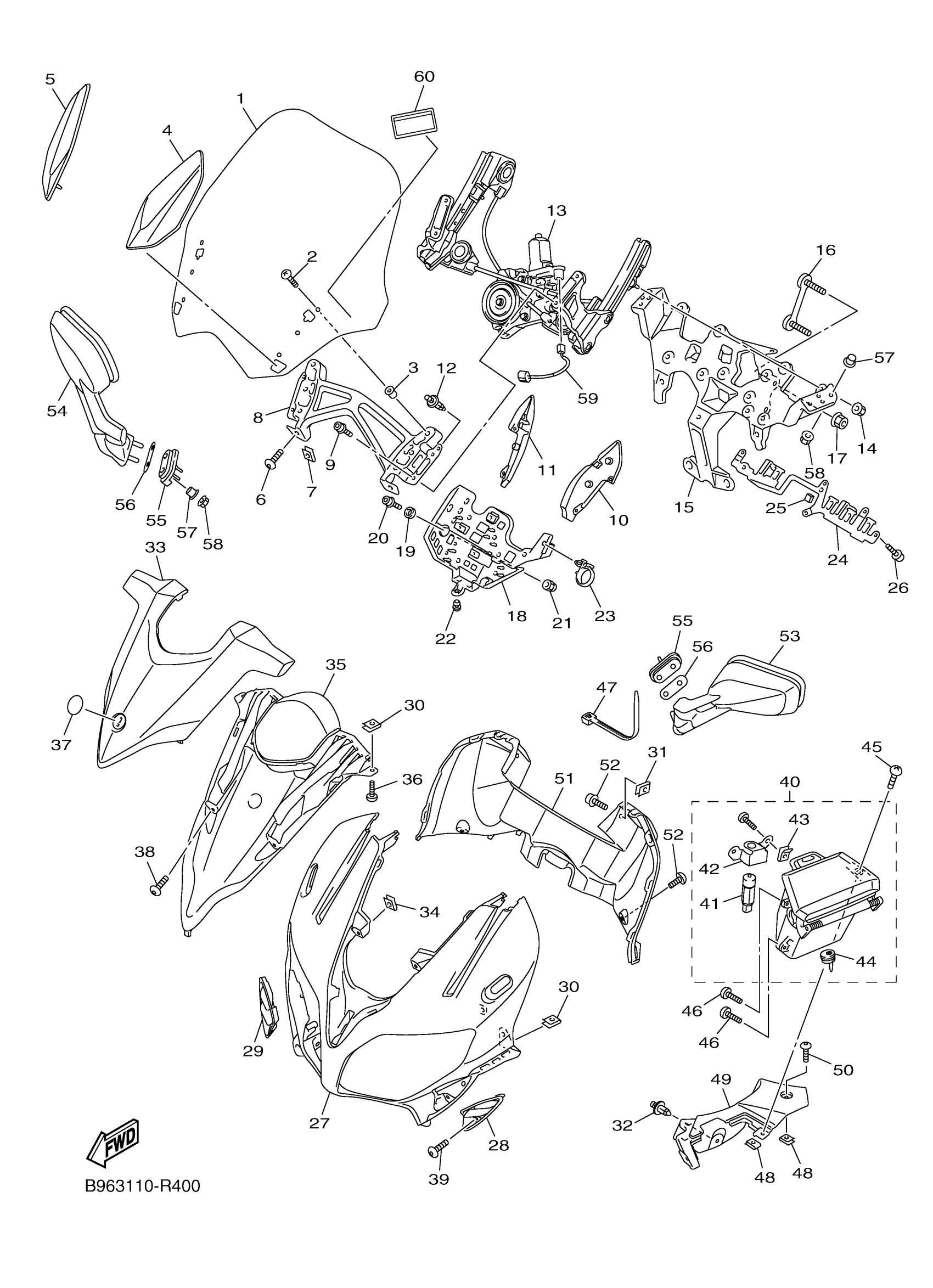

Yamaha FJR13PMW (FJR1300 POLICE) B9R4 2021 COWLING 1 Diagram

WINDSHIELD

SCREW, ROUND HEAD(1UX)

NUT(1KT)

COVER 5

COVER 6

BOLT, BUTTON HEAD

NUT, SPRING

STAY 2

BOLT(1KT)

COVER 3

COVER 4

RIVET

DRIVE UNIT ASSY

NUT, FLANGE

STAY 1

PLATE

NUT, FLANGE(8AB)

BOX 1

COLLAR

BOLT, HEXAGON SOCKET HEAD

NUT (J17)

PLUG(1NL)

CLAMP

BRACKET

DAMPER 3

BOLT (33M)

BODY, FRONT UPPER 1

GRILL, AIR INTAKE 1

GRILL, AIR INTAKE 2

NUT, SPRING(1YT)

NUT, SPRING

RIVET

BODY, COWLING

NUT, SPRING(1YT)

DUCT 1

SCREW, TAPPING

TUNING FORK MARK

SCREW, TAPPING

SCREW, TAPPING

BOX SUB ASSY

LOCK ASSY

BRACKET

NUT, SPRING

GROMMET

SCREW, BINDING

SCREW, TAPPING

CLAMP

NUT, SPRING

COVER

BOLT,HEX. SOCKET BUTTON

PANEL, CONSOLE 1

BOLT,HEX. SOCKET BUTTON

REAR VIEW MIRROR ASSY (LEFT)

REAR VIEW MIRROR ASSY (RIGHT)

PLATE, MIRROR FITTING 1

PLATE, MIRROR FITTING 2

COLLAR(4JW)

NUT, FLANGE

WIRE, LEAD

LABEL, NOTICE WINDSHIELD 1
