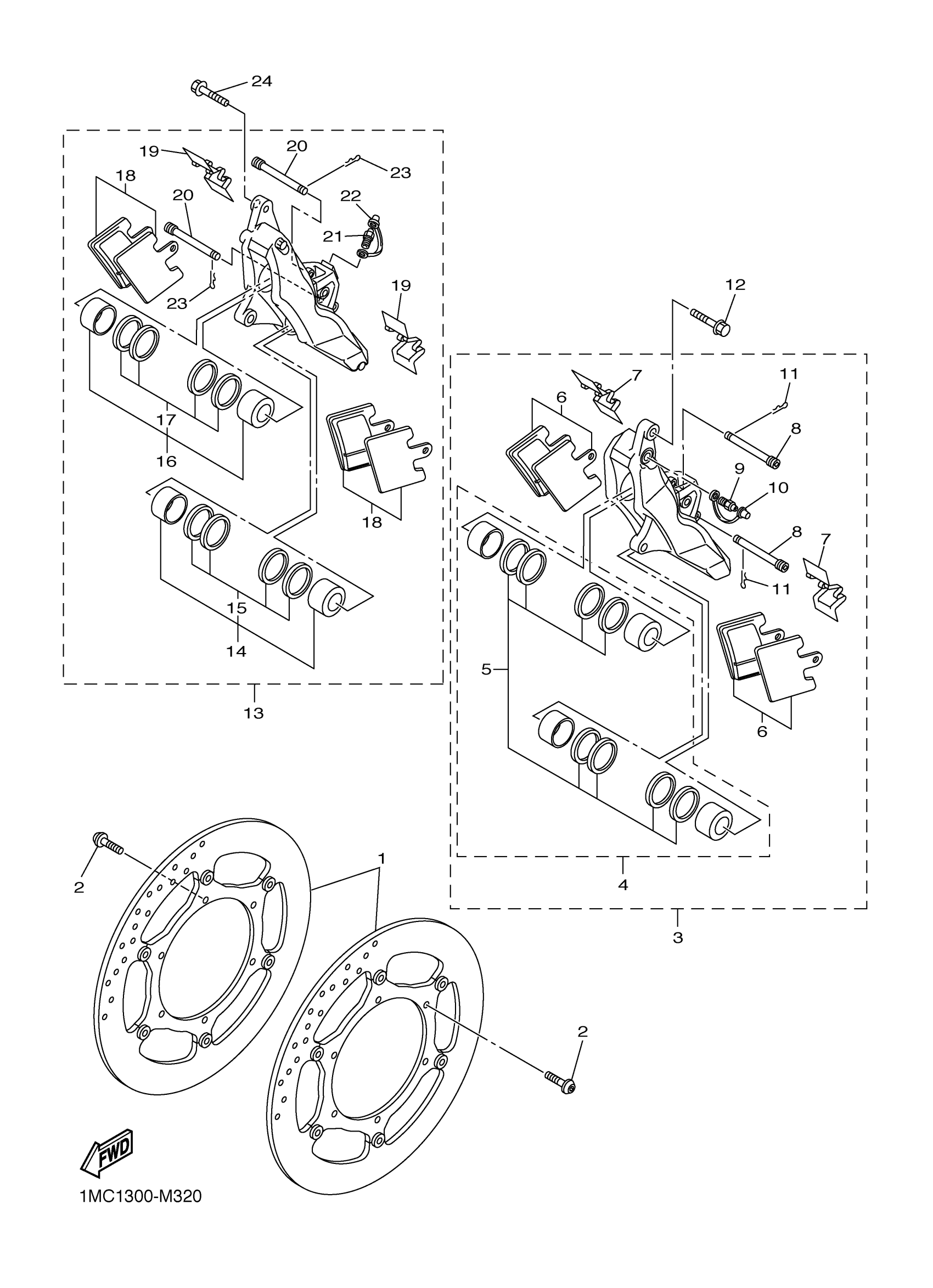

Yamaha FJR13PLW (FJR1300 POLICE) B9R3 2020 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

3P6-2581T-01-00

$281.43

2

BOLT

90109-06254-00

Unavailable

3

CALIPER ASSY (LEFT)

1MC-2580T-01-00

$436.15

4

PISTON ASSY, CALIPER

3P6-25802-01-00

Unavailable

5

CALIPER SEAL KIT

3P6-W0047-00-00

Unavailable

6

BRAKE PAD KIT

3P6-W0045-00-00

$37.23

7

SUPPORT, PAD

3P6-25919-00-00

$50.07

8

PIN, PAD

3P6-25924-00-00

$53.19

9

SCREW, BLEED

8CR-25824-00-00

Unavailable

10

BLEED SCREW KIT

36Y-W0048-00-00

$8.13

11

STOPPER

3P6-25925-00-00

Unavailable

12

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.94

13

CALIPER ASSY (RIGHT)

1MC-2580U-00-00

$436.15

14

PISTON ASSY, CALIPER

3P6-W0057-10-00

$151.51

15

CALIPER SEAL KIT

3P6-W0047-10-00

$25.22

16

PISTON ASSY, CALIPER

3P6-W0057-20-00

Unavailable

17

CALIPER SEAL KIT

3P6-W0047-20-00

Unavailable

18

BRAKE PAD KIT

3P6-W0045-00-00

$37.23

19

SUPPORT, PAD

3P6-25919-00-00

$50.07

20

PIN, PAD

3P6-25924-00-00

$53.19

21

SCREW, BLEED

8CR-25824-00-00

Unavailable

22

BLEED SCREW KIT

36Y-W0048-00-00

$8.13

23

STOPPER

3P6-25925-00-00

Unavailable

24

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.94
