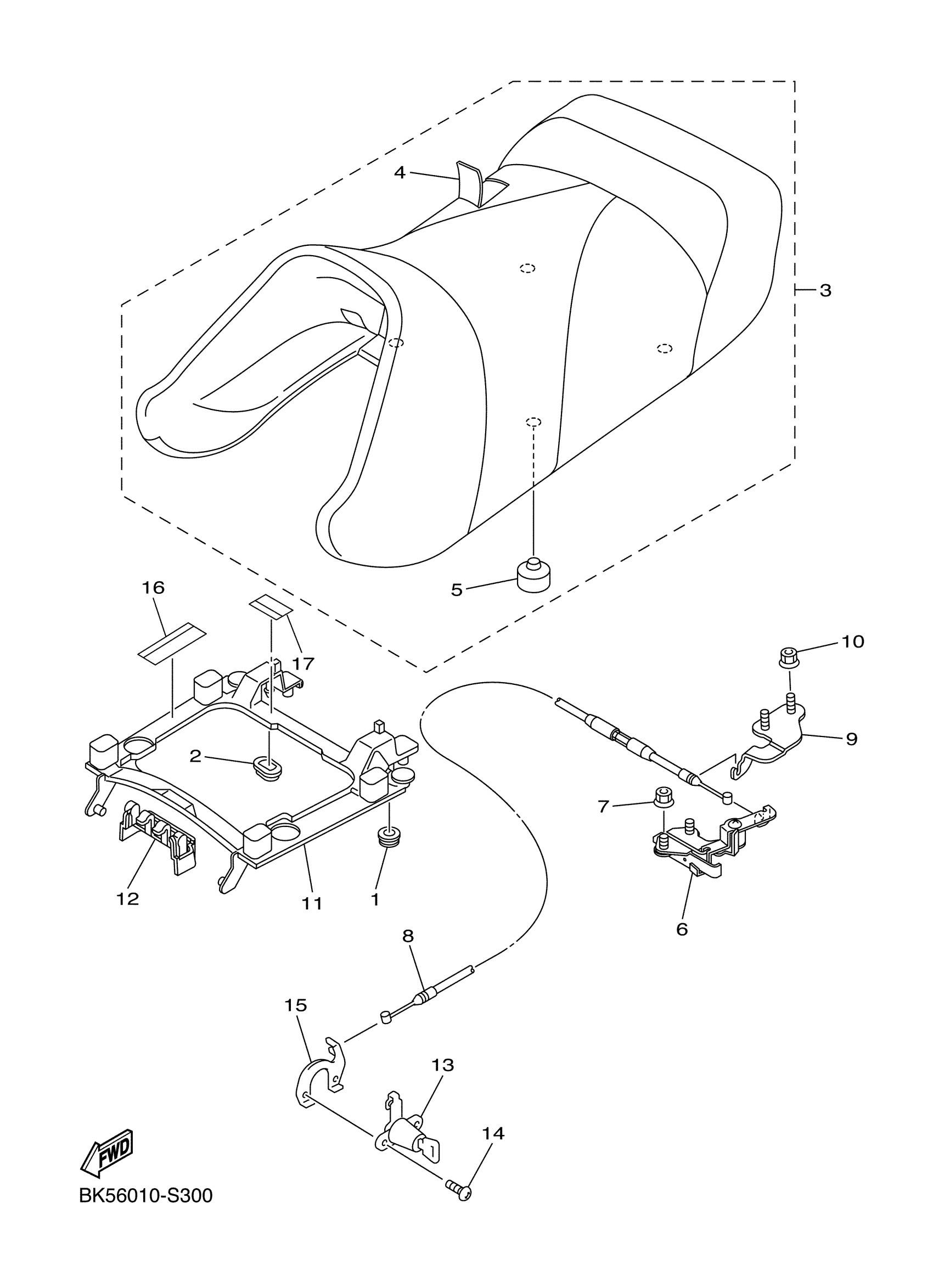

Yamaha FJR13PJW (FJR1300P POLICE) B9R1 2018 SEAT Diagram

#

Description
Price

1

GROMMET(4FU)

90480-13567-00

$4.99

2

GROMMET(4DN)

90480-01558-00

$4.19

3

SINGLE SEAT ASSY

5P5-24710-02-00

$300.99

4

SEAT COVER COMP.

5P5-2470F-01-00

Unavailable

5

PAD, SEAT

5JW-24741-00-00

$5.49

6

SEAT LOCK ASSY

5P5-24780-00-00

$112.99

7

NUT, FLANGE

95702-06500-00

$2.39

8

CABLE, SEAT LOCK

5P5-2478E-00-00

$19.99

9

HOLDER 1

5P5-24847-00-00

$34.99

10

NUT, FLANGE

95702-06500-00

$2.39

11

SEAT BRACKET ASSY

3P6-24708-00-00

$74.99

12

STOPPER

3P6-24768-00-00

Unavailable

13

SEAT LOCK ASSY

3CK-W2470-00-00

$84.99

14

SCREW(4HM)

90149-06308-00

$8.49

15

STAY, LOCK

3P6-2117K-01-00

Unavailable

16

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

17

LABEL, CAUTION

4BR-24877-A0-00

Unavailable
