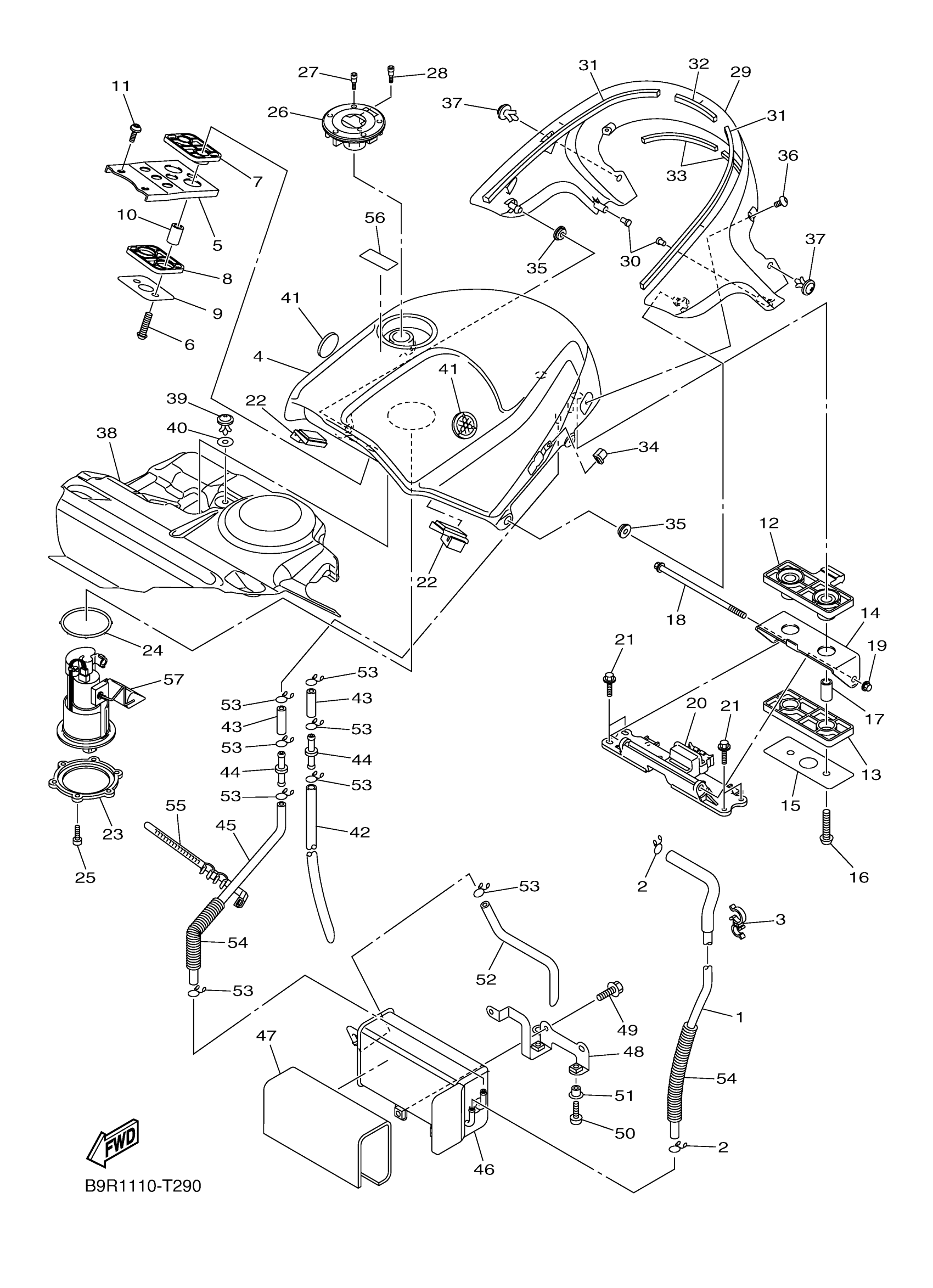

Yamaha FJR13PJW (FJR1300P POLICE) B9R1 2018 FUEL TANK Diagram
#
1
PIPE
1MC-1443J-10-00
Unavailable
3
CLAMP(3XC)
90464-28153-00
Unavailable
5
BRACKET, FUEL TANK 1
5JW-24191-20-00
Unavailable
8
DAMPER, LOCATING 2
5JW-24182-00-00
Unavailable
9
WASHER, SPECIAL
5JW-24187-00-00
Unavailable
11
SCREW(4DN)
90149-06302-00
Unavailable
12
DAMPER, LOCATING 3
3P6-24183-00-00
Unavailable
15
WASHER, SPECIAL
5JW-24186-00-00
Unavailable
18
BOLT, FLANGE
95817-08160-00
Unavailable
19
NUT,FLANGE(J10)
95702-08500-00
Unavailable
20
BRACKT, TANK FITTING
3P6-21348-00-00
Unavailable
21
BOLT, FLANGE
95817-06020-00
Unavailable
22
DAMPER, LOCATING 4
3P6-24184-00-00
Unavailable
23
BRACKET, FUEL PUMP
1MC-24491-00-00
Unavailable
24
O-RING
19B-24486-01-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
26
CAP ASSY
39P-24602-10-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
28
BOLT
91312-05010-00
Unavailable
29
COVER, SIDE 1
3P6-24129-10-UJ
Unavailable
30
PLUG(1NL)
90338-07180-00
Unavailable
31
DAMPER, PLATE 1
3P6-2414H-00-00
Unavailable
32
DAMPER, PLATE 2
3P6-2414J-00-00
Unavailable
33
DAMPER, PLATE 6
2D1-2414R-00-00
Unavailable
34
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
35
GROMMET(4DN)
90480-01558-00
Unavailable
36
BOLT,HEX. SOCKET BUTTON
90111-05023-00
Unavailable
37
RIVET
90269-06081-00
Unavailable
38
INSULATOR, FUEL TANK 1
1MC-2416F-00-00
Unavailable
39
RIVET
90269-06081-00
Unavailable
40
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
41
EMBLEM
1RC-2413B-02-00
Unavailable
42
HOSE (L500)
90445-11036-00
Unavailable
43
HOSE
90445-11066-00
Unavailable
44
JOINT
4XY-14568-00-00
Unavailable
45
PIPE 2
B88-24312-10-00
Unavailable
46
CANISTER ASSY
3P6-24170-00-00
Unavailable
47
SEAL 2
3P6-2414E-00-00
Unavailable
48
BRACKET, CANISTOR
B88-2419F-00-00
Unavailable
49
BOLT, FLANGE
95814-06012-00
Unavailable
50
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
51
COLLAR(4JX)
90387-0603J-00
Unavailable
52
PIPE 4
3P6-24314-00-00
Unavailable
54
PROTECTOR, PIPE 2
3P6-2432A-00-00
Unavailable
55
CLAMP
90464-10009-00
Unavailable
56
LABEL, CAUTION
1TP-2118K-A2-00
Unavailable
57
FUEL PUMP COMP.
5JW-13907-25-00
Unavailable
