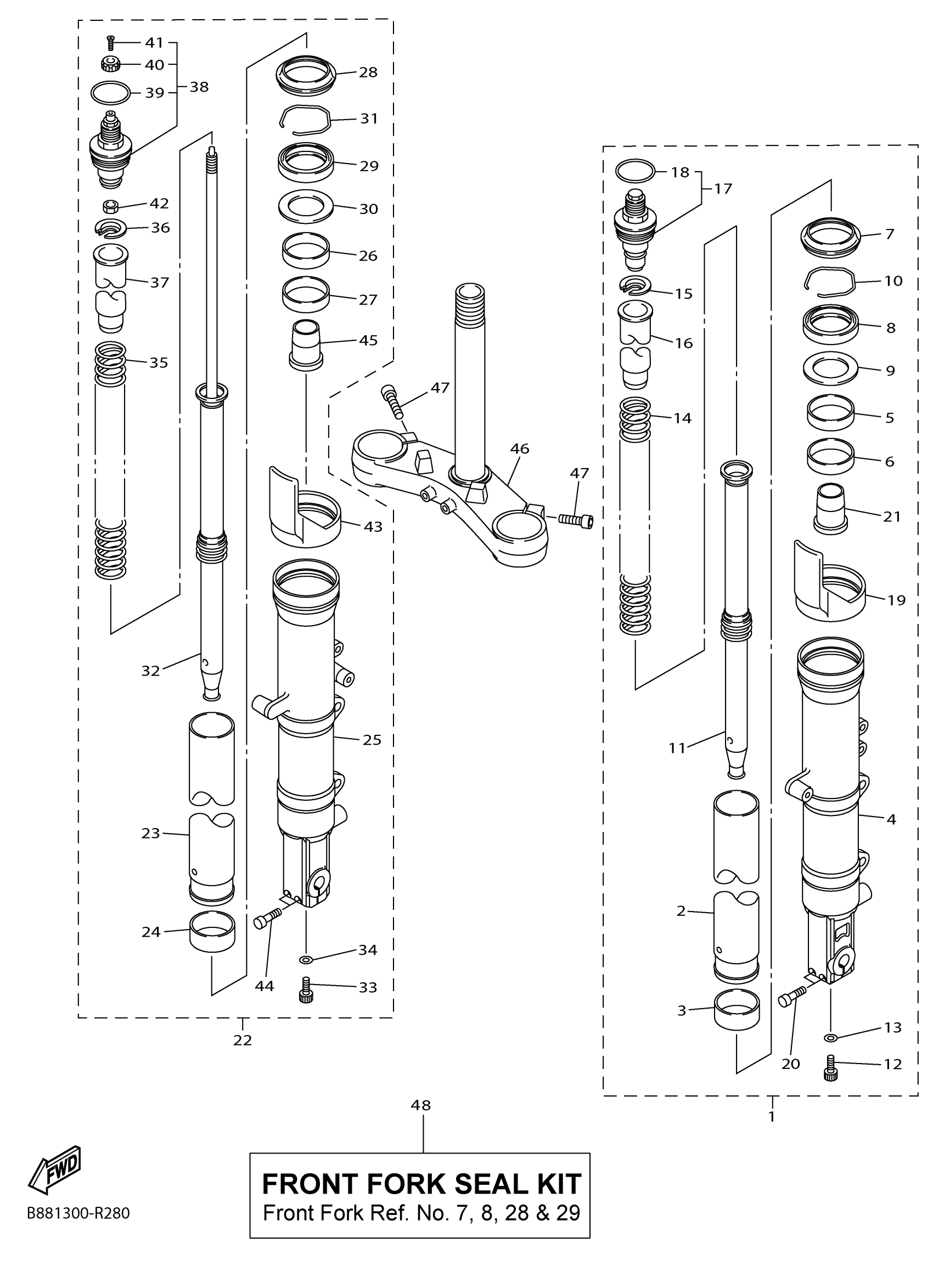

Yamaha FJR13PJW (FJR1300P POLICE) B9R1 2018 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

1MC-23102-10-00

$752.99

2

INNER TUBE COMP.1

1MC-23110-10-00

Unavailable

3

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

4

TUBE, OUTER (L.H)

1MC-23126-10-00

$304.99

5

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

6

METAL, SLIDE 2

3P6-23135-00-00

$20.99

7

SEAL, DUST

4SV-23144-00-00

$16.49

8

OIL SEAL

4SV-23145-01-00

$18.49

9

SEAT 1

1MC-23115-10-00

Unavailable

10

RING, SNAP

1MC-23156-10-00

$2.13

11

CYLINDER COMP.,2

1MC-2315K-10-00

Unavailable

12

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

Unavailable

13

GASKET

509-23158-L0-00

$16.49

14

SPRING, FRONT FORK

1MC-23141-10-00

Unavailable

15

SEAT, SPRING UPPER

5UX-23142-00-00

$9.99

16

SPACER

1MC-23118-20-00

Unavailable

17

BOLT, CAP

1MC-23111-10-00

Unavailable

18

O-RING

1C3-23188-L1-00

Unavailable

19

COVER

4SV-2331G-00-00

Unavailable

20

BOLT,SOCKET

91314-08045-00

Unavailable

21

SPINDLE, TAPER

1MC-23173-10-00

Unavailable

22

FRONT FORK ASSY (R.H)

1MC-23103-10-00

Unavailable

23

INNER TUBE COMP.1

1MC-23110-10-00

Unavailable

24

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

25

OUTER TUBE COMP. (R.H)

1MC-23107-10-00

Unavailable

26

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

27

METAL, SLIDE 2

3P6-23135-00-00

$20.99

28

SEAL, DUST

4SV-23144-00-00

$16.49

29

OIL SEAL

4SV-23145-01-00

$18.49

30

SEAT 1

1MC-23115-10-00

Unavailable

31

RING, SNAP

1MC-23156-10-00

$2.13

32

CYLINDER COMP.,3

1MC-2315L-10-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

Unavailable

34

GASKET

509-23158-L0-00

$16.49

35

SPRING, FRONT FORK

1MC-23141-10-00

Unavailable

36

SEAT, SPRING UPPER

5UX-23142-00-00

$9.99

37

SPACER

1MC-23118-20-00

Unavailable

38

BOLT, CAP 2

1MC-2311J-10-00

Unavailable

39

O-RING

1C3-23188-L1-00

Unavailable

40

KNOB (TEN)

5JW-2319W-00-00

Unavailable

41

SCREW

1MC-23119-10-00

Unavailable

42

NUT

5UX-23778-00-00

Unavailable

43

COVER

4SV-2331G-00-00

Unavailable

44

BOLT,SOCKET

91314-08045-00

Unavailable

45

SPINDLE, TAPER

1MC-23173-10-00

Unavailable

46

UNDER BRACKET COMP.

1MC-23340-10-00

Unavailable

47

BOLT, SOCKET

91317-08025-00

Unavailable

48

FORK SEAL KIT (TWO FORKS)

4SV-W003B-00-00

Unavailable
