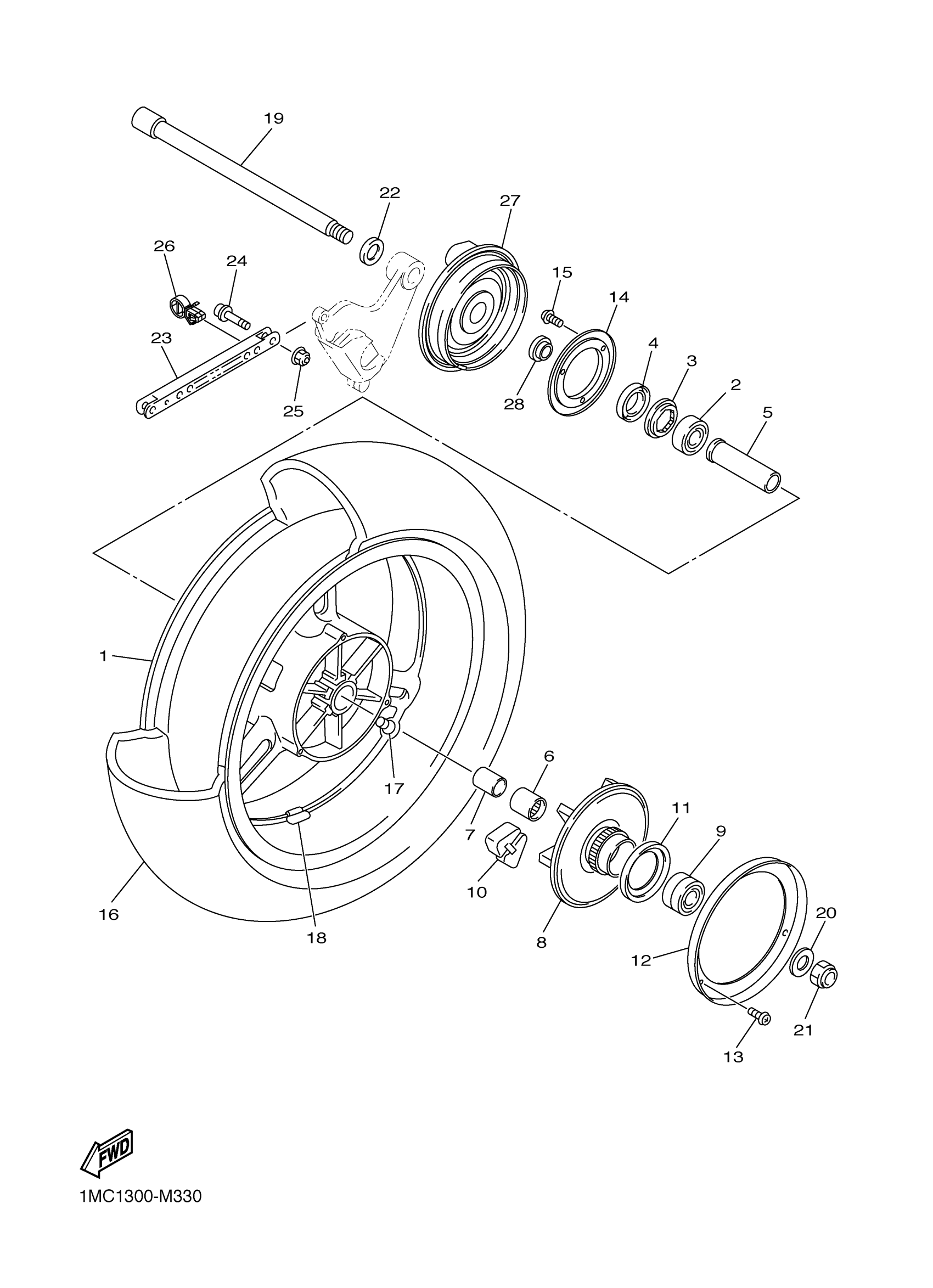

Yamaha FJR13ESRC (FJR1300ES CA) BNPC 2024 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

3P6-25338-01-98

$582.38

2

BEARING

93306-30446-00

$60.53

3

NUT, ADJUSTING

1MC-2538E-00-00

Unavailable

4

OIL SEAL

93106-40013-00

$11.26

5

SPACER, BEARING

3P6-25317-00-00

Unavailable

6

BEARING

93317-42592-00

$46.11

7

COLLAR, WHEEL

5JW-25383-00-00

$32.94

8

CLUTCH, HUB

5JW-25366-00-00

Unavailable

9

BEARING

93306-20480-00

$36.30

10

DAMPER

5JW-25364-00-00

$21.52

11

SEAL, HUB DUST

5JW-25319-00-00

$29.98

12

COVER, PLATE

5JW-25327-00-00

$66.97

13

SCREW

90149-05030-00

$1.99

14

ROTOR, SENSOR

3P6-2517G-00-00

$37.04

15

SCREW

90149-05030-00

$1.99

16

TIRE

94118-17086-00

$473.14

17

VALVE, RIM(2GH)

93900-00030-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-10-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

19

AXLE, WHEEL

5JW-25381-10-00

Unavailable

20

WASHER, PLATE

90201-181U5-00

Unavailable

21

NUT, SELF-LOCKING

90185-18009-00

Unavailable

22

WASHER(3JP)

92903-20600-00

Unavailable

23

BAR, TENSION

5JW-25371-10-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-08106-00

Unavailable

25

NUT, SELF-LOCKING

95602-08200-00

Unavailable

26

CLAMP(4NX)

90464-23239-00

Unavailable

27

HOUSING, SENSOR REAR

1MC-2537A-00-00

Unavailable

28

COLLAR, WHEEL

1MC-25383-00-00

Unavailable
