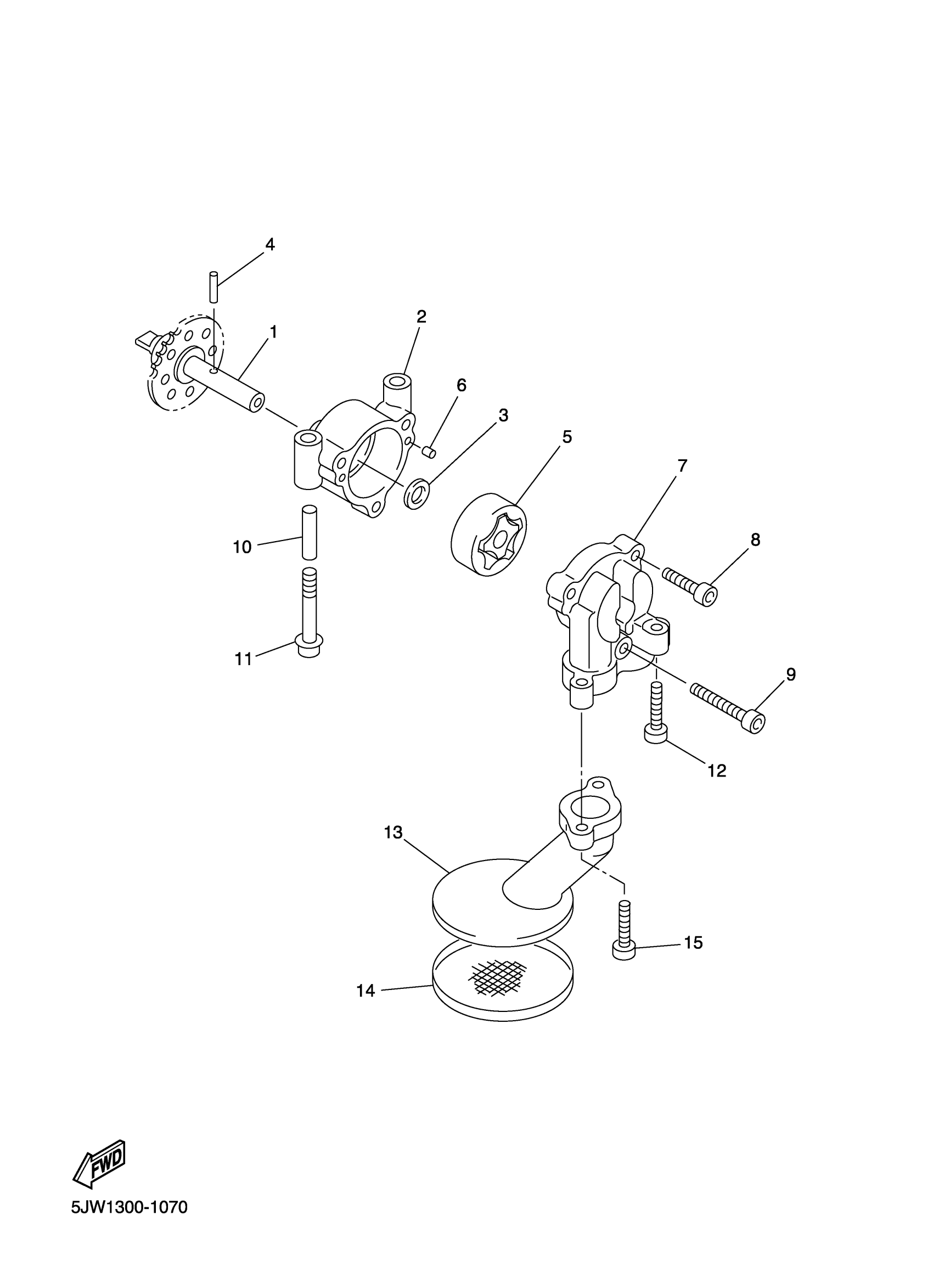

Yamaha FJR13ESRC (FJR1300ES CA) BNPC 2024 OIL PUMP Diagram

#

Description
Price

1

PUMP SHAFT ASSY

5JW-13330-00-00

$148.99

2

COVER, PUMP

5JW-13316-00-00

Unavailable

3

WASHER, PLATE(1WG)

90201-113K2-00

$9.49

4

PIN,DOWEL

93603-17070-00

$4.14

5

ROTOR ASSY 1

5JW-13310-00-00

Unavailable

6

PIN, DOWEL (341)

93603-09106-00

$2.28

7

HOUSING, ROTOR

5JW-13336-00-00

$125.99

8

BOLT,SOCKET

91317-06025-00

$5.60

9

TORNILLO ALLEN

91312-06040-00

$8.49

10

PIN, DOWEL

91808-30031-00

$7.49

11

BOLT, HEXAGON SOCKET HEAD

90110-06166-00

$4.19

12

BOLT,SOCKET

91317-06025-00

$5.60

13

HOUSING, STRAINER

5JW-13412-00-00

$58.99

14

STRAINER, OIL

5JW-13411-00-00

Unavailable

15

BOLT,SOCKET HEAD

91314-06020-00

$1.49
