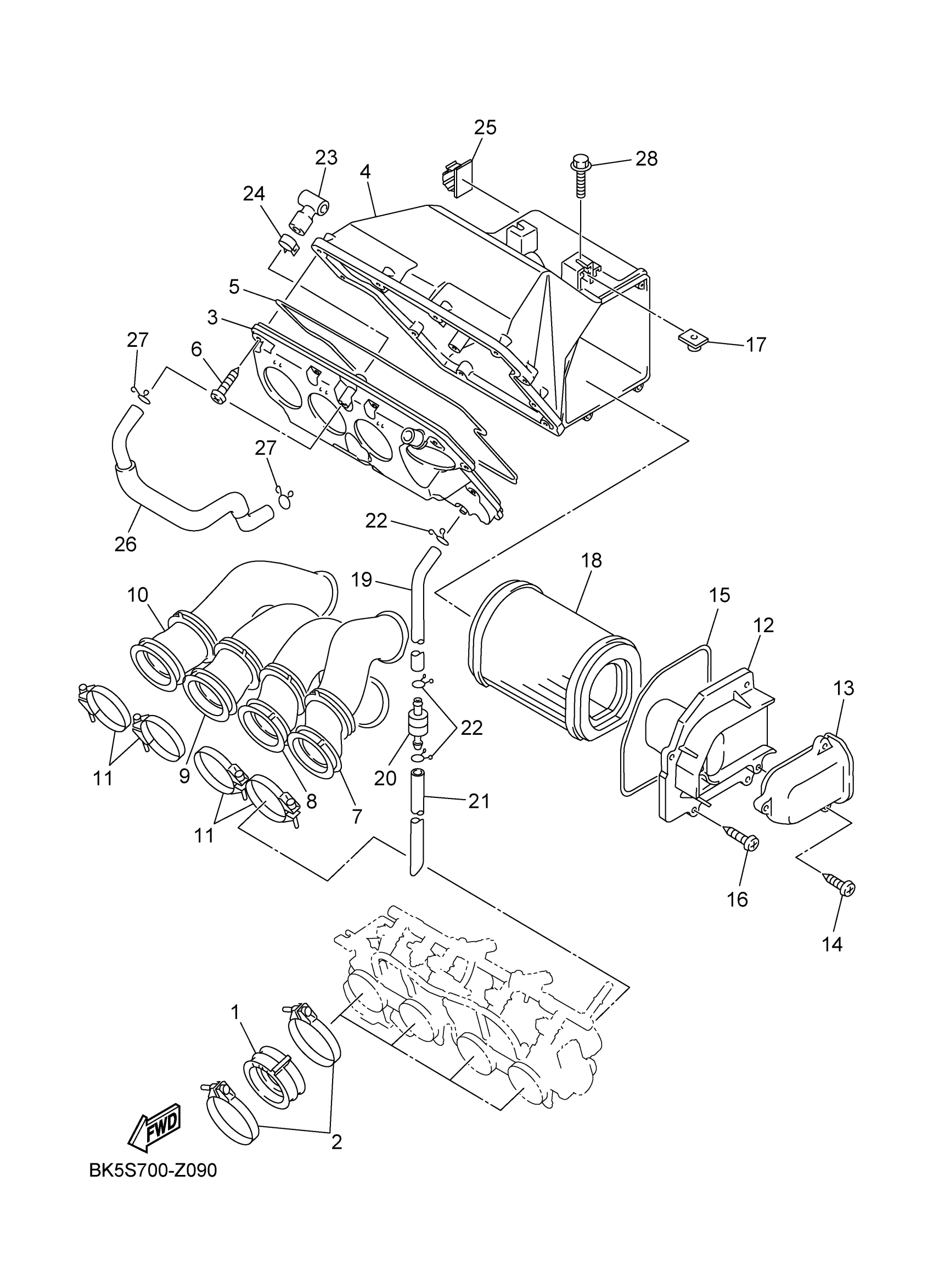

Yamaha FJR13ESRC (FJR1300ES CA) BNPC 2024 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 3

1MC-13597-00-00

Unavailable

2

HOSE CLAMP ASSY

90450-62004-00

Unavailable

3

CASE, AIR CLEANER 1

1MC-14411-00-00

Unavailable

4

CASE, AIR CLEANER 2

1MC-14421-00-00

Unavailable

5

SEAL

1VJ-14462-00-00

$18.49

6

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

$2.87

7

JOINT, AIR CLEANER

1MC-14453-01-00

Unavailable

8

JOINT, AIR CLEANER

1MC-14463-01-00

Unavailable

9

JOINT

1MC-14454-01-00

Unavailable

10

JOINT

1MC-14568-01-00

Unavailable

11

HOSE CLAMP ASSY

90450-56007-00

$13.99

12

CAP, CLEANER CASE 1

5JW-14412-10-00

Unavailable

13

DUCT

5JW-14437-00-00

Unavailable

14

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

$2.87

15

SEAL

5JW-14452-00-00

$6.99

16

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

$2.87

17

PLATE

31A-14477-10-00

Unavailable

18

ELEMENT, AIR CLEANER

5JW-14451-00-00

Unavailable

19

HOSE (L198)

90445-11293-00

Unavailable

20

FILTER ASSY

4X7-2149Y-00-00

Unavailable

21

HOSE

90445-11094-00

Unavailable

22

CLIP

90467-100A1-00

Unavailable

23

PIPE

5JW-14419-00-00

Unavailable

24

CLIP

90468-08104-00

Unavailable

25

CLAMP

90464-20014-00

Unavailable

26

PIPE, BREATHER 1

1MC-11166-00-00

Unavailable

27

CLIP (371)

90467-14015-00

Unavailable

28

BOLT, FLANGE

95817-06020-00

Unavailable
