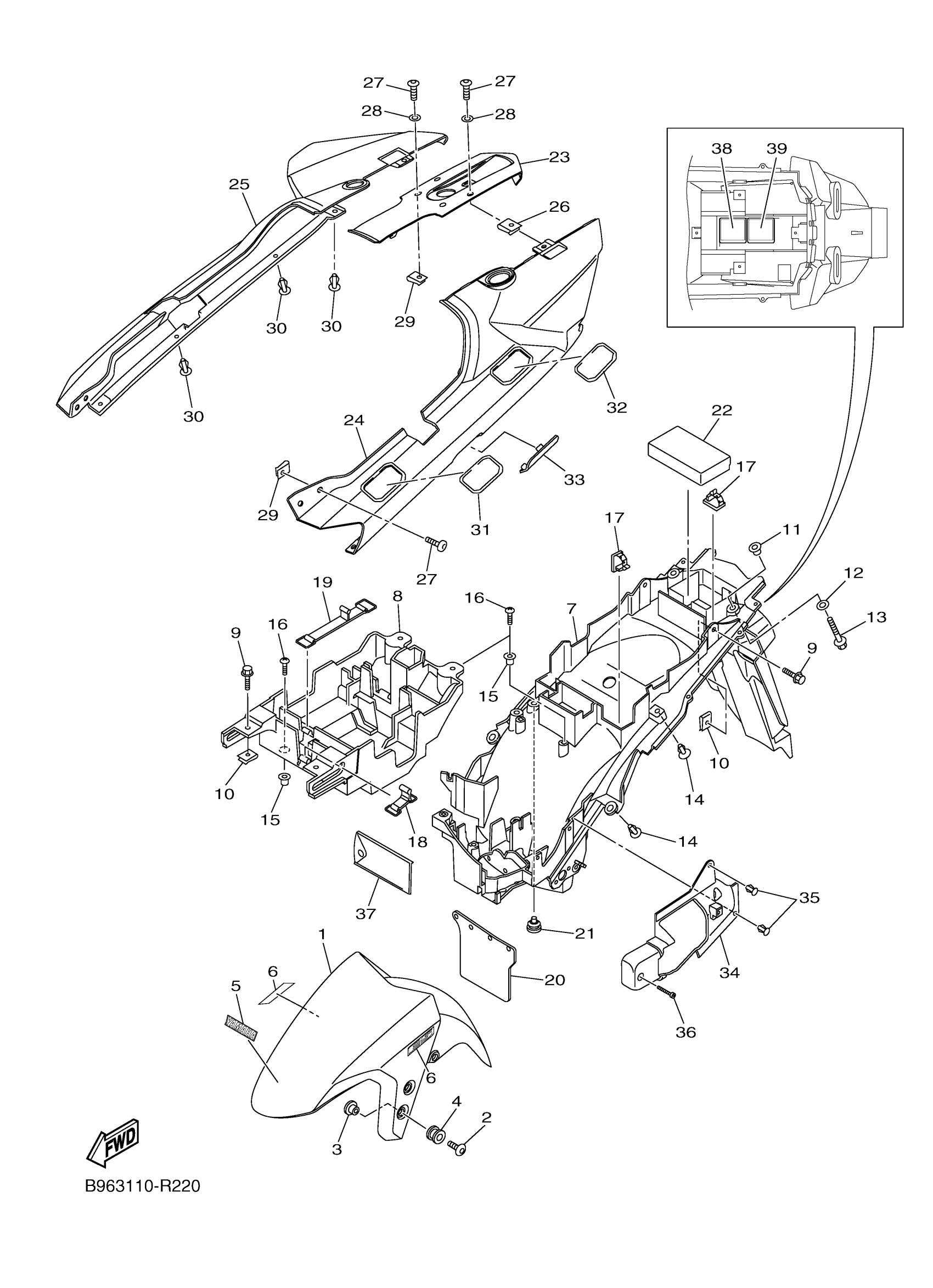

Yamaha FJR13ESRC (FJR1300ES CA) BNPC 2024 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1MD-21511-00-P6

$179.99

2

BOLT

90111-06043-00

$4.46

3

COLLAR

90387-06159-00

$8.49

4

GROMMET(53Y)

90480-12072-00

$8.49

5

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

6

EMBLEM

2BS-21578-01-00

$4.68

7

FENDER, REAR

B88-21611-01-00

$134.99

8

BOX

1MD-2160E-01-00

Unavailable

9

BOLT, WITH WASHER

90119-06159-00

$8.49

10

NUT, SPRING

90183-060A7-00

$8.49

11

COLLAR

90387-06231-00

Unavailable

12

WASHER, PLATE 8087752500

90201-07081-00

$10.49

13

BOLT, FLANGE

95817-06040-00

$5.60

14

RIVET

90269-06081-00

$7.49

15

PLUG(4BP)

90338-08226-00

$2.17

16

SCREW, TAPPING

97702-60020-00

Unavailable

17

CLAMP(4FM)

90464-13185-00

Unavailable

18

BAND

B88-2811G-00-00

Unavailable

19

BAND, BATTERY

4J2-82131-01-00

Unavailable

20

FLAP

5JW-21621-10-00

Unavailable

21

GROMMET

90480-10M36-00

Unavailable

22

COVER

B95-8252U-00-00

Unavailable

23

COVER, REAR FENDER

B88-21651-00-P2

Unavailable

24

COVER, TAIL 1

B88-2471K-00-P2

Unavailable

25

COVER, TAIL 2

B88-2472K-00-P2

Unavailable

26

NUT, SPRING

90183-051A0-00

Unavailable

27

BOLT,HEX. SOCKET BUTTON

90111-05044-00

Unavailable

28

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

29

NUT, SPRING

90183-050A0-00

Unavailable

30

RIVET

90269-06081-00

$7.49

31

COVER, REAR FENDER 2

3P6-2163E-01-P1

Unavailable

32

COVER, REAR FENDER 2

3P6-2163E-11-P1

Unavailable

33

COVER, REAR FENDER 3

3P6-2163F-01-P1

Unavailable

34

COVER, REAR FENDER

1MC-2163A-01-00

Unavailable

35

RIVET

90269-06081-00

$7.49

36

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

Unavailable

37

TOOL KIT

B95-28100-01-00

Unavailable
