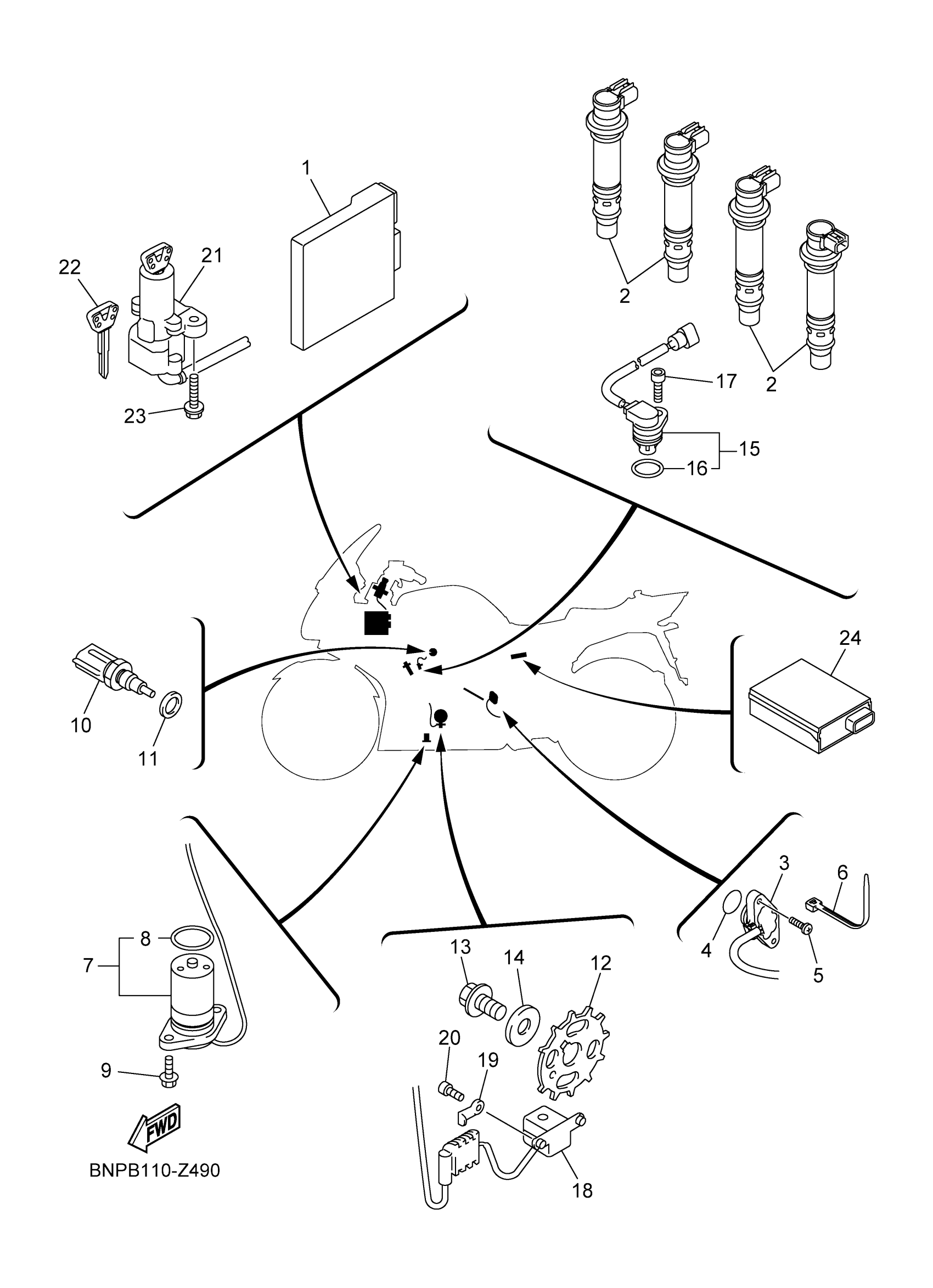

Yamaha FJR13ESRC (FJR1300ES CA) BNPC 2024 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNI

B96-8591A-81-00

$1,139.99

2

IGNITION COIL ASSY

1MC-82310-00-00

$124.99

3

NEUTRAL SWITCH ASSY

B88-82540-01-00

$73.99

4

O-RING

93210-21001-00

$5.60

5

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

6

BAND

1UA-82591-00-00

$4.78

7

OIL LEVEL GAUGE ASSY

1MC-85720-01-00

Unavailable

8

O-RING

4XV-8A8E0-00-00

Unavailable

9

BOLT, FLANGE

95022-06016-00

$3.62

10

THERMOSENSOR ASSY

5YP-85790-00-00

$64.99

11

WASHER, PLATE

90201-12790-00

$9.49

12

ROTOR

1MC-81673-00-00

Unavailable

13

BOLT, FLANGE

90105-10153-00

$5.60

14

WASHER, PLATE

90201-10065-00

$1.59

15

SENSOR, CAM POSITION

1MC-85896-01-00

Unavailable

16

O-RING

4D9-81168-00-00

Unavailable

17

BOLT,SOCKET

91317-06016-00

Unavailable

18

PICK-UP ASSY

3P6-81670-00-00

Unavailable

19

CLAMP

90465-08055-00

Unavailable

20

BOLT(47X)

91312-05012-00

Unavailable

21

MAIN SWITCH STEERING LOCK

B9R-82501-11-00

Unavailable

22

BLANK KEY

4BH-82511-09-00

Unavailable

23

BOLT

90109-08196-00

Unavailable

24

SUSPENSION CONTROL UNIT ASSY

B95-85902-01-00

Unavailable
