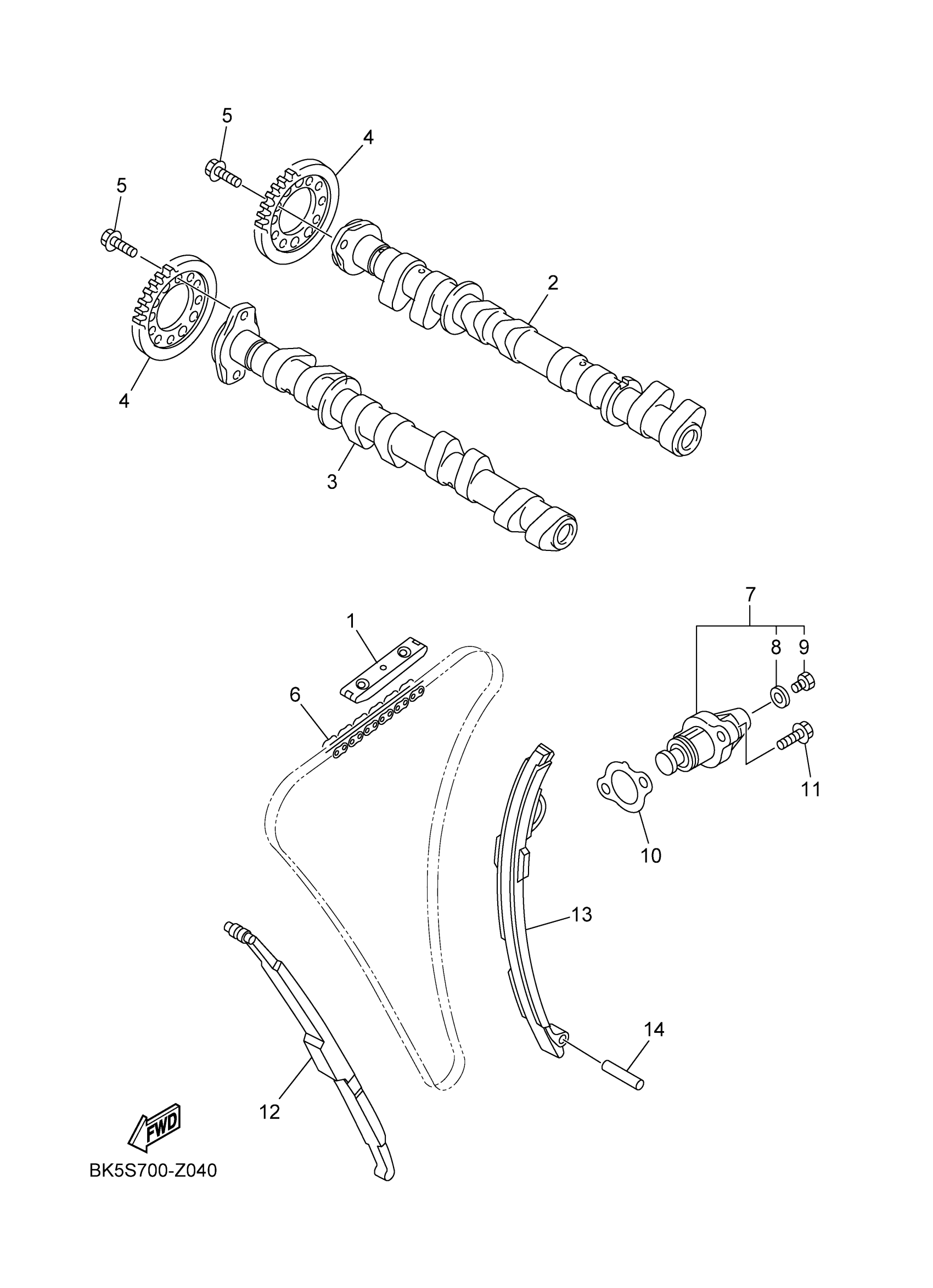

Yamaha FJR13ESRC (FJR1300ES CA) BNPC 2024 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

2

CAMSHAFT 1

1MC-12171-00-00

Unavailable

3

CAMSHAFT 2

1MC-12181-00-00

Unavailable

4

SPROCKET, CAM CHAIN

5JW-12176-10-00

Unavailable

5

BOLT, FLANGE

90105-07004-00

$5.60

6

CHAIN

94591-73136-00

Unavailable

7

TENSIONER ASSY, CAM CHAIN

1MC-12210-01-00

Unavailable

8

GASKET

5SL-12214-00-00

$7.99

9

BOLT

5EL-12228-00-00

$5.49

10

GASKET, TENSIONER CASE

5JW-12213-00-00

$7.99

11

BOLT, FLANGE

95022-06025-00

$3.62

12

DAMPER, CHAIN 1

5JW-12251-01-00

$62.99

13

DAMPER, CHAIN 2

5JW-12252-01-00

$82.99

14

PIN, DOWEL

93607-44002-00

$4.67
