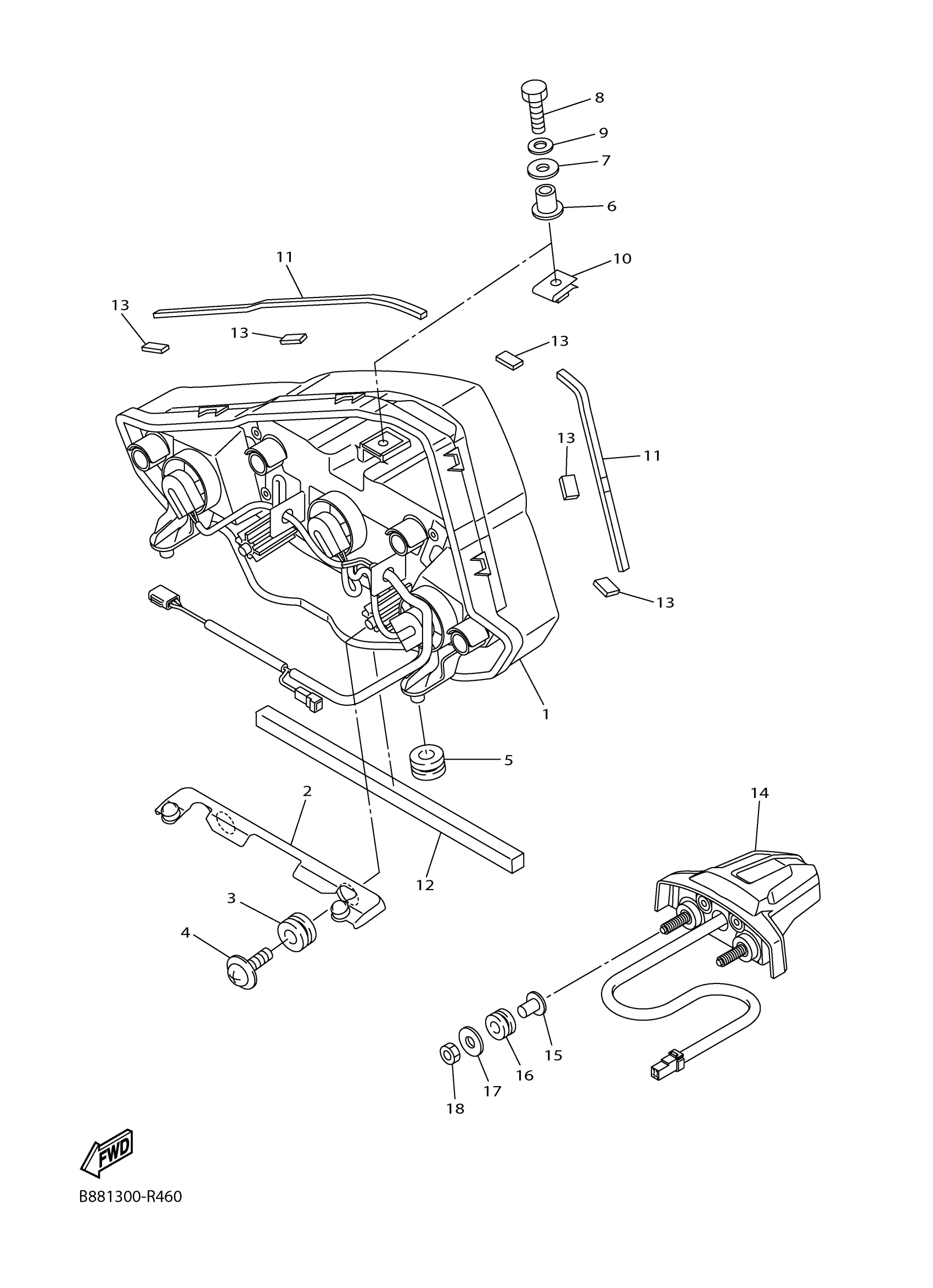

Yamaha FJR13ESPC (FJR1300ES CA) BNP7 2023 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

B88-84710-00-00

Unavailable

2

BRACKET, TAILLIGHT

3P6-2117E-00-00

Unavailable

3

GROMMET (4L0)

90480-18276-00

$8.49

4

SCREW, TAPPING

90164-05001-00

$8.49

5

DAMPER

4XV-83513-00-00

$7.99

6

COLLAR 437216330000

90387-07391-00

Unavailable

7

WASHER, PLATE

90201-06013-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

NUT, SPRING

90183-060A7-00

$8.49

11

DAMPER, PLATE

90520-05013-00

$9.49

12

DAMPER, SEAT

2D1-24737-00-00

$3.85

13

DAMPER 8

2C0-2847N-00-00

$6.99

14

LICENCE LIGHT UNIT ASSY

B88-84745-00-00

Unavailable

15

COLLAR

90387-05003-00

$5.60

16

GROMMET

90480-11008-00

Unavailable

17

WASHER, PLATE

90201-05043-00

Unavailable

18

NUT, U

95617-05100-00

Unavailable
