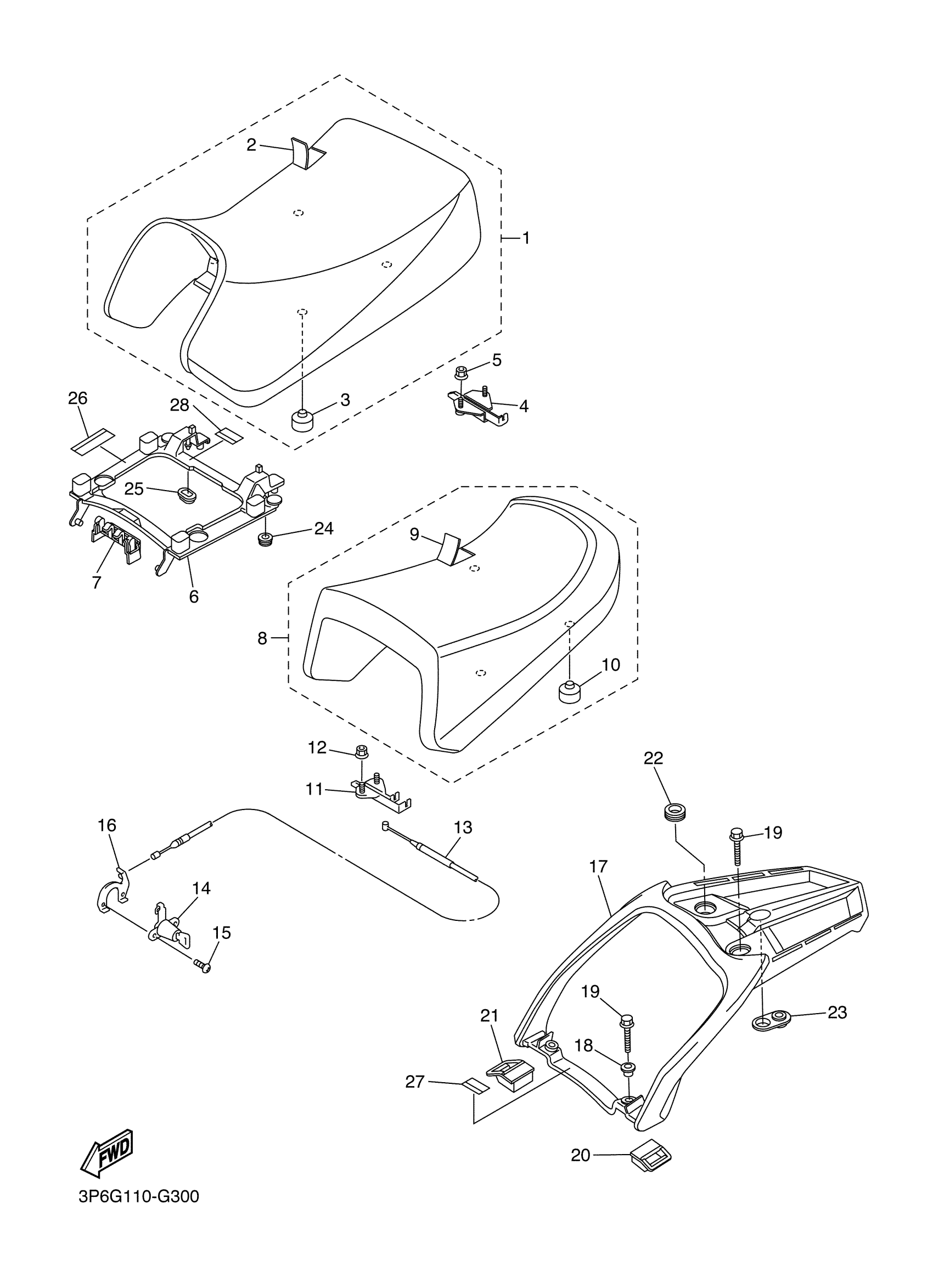

Yamaha FJR13ESPC (FJR1300ES CA) BNP7 2023 SEAT Diagram
#
Description
Price
2
SEAT COVER COMP.
1MC-2470F-01-00
Unavailable
7
STOPPER
3P6-24768-00-00
Unavailable
8
TANDEM SEAT ASSY
1MC-24750-01-00
Unavailable
16
STAY, LOCK
3P6-2117K-01-00
Unavailable
17
HANDLE, SEAT
3P6-24773-01-P2
Unavailable
18
COLLAR
90387-09012-00
Unavailable
19
BOLT, FLANGE
95022-08030-00
Unavailable
20
DAMPER, SEAT
3P6-24723-10-00
Unavailable
21
DAMPER, SEAT
3P6-24724-10-00
Unavailable
22
GROMMET (1H3)
90480-28191-00
Unavailable
23
DAMPER, SEAT
3P6-24747-00-00
Unavailable
24
GROMMET(4FU)
90480-13567-00
Unavailable
25
GROMMET(4DN)
90480-01558-00
Unavailable
26
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
27
LABEL, CAUTION
3TB-24877-A1-00
Unavailable
28
LABEL, CAUTION
4BR-24877-A1-00
Unavailable
