Description

Price

1

OIL COOLER ASSY

5JW-13470-10-00

Unavailable

2

O-RING

5JW-13473-00-00

$42.99

3

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

4

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

5

BOLT, UNION

90401-20012-00

$17.99

6

RELIEF VALVE ASSY

5PW-13490-00-00

Unavailable

7

O-RING (22U)

93210-15566-00

$7.49

8

COVER, STRAINER

5JW-13417-00-00

Unavailable

9

GASKET, STRAINER COVER

5JW-13414-01-00

$41.99

10

BOLT,SOCKET

91317-06025-00

$5.60

11

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

12

GASKET

214-11198-01-00

$3.17

13

CLAMP

90465-10041-00

Unavailable

14

CLAMP(51Y)

90465-08277-00

Unavailable

15

CLAMP

90462-08039-00

$1.96

16

BRACKET, 4-1

1MC-1464L-00-00

Unavailable

17

CHAIN

94581-85078-00

Unavailable

18

HOLDER

5JW-13898-01-00

Unavailable

19

BOLT,SOCKET

91317-06012-00

Unavailable

20

PIPE, OIL 1

2C0-13416-00-00

Unavailable

21

O-RING

93210-14003-00

Unavailable

22

BOLT,SOCKET

91317-06016-00

Unavailable

23

PIPE, DELIVERY 1

5JW-13161-00-00

Unavailable

24

BOLT,SOCKET

91317-06012-00

Unavailable

25

PIPE, DELIVERY 5

B88-1316E-00-00

Unavailable

26

O-RING (1J7)

93210-09350-00

Unavailable

27

O-RING(26H)

93210-06667-00

Unavailable

28

SPROCKET, DRIVE

5JW-13354-00-00

Unavailable

29

BEARING ,CYL-CAL R0LLER 20G NT

93315-23607-00

Unavailable

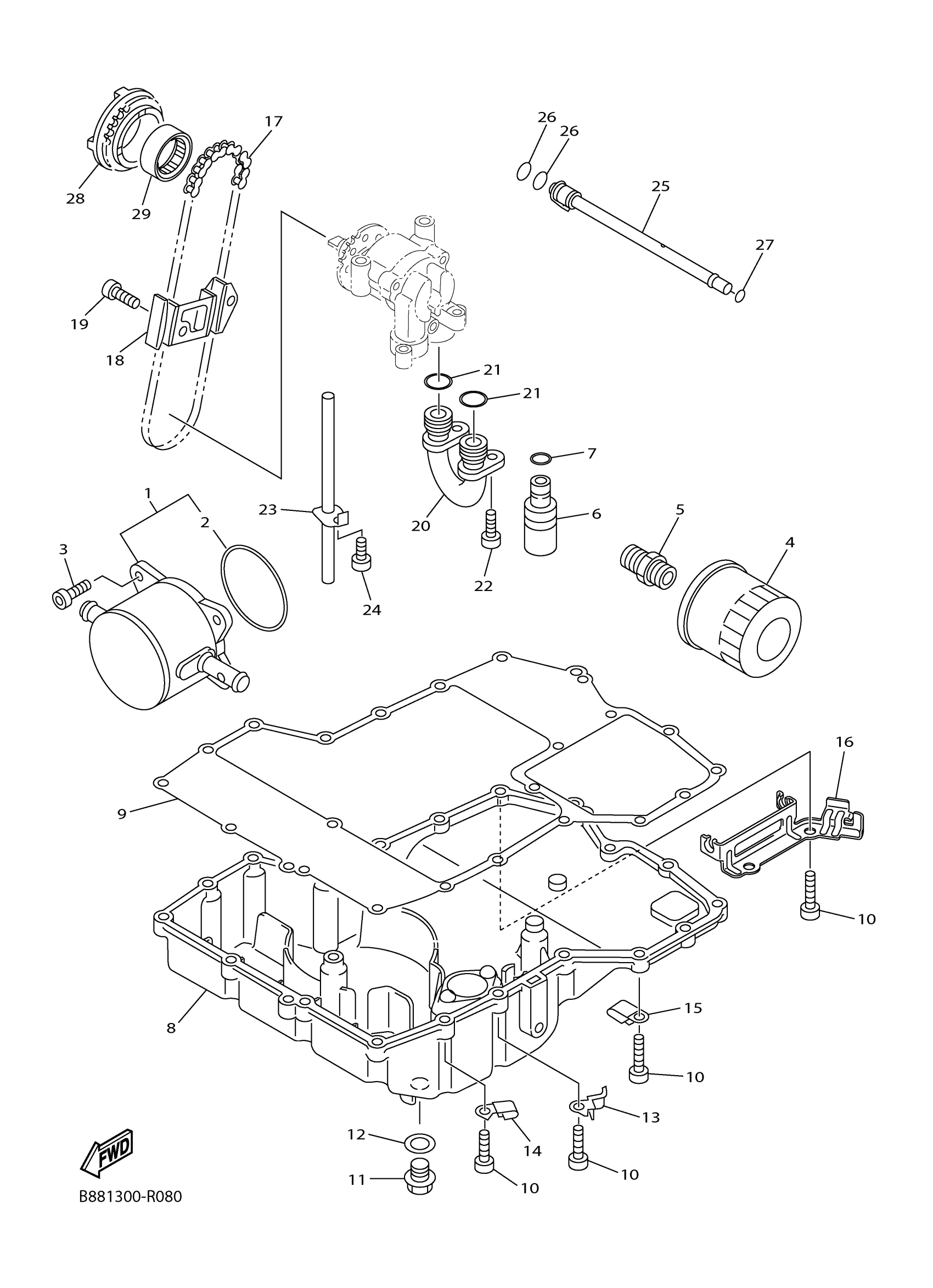

Yamaha FJR13ESPC (FJR1300ES CA) BNP7 2023 OIL COOLER Diagram

OIL COOLER ASSY

O-RING

BOLT, HEXAGON SOCKET HEAD

ELEMENT ASSY, OIL

BOLT, UNION

RELIEF VALVE ASSY

O-RING (22U)

COVER, STRAINER

GASKET, STRAINER COVER

BOLT,SOCKET

PLUG, STRAIGHT SCREW(3FA)

GASKET

CLAMP

CLAMP(51Y)

CLAMP

BRACKET, 4-1

CHAIN

HOLDER

BOLT,SOCKET

PIPE, OIL 1

O-RING

BOLT,SOCKET

PIPE, DELIVERY 1

BOLT,SOCKET

PIPE, DELIVERY 5

O-RING (1J7)

O-RING(26H)

SPROCKET, DRIVE

BEARING ,CYL-CAL R0LLER 20G NT
