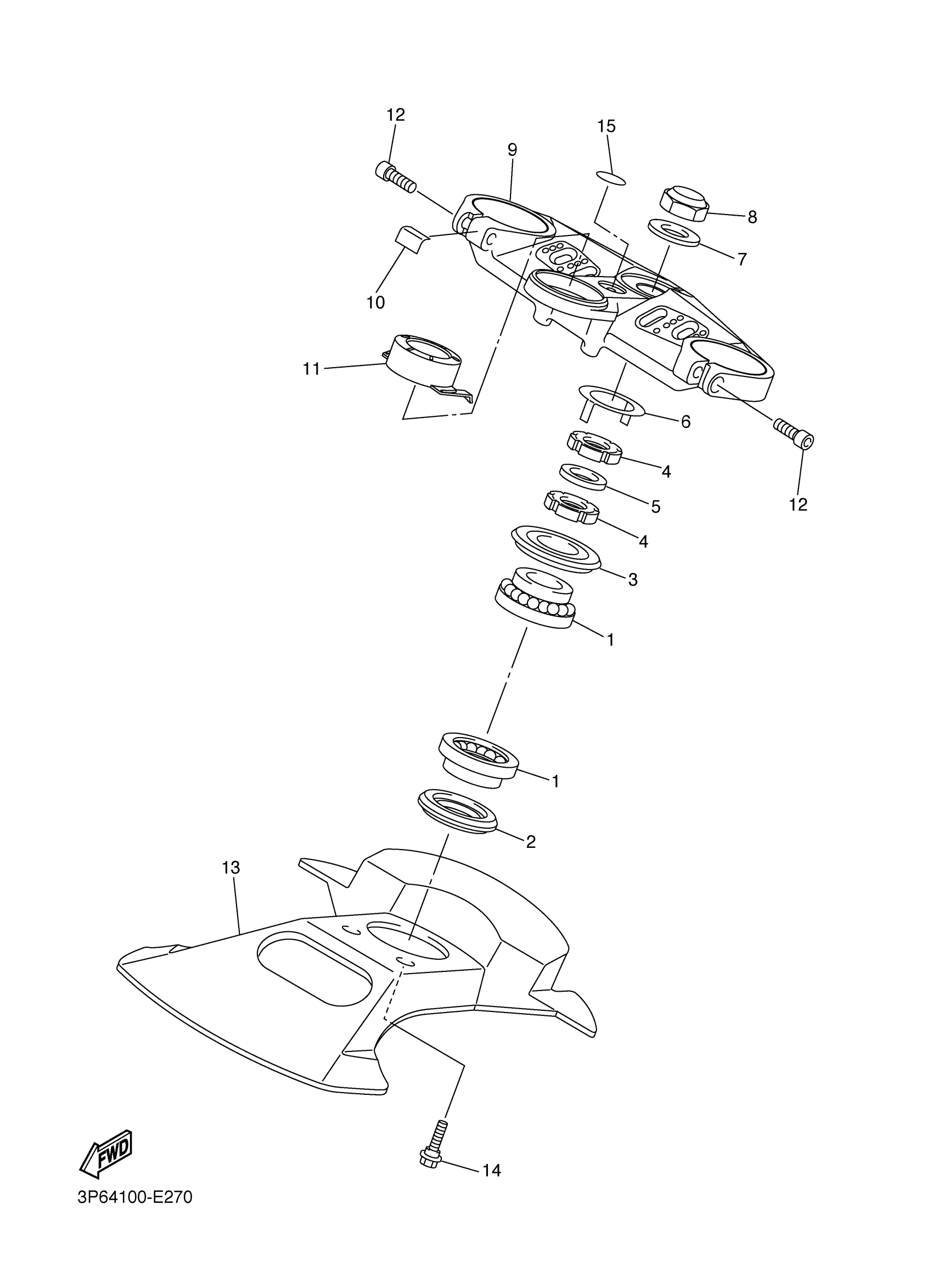

Yamaha FJR13ESNC (FJR1300ES CA) BNP2 2022 STEERING Diagram

#

Description
Price

1

BEARING(3FV)

93399-99932-00

$63.99

2

SEAL, STEERING

3FV-23462-00-00

$24.99

3

COVER, BALL RACE 1

4XV-23415-01-00

$24.99

4

NUT

90179-30691-00

$33.99

5

WASHER, PLATE

90202-30235-00

$8.49

6

WASHER, SPECIAL

4XV-23418-00-00

$17.49

7

WASHER, PLATE

90201-28017-00

$9.49

8

NUT

90179-28002-00

Unavailable

9

CROWN, HANDLE

1MD-23435-00-00

$223.99

10

PROTECTOR

3MA-27491-00-00

$8.99

11

COVER, MAIN SWITCH

3P6-82568-00-00

Unavailable

12

91312-08030

91312-08030-00

$8.49

13

COVER, STEERING

5VS-23818-01-00

Unavailable

14

BOLT

90109-06172-00

$7.49

15

EMBLEM

4XV-2341B-00-00

$28.99
