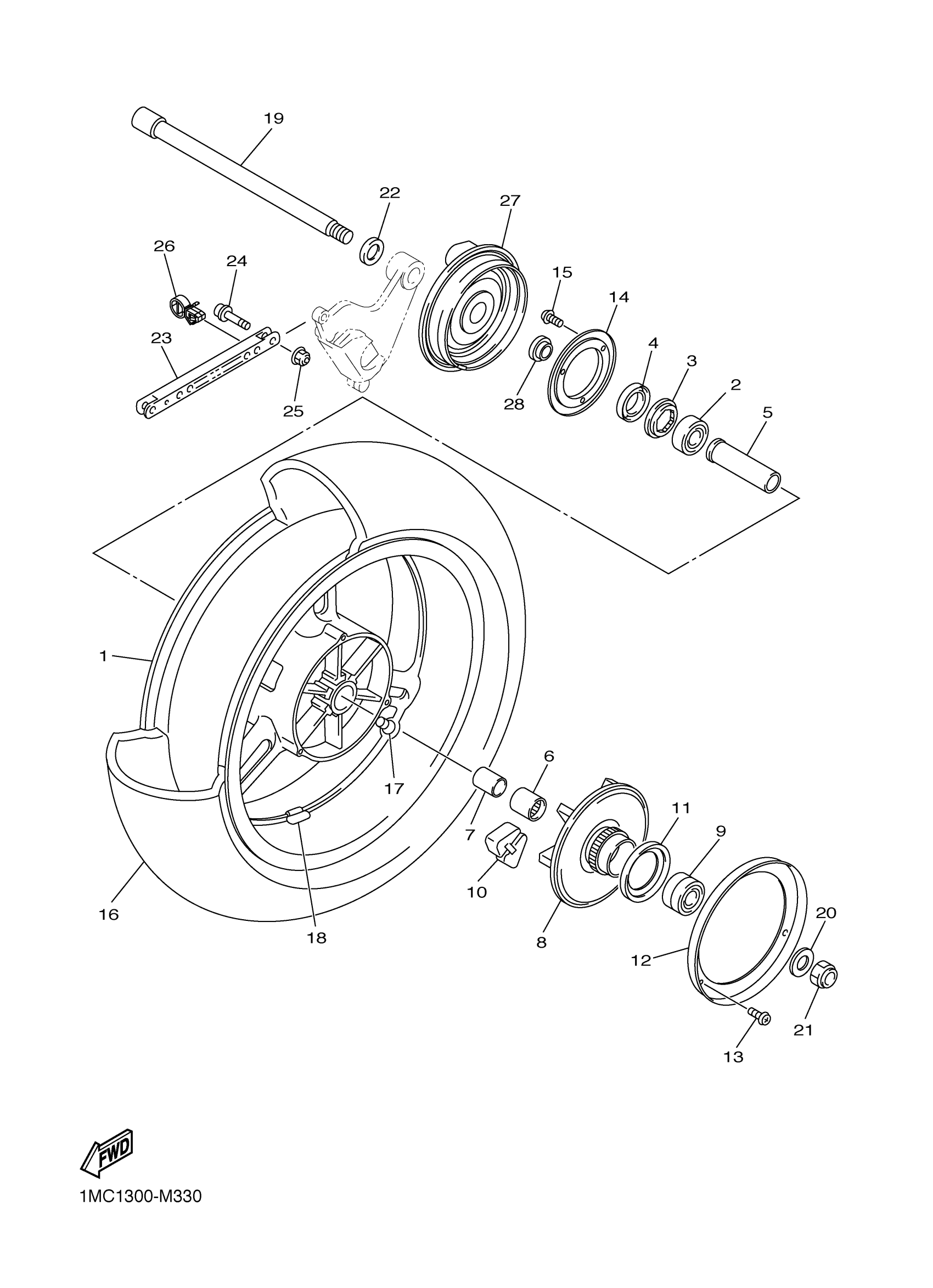

Yamaha FJR13ESNC (FJR1300ES CA) BNP2 2022 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

3P6-25338-01-98

$717.99

2

BEARING

93306-30446-00

$66.99

3

NUT, ADJUSTING

1MC-2538E-00-00

Unavailable

4

OIL SEAL

93106-40013-00

$14.99

5

SPACER, BEARING

3P6-25317-00-00

Unavailable

6

BEARING

93317-42592-00

$49.99

7

COLLAR, WHEEL

5JW-25383-00-00

$40.99

8

CLUTCH, HUB

5JW-25366-00-00

Unavailable

9

BEARING

93306-20480-00

$44.99

10

DAMPER

5JW-25364-00-00

$28.99

11

SEAL, HUB DUST

5JW-25319-00-00

$37.99

12

COVER, PLATE

5JW-25327-00-00

$73.99

13

SCREW

90149-05030-00

$8.49

14

ROTOR, SENSOR

3P6-2517G-00-00

$45.99

15

SCREW

90149-05030-00

$8.49

16

TIRE

94118-17086-00

Unavailable

17

VALVE, RIM(2GH)

93900-00030-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-10-00

Unavailable

18

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

19

AXLE, WHEEL

5JW-25381-10-00

Unavailable

20

WASHER, PLATE

90201-181U5-00

Unavailable

21

NUT, SELF-LOCKING

90185-18009-00

Unavailable

22

WASHER(3JP)

92903-20600-00

Unavailable

23

BAR, TENSION

5JW-25371-10-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-08106-00

Unavailable

25

NUT, SELF-LOCKING

95602-08200-00

Unavailable

26

CLAMP(4NX)

90464-23239-00

Unavailable

27

HOUSING, SENSOR REAR

1MC-2537A-00-00

Unavailable

28

COLLAR, WHEEL

1MC-25383-00-00

Unavailable
