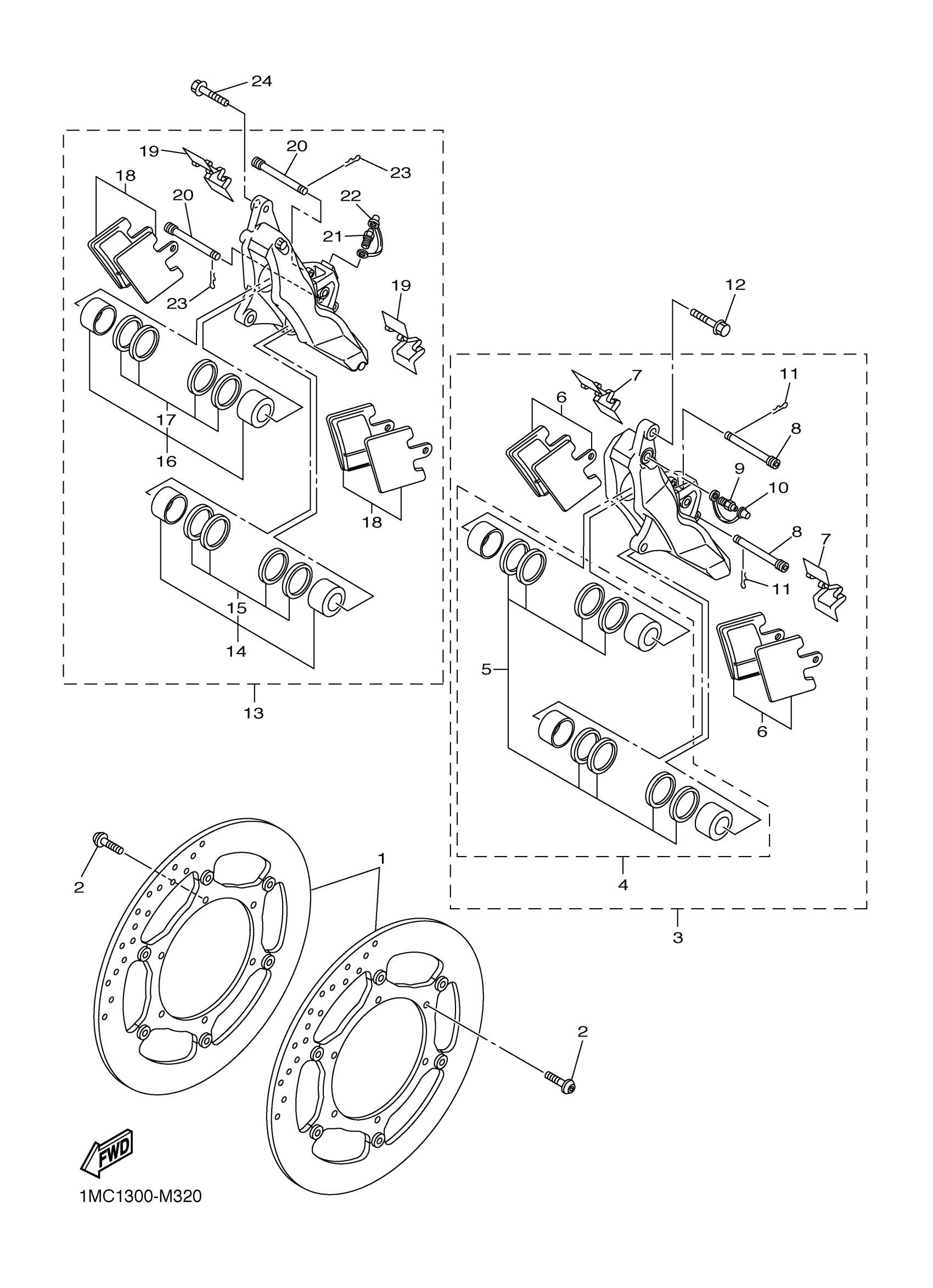

Yamaha FJR13ESNC (FJR1300ES CA) BNP2 2022 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

3P6-2581T-01-00

$346.99

2

BOLT

90109-06254-00

$8.49

3

CALIPER ASSY (LEFT)

1MC-2580T-01-00

$418.99

4

PISTON ASSY, CALIPER

3P6-25802-01-00

Unavailable

5

CALIPER SEAL KIT

3P6-W0047-00-00

Unavailable

6

BRAKE PAD KIT

3P6-W0045-00-00

$44.99

7

SUPPORT, PAD

3P6-25919-00-00

$59.99

8

PIN, PAD

3P6-25924-00-00

$63.99

9

SCREW, BLEED

8CR-25824-00-00

Unavailable

10

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

11

STOPPER

3P6-25925-00-00

Unavailable

12

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

13

CALIPER ASSY (RIGHT)

1MC-2580U-00-00

$509.99

14

PISTON ASSY, CALIPER

3P6-W0057-10-00

$166.99

15

CALIPER SEAL KIT

3P6-W0047-10-00

$30.99

16

PISTON ASSY, CALIPER

3P6-W0057-20-00

Unavailable

17

CALIPER SEAL KIT

3P6-W0047-20-00

Unavailable

18

BRAKE PAD KIT

3P6-W0045-00-00

$44.99

19

SUPPORT, PAD

3P6-25919-00-00

$59.99

20

PIN, PAD

3P6-25924-00-00

$63.99

21

SCREW, BLEED

8CR-25824-00-00

Unavailable

22

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

23

STOPPER

3P6-25925-00-00

Unavailable

24

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49
