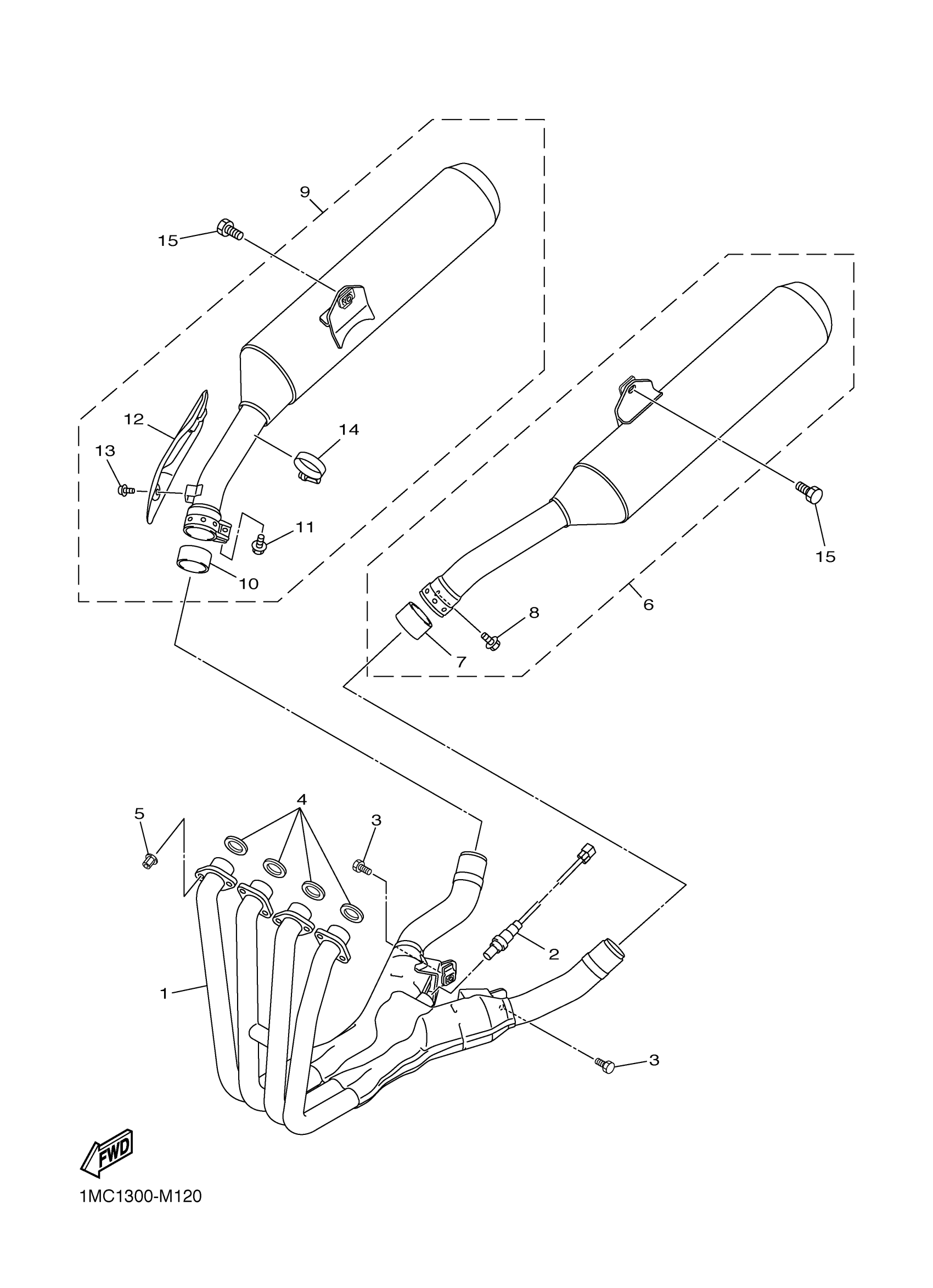

Yamaha FJR13ESNC (FJR1300ES CA) BNP2 2022 EXHAUST Diagram

#

Description

Price

1

EXHAUST PIPE COMP.

1MC-14602-00-00

$1,082.99

2

SENSOR, OXYGEN

4B5-8592A-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-08099-00

$8.49

4

GASKET, EXHAUST PIPE

4FM-14613-00-00

$12.99

5

NUT(4KM)

90179-08673-00

Unavailable

6

MUFFLER ASSY 1

1MC-14710-10-00

$888.99

7

GASKET, MUFFLER

3XW-14714-00-00

$37.99

8

BOLT, FLANGE

95814-08040-00

$4.72

9

MUFFLER ASSY 2

1MC-14720-10-00

$936.99

10

GASKET, MUFFLER

3XW-14714-00-00

$37.99

11

BOLT, FLANGE

95814-08040-00

$4.72

12

PROTECTOR ASSY 1

1MC-1471C-00-00

Unavailable

13

BOLT

90111-06060-00

$4.14

14

HOSE CLAMP ASSY

90450-45001-00

Unavailable

15

BOLT, FLANGE

95814-10040-00

$4.72
