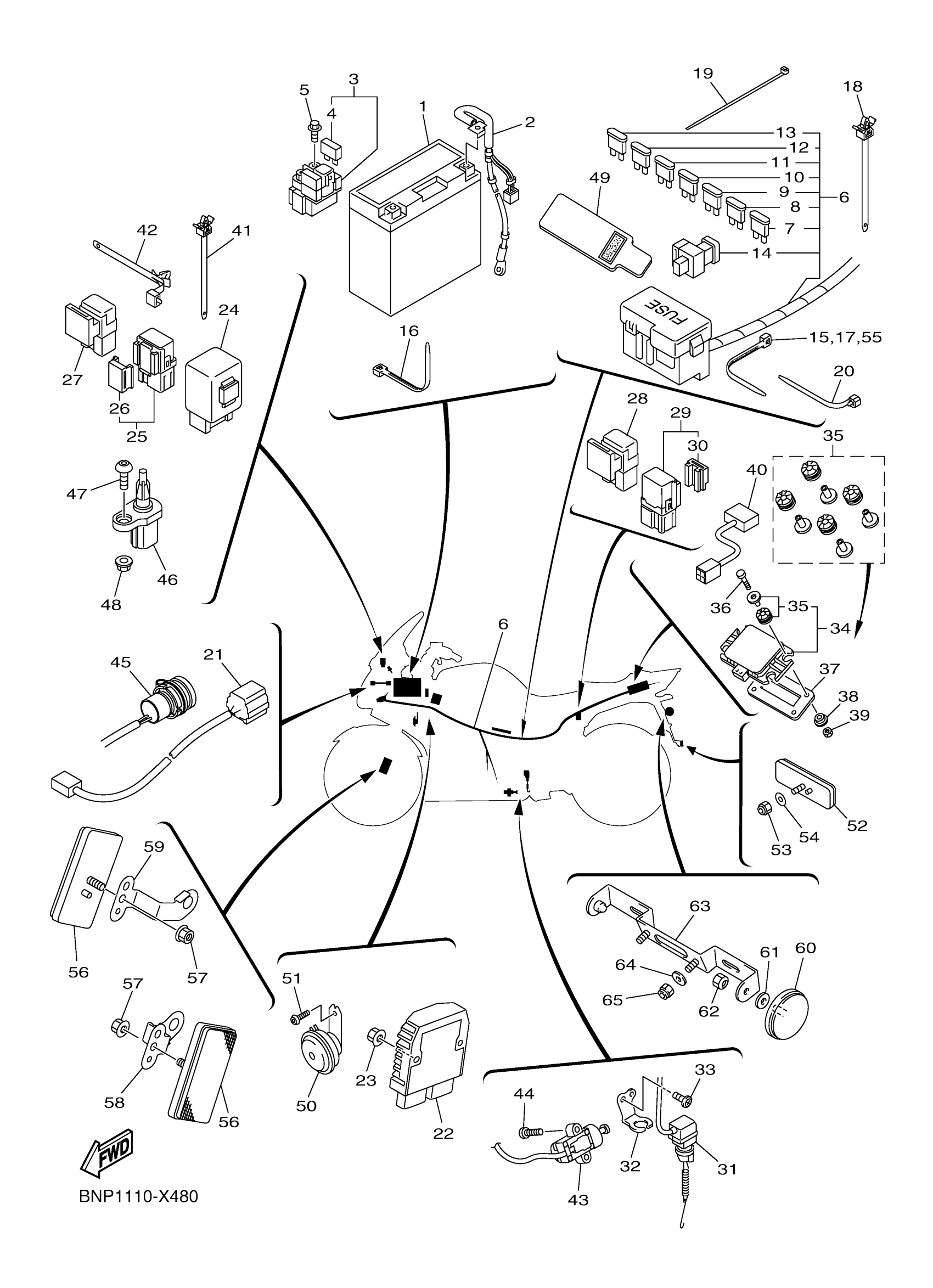

Yamaha FJR13ESNC (FJR1300ES CA) BNP2 2022 ELECTRICAL 2 Diagram

#

Description
Price

1

GT14B4 GS BATTERY - FA

GT1-4B400-00-00

Unavailable

2

WIRE, MINUS LEAD

1MC-82116-00-00

Unavailable

3

STARTER RELAY ASSY (RC19-076A)

3D7-81940-00-00

$98.99

4

FUSE (12V 30A)

1AE-82151-00-00

$7.99

5

BOLT, FLANGE

95022-06008-00

$8.49

6

WIRE HARNESS ASSY

B96-82590-11-00

$1,120.99

7

. FUSE (3A)

67F-82151-30-00

Unavailable

8

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

9

. FUSE (10A)

67F-82151-40-00

Unavailable

10

FUSE (15A)

67F-82151-50-00

Unavailable

11

FUSE

5JJ-82151-20-00

$7.99

12

FUSE

5JJ-82151-60-00

$7.99

13

FUSE

1MC-82151-00-00

$3.22

14

FUSE (50A)

5JW-82151-10-00

$16.49

15

BAND

1UA-82591-00-00

$4.78

16

CLAMP

90465-10098-00

Unavailable

17

BAND

1UA-82591-00-00

$4.78

18

CLAMP(2TV)

90464-10112-00

Unavailable

19

CLAMP

5Y9-12491-00-00

Unavailable

20

CLAMP(4FM)

90464-15195-00

Unavailable

21

WIRE, SUB LEAD

1MC-82509-00-00

Unavailable

22

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

23

NUT, U FLANGE

95604-06200-00

Unavailable

24

RELAY ASSY

5VK-81950-33-00

Unavailable

25

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

26

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

27

RELAY ASSY

5DM-81950-01-00

Unavailable

28

RELAY ASSY

5DM-81950-01-00

Unavailable

29

RELAY ASSY

1TP-81950-00-00

Unavailable

30

HOLDER,RELAY

5EA-81952-00-00

Unavailable

31

STOP SWITCH ASSY

1MC-82530-02-00

Unavailable

32

STAY, STOP SWITCH

1MC-2144G-00-00

Unavailable

33

SCREW, BIND

98902-05008-00

Unavailable

34

INERTIAL MEASURE, UNIT ASSY

B95-8593A-10-00

Unavailable

35

GROMMET AND COLLAR

2CR-W8A8D-01-00

Unavailable

36

BOLT

91312-04025-00

Unavailable

37

PLATE

B95-82388-00-00

Unavailable

38

COLLAR

90387-05058-00

Unavailable

39

NUT, U (7LY)

95617-04100-00

Unavailable

40

WIRE, SUB LEAD

B95-82509-00-00

Unavailable

41

CLAMP(2TV)

90464-10112-00

Unavailable

42

CLAMP(4KJ)

90464-20213-00

Unavailable

43

SWITCH, SIDE STAND

1MC-82566-02-00

Unavailable

44

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

45

TERMINAL COMP.

3P6-8254B-00-00

Unavailable

46

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

47

BOLT, BUTTON HEAD

92012-05014-00

Unavailable

48

NUT, FLANGE

95702-05500-00

Unavailable

49

PROTECTER, WIRE HA

2D1-82589-02-00

Unavailable

50

HORN

B88-83371-00-00

Unavailable

51

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

52

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

53

NUT, U

95617-05100-00

Unavailable

54

WASHER, PLATE

90201-05043-00

Unavailable

55

BAND

1UA-82591-00-00

$4.78

56

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

57

NUT, FLANGE

95702-05500-00

Unavailable

58

BRACKET, REFLECTOR 1

2PD-85112-00-00

Unavailable

59

BRACKET, REFLECTOR 2

2PD-85122-00-00

Unavailable

60

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

61

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

62

NUT, FLANGE

95702-05500-00

Unavailable

63

BRACKET, LICENSE

B88-84751-00-00

Unavailable

64

WASHER, PLATE

90201-06380-00

Unavailable

65

NUT, SELF-LOCKING

95617-06100-00

Unavailable
