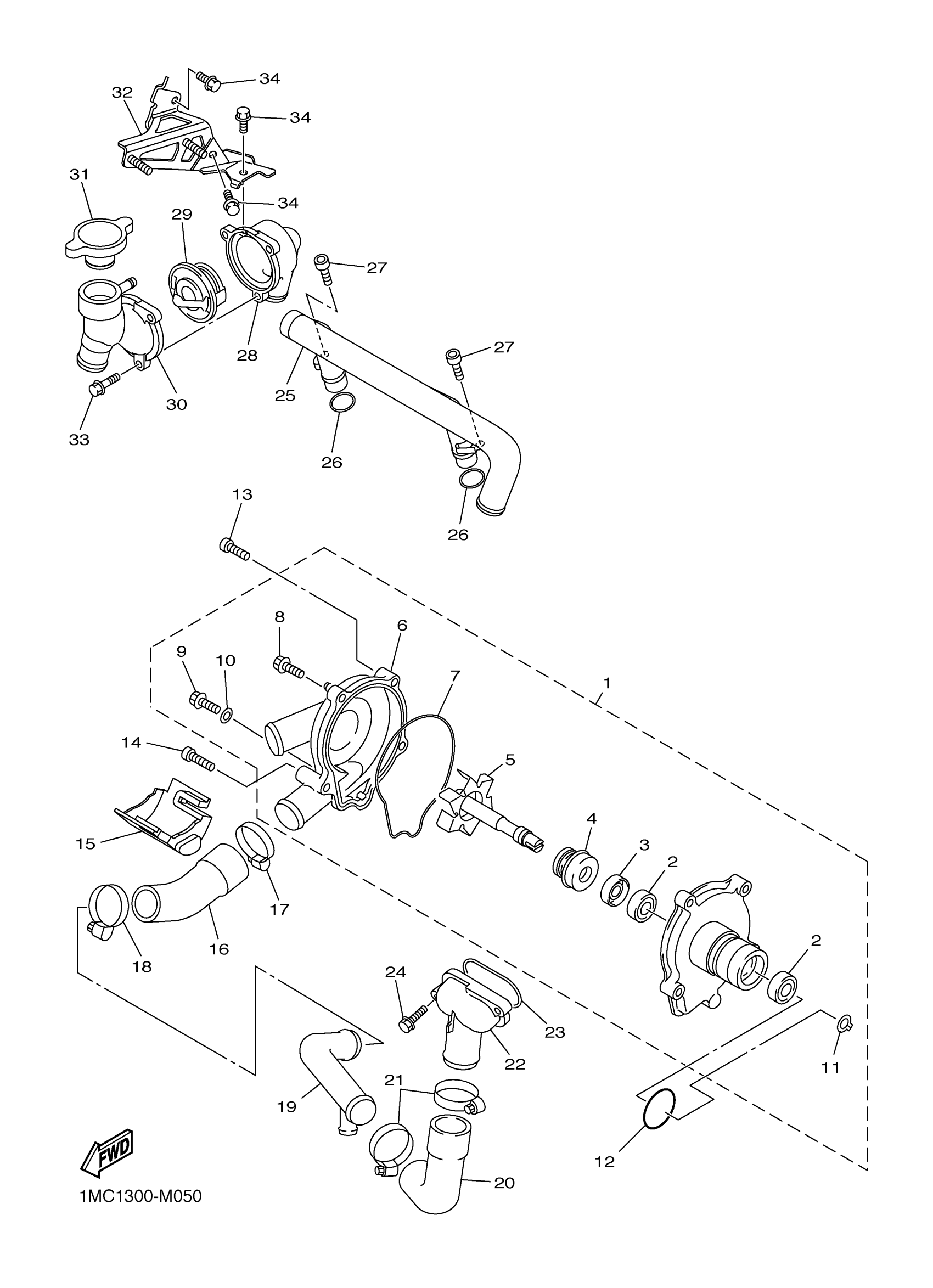

Yamaha FJR13ESMC (FJR1300ES CA) B96U 2021 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

1MC-12420-01-00

$296.99

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

3

OIL SEAL

93102-12372-00

$12.49

4

SEAL, MECHANICAL

5VK-12438-00-00

Unavailable

5

IMPELLER SHAFT ASSY

5JW-12450-00-00

$74.99

6

COVER, HOUSING

1MC-12422-00-00

$124.99

7

O-RING

5JW-12439-00-00

$13.49

8

BOLT, FLANGE

90105-06065-00

$3.81

9

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

10

GASKET 256113960000

90430-06014-00

Unavailable

11

CIRCLIP(10Y)

99009-12400-00

$3.59

12

O-RING (626)

93210-33133-00

$2.92

13

BOLT, HEXAGON SOCKET HEAD

90110-06336-00

Unavailable

14

BOLT, HEXAGON SOCKET HEAD

90110-06337-00

$2.55

15

STOPPER

1MC-12437-00-00

Unavailable

16

HOSE 1

5JW-12576-00-00

Unavailable

17

HOSE CLAMP ASSY

90450-38003-00

Unavailable

18

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

19

JOINT, HOSE 1

3P6-12581-00-00

Unavailable

20

HOSE 2

5JW-12577-00-00

Unavailable

21

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

22

JOINT 1

5JW-12469-00-00

Unavailable

23

O-RING(52H)

93210-47675-00

Unavailable

24

BOLT, FLANGE

95022-06020-00

Unavailable

25

PIPE 1

1MC-12481-00-00

Unavailable

26

O-RING (716)

93210-18417-00

Unavailable

27

BOLT(3MA)

91312-06016-00

Unavailable

28

HOUSING, THERMOSTAT

3P6-12417-00-00

Unavailable

29

THERMOSTAT ASSY

1MC-12410-01-00

Unavailable

30

SUPT, FILLER NECK

3P6-12591-00-00

Unavailable

31

CAP, RADIATOR

1B3-12462-00-00

Unavailable

32

BRACKET 1

1MC-1244E-00-00

Unavailable

33

BOLT, FLANGE

95022-06020-00

Unavailable

34

BOLT, FLANGE

95022-06012-00

Unavailable
