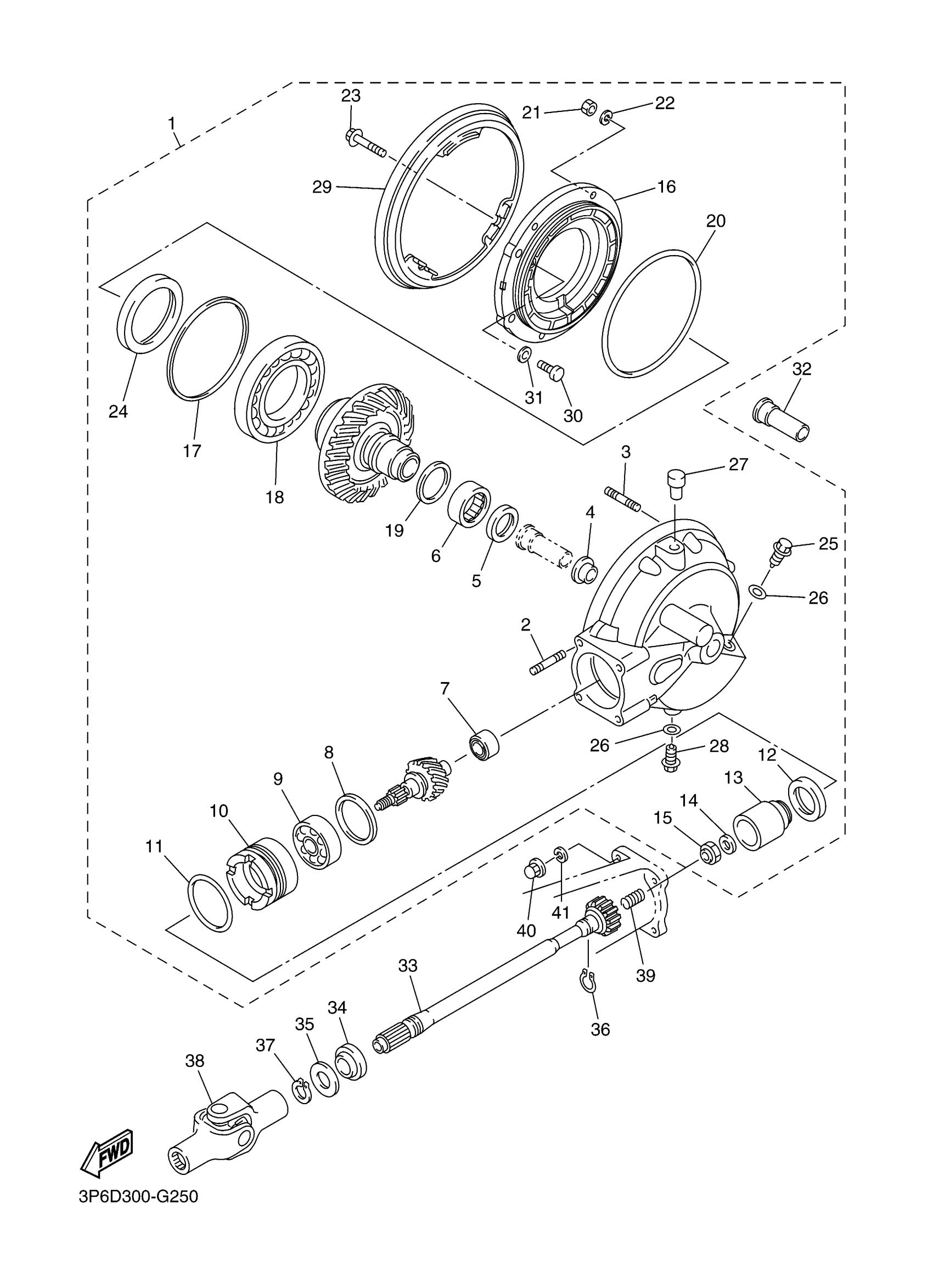

Yamaha FJR13ESMC (FJR1300ES CA) B96U 2021 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASSY

B88-W4612-00-00

Unavailable

2

BOLT, STUD

90116-10061-00

$7.49

3

BOLT, STUD

90116-08036-00

$3.28

4

COLLAR, GUIDE

5JW-46153-00-00

Unavailable

5

OIL SEAL (30X42X7-1J7)

93101-30084-00

$18.99

6

BRG,CYL-CAL ROLLER 80G KY

93311-43729-00

Unavailable

7

BEARING ASSY

2H7-46102-00-00

$58.99

8

SHIM, THRUST

1J7-17537-Y0-15

$3.43

8

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

8

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

$4.47

8

SHIM, THRUST

1J7-17537-Y0-45

Unavailable

8

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

$4.47

8

SHIM, THRUST

1J7-17537-Y0-60

Unavailable

9

BRG,R-B 6305RB1 62MM 245G KY

93306-30533-00

$137.99

10

RETAINER, BEARING

4H7-46125-00-00

$62.99

11

O-RING (4H7)

93210-60426-00

Unavailable

12

OIL SEAL

93101-38001-00

Unavailable

13

COUPLING, GEAR

3P6-46123-01-00

Unavailable

14

WASHER, PLATE(3JP)

90201-166R5-00

Unavailable

15

Nut

90179-16006-00

Unavailable

16

HOUSING, BEARING

3P6-46152-00-00

Unavailable

17

SHIM, RING GEAR (0.25T)

1J7-46117-Y0-25

Unavailable

17

SHIM, RING GEAR (0.30T)

1J7-46117-Y0-30

Unavailable

17

. SHIM, RING GEAR (035T)

1J7-46117-Y0-35

Unavailable

17

SHIM, RING GEAR (0.40T)

1J7-46117-Y0-40

Unavailable

17

SHIM, RING GEAR

1J7-46117-Y0-45

Unavailable

17

SHIM, RING GEAR (0.50T)

1J7-46117-Y0-50

Unavailable

18

BRG,R-B 16014C2 110MM 433G KY

93316-01403-00

Unavailable

19

WASHER, THRUST

22U-46118-00-12

Unavailable

19

WASHER, THRUST

22U-46118-00-13

Unavailable

19

WASHER, THRUST

22U-46118-00-14

Unavailable

19

WASHER, THRUST

22U-46118-00-15

Unavailable

19

WASHER, THRUST

22U-46118-00-16

Unavailable

19

WASHER, THRUST

22U-46118-00-17

Unavailable

19

WASHER, THRUST

22U-46118-00-18

Unavailable

19

WASHER, THRUST

22U-46118-00-19

Unavailable

19

WASHER, THRUST

22U-46118-00-20

Unavailable

19

WASHER, THRUST

22U-46118-00-21

Unavailable

20

O-RING(59V)

93211-54698-00

Unavailable

21

NUT(6L2)

95333-08600-00

Unavailable

22

WASHER, SPRING

90204-08001-00

Unavailable

23

BOLT, FLANGE(8AB)

95817-10050-00

Unavailable

24

OIL SEAL (4H7)

93102-70167-00

Unavailable

25

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

26

GASKET

214-11198-01-00

Unavailable

27

BREATHER COMP.

2H7-17590-00-00

Unavailable

28

PLUG, STRAIGHT SCREW

90340-14004-00

Unavailable

29

COVER, HOUSING

1FK-46154-00-00

Unavailable

30

STOPPER, RING GEAR

1FK-46156-00-00

Unavailable

31

SHIM, STOPPER

1FK-46157-00-15

Unavailable

31

. SHIM, STOPPER (T=020)

1FK-46157-00-20

Unavailable

32

COLLAR, GUIDE 1

5VS-4615A-00-00

Unavailable

33

SHAFT, DRIVE

3P6-46172-10-00

Unavailable

34

OIL SEAL

93108-43001-00

Unavailable

35

WASHER, PLATE

90201-23008-00

Unavailable

36

CIRCLIP (4H7)

93410-23056-00

Unavailable

37

CIRCLIP (537)

93410-22039-00

Unavailable

38

CROSS JOINT COMP.

5JW-46180-00-00

Unavailable

39

SPRING, COMPRESSION (2H7)

90501-16491-00

Unavailable

40

NUT, CROWN(2GG)

90176-10075-00

Unavailable

41

WASHER, PLATE

92990-10600-00

Unavailable
