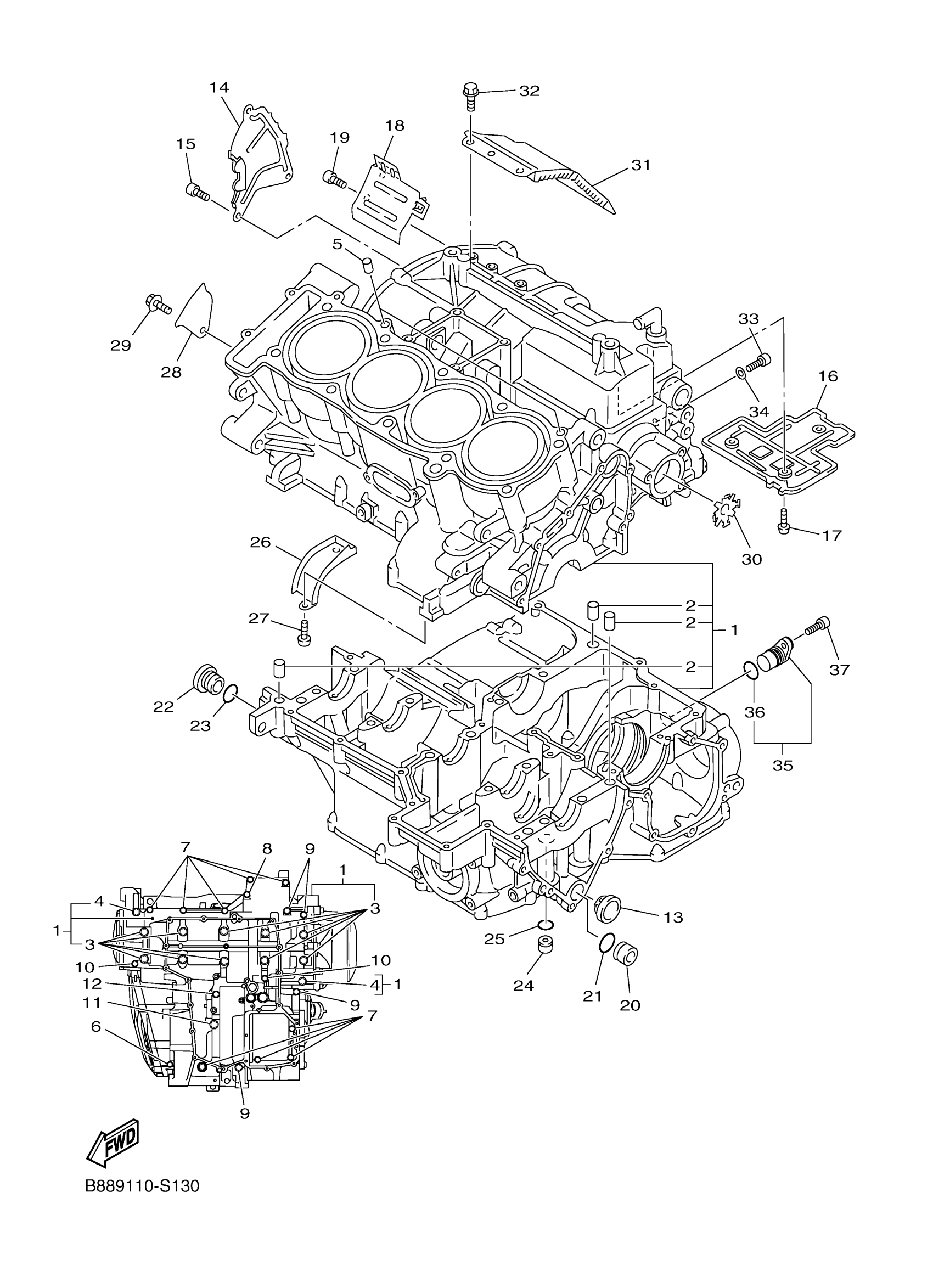

Yamaha FJR13ESMC (FJR1300ES CA) B96U 2021 CRANKCASE Diagram
#
Description
Price
4
. BOLT
90109-06168-00
Unavailable
9
BOLT, FLANGE
95812-06065-00
Unavailable
14
PLATE, BREATHER
5JW-11165-01-00
Unavailable
16
PLATE, BREATHER 2
B88-11145-00-00
Unavailable
17
SCREW
90149-06156-00
Unavailable
18
COVER, OIL PUMP
5JW-15412-00-00
Unavailable
20
PLUG
90338-20263-00
Unavailable
21
O-RING (1J7)
93210-16314-00
Unavailable
22
PLUG
4H7-15189-00-00
Unavailable
23
O-RING
93210-20802-00
Unavailable
24
PLUG
90338-16262-00
Unavailable
25
O-RING(3LD)
93210-12790-00
Unavailable
26
PLATE
5JW-15191-00-00
Unavailable
27
SCREW
90149-06156-00
Unavailable
28
PLUG
1MC-15189-00-00
Unavailable
29
BOLT, FLANGE
95812-06014-00
Unavailable
30
SHIM, KICK SHAFT
5JW-15645-00-00
Unavailable
31
PLATE
5JW-15113-00-00
Unavailable
32
BOLT, FLANGE
95812-06014-00
Unavailable
33
BOLT(70V)
97022-10014-00
Unavailable
34
GASKET (1KH,1.0T)
90430-10148-00
Unavailable
35
PLUG, BLIND
3P6-15399-00-00
Unavailable
36
O-RING (22U)
93210-15566-00
Unavailable
37
BOLT,SOCKET
91317-06016-00
Unavailable
