Description

Price

1

SCREW, TAPPING

97702-50016-00

$2.39

2

BODY, FRONT UNDER

1MC-2835J-00-P5

Unavailable

3

PANEL 1

1MC-2835U-00-P4

Unavailable

4

NUT, SPRING (6E5)

90183-05M02-00

$0.33

5

GROMMET

90480-13014-00

$8.49

6

NUT, SPRING

90183-050A6-00

$8.49

7

NUT, SPRING(1YT)

90183-05042-00

$5.60

8

BOLT

90109-06037-00

$7.49

9

HEAD

1MC-28386-00-00

$15.49

10

DAMPER

1MC-28371-00-00

$14.49

11

DAMPER 1

1MC-28415-00-00

$2.34

12

DAMPER 3

1MC-28425-00-00

$3.43

13

DAMPER, PLATE

90520-50004-00

$5.49

14

DAMPER, PLATE

90520-40002-00

$2.02

15

DAMPER, PLATE

90520-40003-00

$3.88

16

DAMPER 9

1MC-2847P-00-00

Unavailable

17

PANEL, INNER 1

3P6-2836K-00-00

Unavailable

18

SCREW, TAPPING

97702-50016-00

$2.39

19

RIVET

90269-06001-00

Unavailable

20

PANEL, INNER 3

1MC-2836M-00-00

Unavailable

21

SCREW, TAPPING

97702-50016-00

$2.39

22

VISOR, SIDE 1

1MC-2830C-00-P0

Unavailable

23

PLATE, SPRING

5PW-2177L-01-00

Unavailable

24

PLUG(1NL)

90338-07180-00

Unavailable

25

DAMPER, PLATE

90520-01003-00

Unavailable

26

BODY, FRONT UNDER

1MC-2835K-00-P5

Unavailable

27

PANEL 2

1MC-2835V-00-P4

Unavailable

28

NUT, SPRING (6E5)

90183-05M02-00

$0.33

29

GROMMET

90480-13014-00

$8.49

30

NUT, SPRING(1YT)

90183-05042-00

$5.60

31

NUT, SPRING

90183-050A6-00

$8.49

32

BOLT

90109-06037-00

$7.49

33

HEAD

1MC-28386-00-00

$15.49

34

DAMPER

1MC-28372-00-00

Unavailable

35

DAMPER 2

1MC-28416-00-00

Unavailable

36

DAMPER 4

1MC-28435-00-00

Unavailable

37

DAMPER, PLATE

90520-30006-00

Unavailable

38

DAMPER, PLATE

90520-50004-00

$5.49

39

DAMPER, PLATE

90520-40002-00

$2.02

40

DAMPER 10

1MC-2847R-00-00

Unavailable

41

BRACKET 3

1MC-2836F-00-00

Unavailable

42

BOLT, FLANGE

95817-06012-00

Unavailable

43

CLAMP(1GJ)

90464-54086-00

Unavailable

44

PANEL, INNER 2

3P6-2836L-00-00

Unavailable

45

SCREW, TAPPING

97702-50016-00

$2.39

46

RIVET

90269-06001-00

Unavailable

47

COVER, UNDER

3P6-28385-11-PE

Unavailable

48

SCREW, TAPPING

97702-50016-00

$2.39

49

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

50

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

51

VISOR, SIDE 2

1MC-2830D-00-P0

Unavailable

52

PLATE, SPRING

5PW-2177L-01-00

Unavailable

53

PLUG(1NL)

90338-07180-00

Unavailable

54

DAMPER, PLATE

90520-01003-00

Unavailable

55

NUT, SPRING

90183-050A6-00

$8.49

56

RIVET

90269-06008-00

Unavailable

57

PANEL, INNER 4

1MC-2836N-01-00

Unavailable

58

NUT, SPRING

90183-050A6-00

$8.49

59

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

60

RIVET

90269-06008-00

Unavailable

61

RIVET

90269-06008-00

Unavailable

62

EMBLEM 3D

1MC-2839B-00-00

Unavailable

63

FRONT FLASHER LIGHT ASSY 1

1MC-83310-10-00

Unavailable

64

FRONT FLASHER LIGHT ASSY 2

1MC-83320-10-00

Unavailable

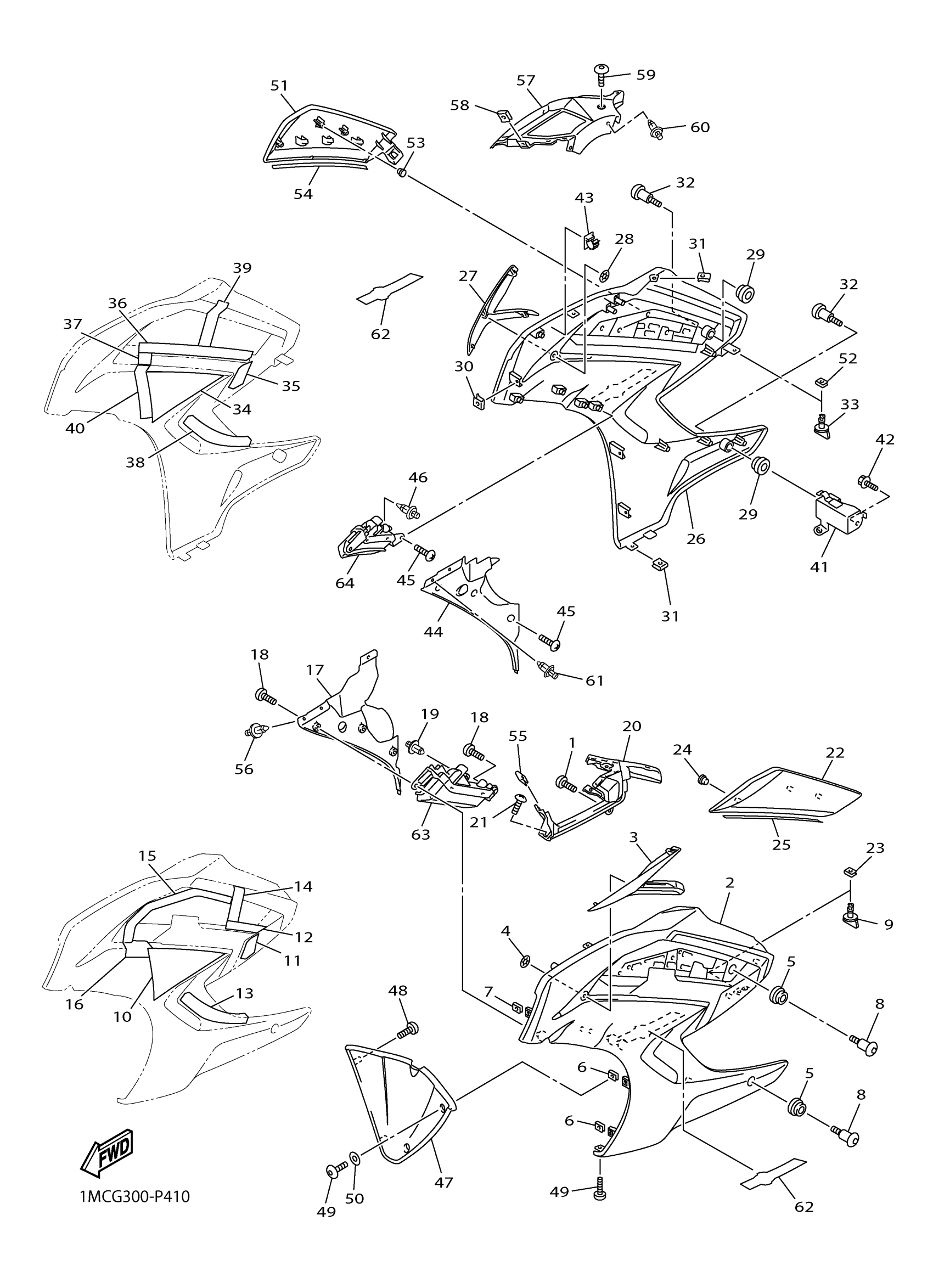

Yamaha FJR13ESMC (FJR1300ES CA) B96U 2021 COWLING 2 Diagram

SCREW, TAPPING

BODY, FRONT UNDER

PANEL 1

NUT, SPRING (6E5)

GROMMET

NUT, SPRING

NUT, SPRING(1YT)

BOLT

HEAD

DAMPER

DAMPER 1

DAMPER 3

DAMPER, PLATE

DAMPER, PLATE

DAMPER, PLATE

DAMPER 9

PANEL, INNER 1

SCREW, TAPPING

RIVET

PANEL, INNER 3

SCREW, TAPPING

VISOR, SIDE 1

PLATE, SPRING

PLUG(1NL)

DAMPER, PLATE

BODY, FRONT UNDER

PANEL 2

NUT, SPRING (6E5)

GROMMET

NUT, SPRING(1YT)

NUT, SPRING

BOLT

HEAD

DAMPER

DAMPER 2

DAMPER 4

DAMPER, PLATE

DAMPER, PLATE

DAMPER, PLATE

DAMPER 10

BRACKET 3

BOLT, FLANGE

CLAMP(1GJ)

PANEL, INNER 2

SCREW, TAPPING

RIVET

COVER, UNDER

SCREW, TAPPING

BOLT,HEX. SOCKET BUTTON

WASHER, PLATE(1KT)

VISOR, SIDE 2

PLATE, SPRING

PLUG(1NL)

DAMPER, PLATE

NUT, SPRING

RIVET

PANEL, INNER 4

NUT, SPRING

BOLT,HEX. SOCKET BUTTON

RIVET

RIVET

EMBLEM 3D

FRONT FLASHER LIGHT ASSY 1

FRONT FLASHER LIGHT ASSY 2
