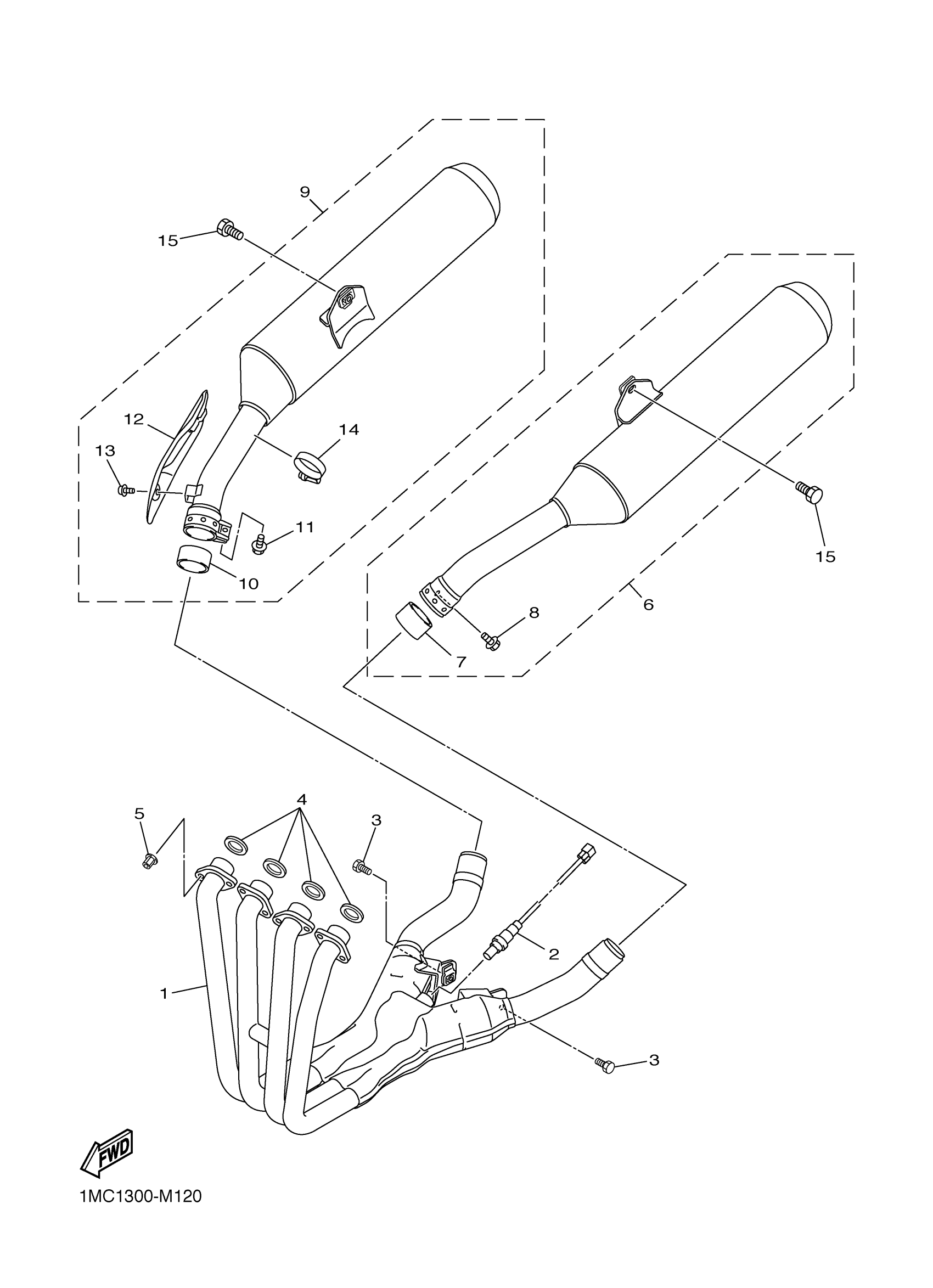

Yamaha FJR13ESLC (FJR1300ES CA) B96N 2020 EXHAUST Diagram

#

Description

Price

1

EXHAUST PIPE COMP.

1MC-14602-00-00

$942.99

2

SENSOR, OXYGEN

4B5-8592A-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-08099-00

$6.08

4

GASKET, EXHAUST PIPE

4FM-14613-00-00

$8.69

5

NUT(4KM)

90179-08673-00

Unavailable

6

MUFFLER ASSY 1

1MC-14710-10-00

$921.71

7

GASKET, MUFFLER

3XW-14714-00-00

$30.08

8

BOLT, FLANGE

95814-08040-00

$2.93

9

MUFFLER ASSY 2

1MC-14720-10-00

$1,011.99

10

GASKET, MUFFLER

3XW-14714-00-00

$30.08

11

BOLT, FLANGE

95814-08040-00

$2.93

12

PROTECTOR ASSY 1

1MC-1471C-00-00

Unavailable

13

BOLT

90111-06060-00

$3.59

14

HOSE CLAMP ASSY

90450-45001-00

Unavailable

15

BOLT, FLANGE

95814-10040-00

$3.43
