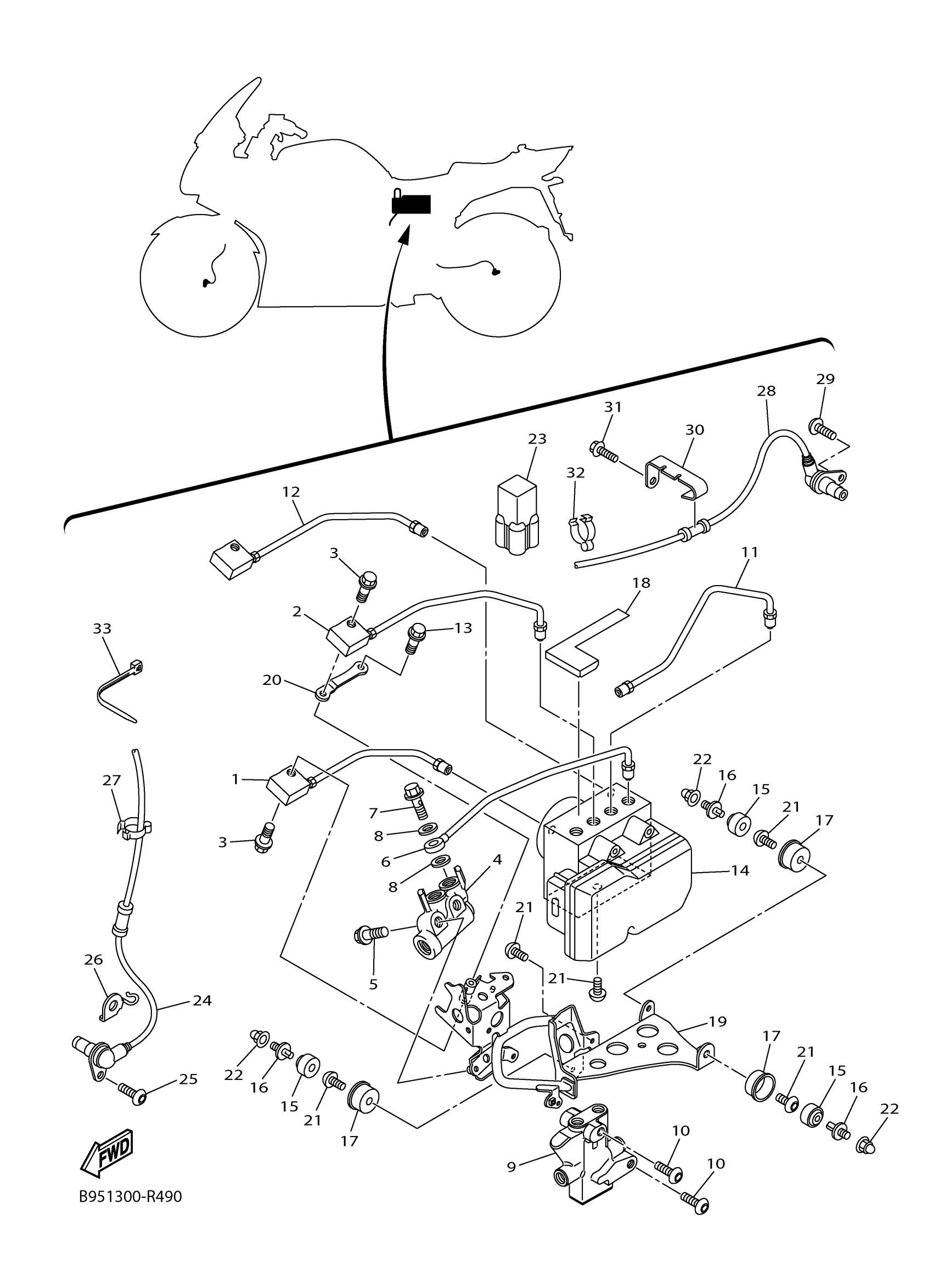

Yamaha FJR13ESLC (FJR1300ES CA) B96N 2020 ELECTRICAL 3 Diagram

#

Description
Price

1

PIPE, BRAKE

3P6-25871-10-00

Unavailable

2

PIPE, BRAKE 2

3P6-25882-20-00

Unavailable

3

BOLT, FLANGE

95022-06025-00

$3.62

4

METERING VALVE ASSY

3P6-25940-00-00

Unavailable

5

BOLT, FLANGE

95817-06030-00

$4.29

6

PIPE, BRAKE 4

3P6-2588A-10-00

Unavailable

7

BOLT, UNION

90401-10020-00

$9.49

8

GASKET

90430-10005-00

$9.49

9

VALVE, PROPORTIONING

3P6-25884-00-00

$201.99

10

BOLT, BUTTON HEAD

92012-06040-00

$3.28

11

PIPE, BRAKE 5

3P6-2588B-01-00

Unavailable

12

PIPE, BRAKE 3

3P6-25883-20-00

Unavailable

13

BOLT, FLANGE

95022-06025-00

$3.62

14

HYDRAULIC UNIT ASSY

1MC-85930-08-00

Unavailable

15

DAMPER

5CG-85113-00-00

Unavailable

16

BOLT

5CG-2535E-00-00

Unavailable

17

CAP, DAMPER

3P6-85916-00-00

Unavailable

18

PROTECTOR

3P6-2117G-00-00

Unavailable

19

BRACKET 1

1MD-2175T-00-00

Unavailable

20

STAY, SIDE COVER 1

3P6-2172E-00-00

Unavailable

21

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

22

NUT, CROWN

90176-08005-00

Unavailable

23

CONNECTOR

3YA-82378-00-00

Unavailable

24

WHEEL SENSOR ASSY, FRONT

1MD-85970-01-00

Unavailable

25

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

26

HOLDER, CABLE

1MD-23317-00-00

Unavailable

27

CLAMP

90464-14003-00

Unavailable

28

WHEEL SENSOR ASSY, REAR

3P6-85980-11-00

Unavailable

29

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

30

HOLDER, WIRE

3P6-86159-00-00

Unavailable

31

BOLT, FLANGE

90105-05014-00

Unavailable

32

CLAMP

90464-12013-00

Unavailable

33

CLAMP

90465-10098-00

Unavailable
