- FJR13ESJL (FJR1300ES) B96D 2018
RADIATOR HOSE

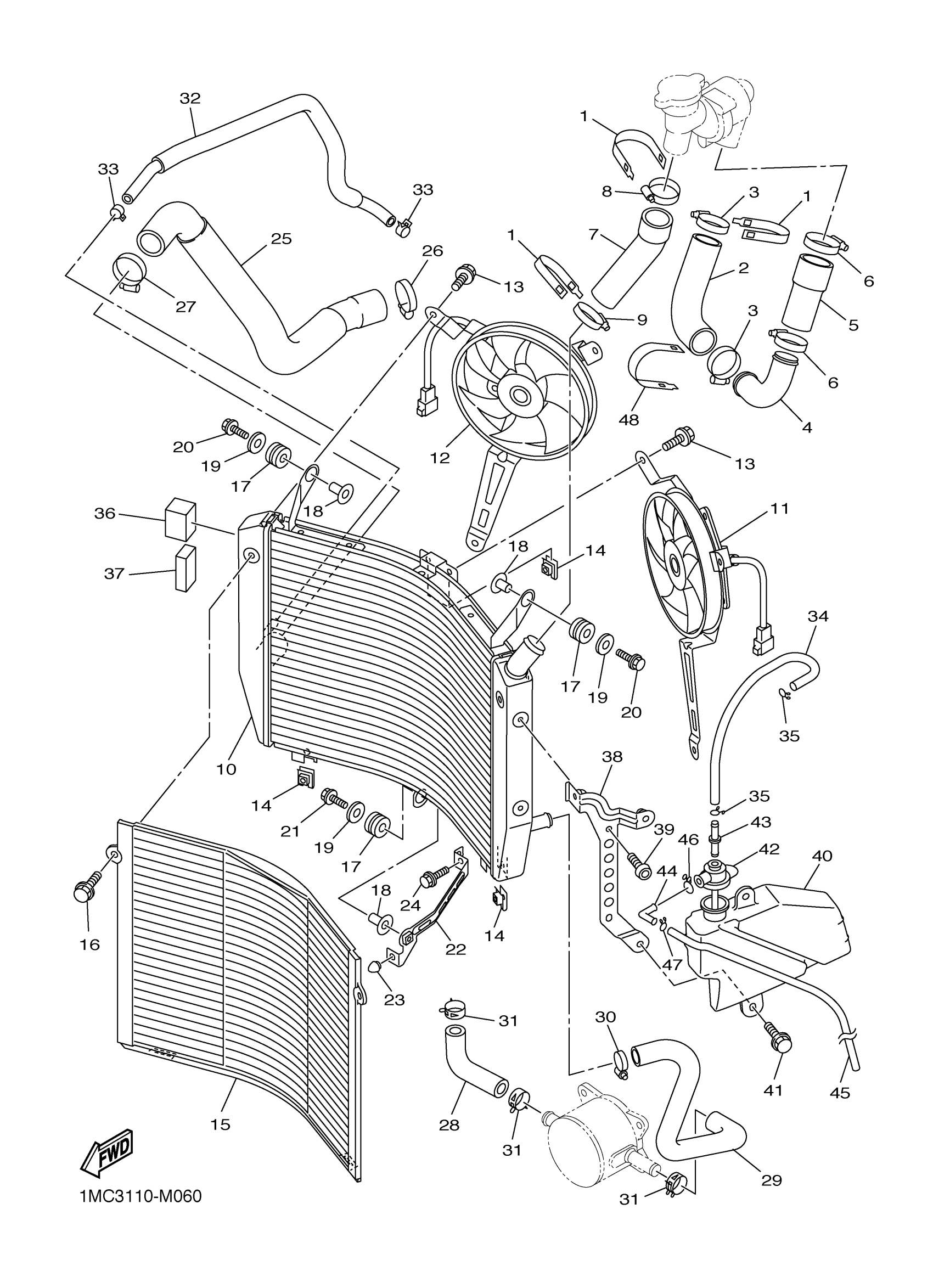

Yamaha FJR13ESJL (FJR1300ES) B96D 2018 RADIATOR HOSE Diagram
#
11
BLOWER ASSY
1MC-12405-02-00
Unavailable
16
BOLT, WITH WASHER
90119-06155-00
Unavailable
17
GROMMET (29L)
90480-15363-00
Unavailable
18
COLLAR
90387-06039-00
Unavailable
19
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
20
95822-06030
95822-06030-00
Unavailable
21
BOLT, FLANGE
95822-06025-00
Unavailable
22
STAY, RADIATOR
3P6-12464-00-00
Unavailable
23
DAMPER 2
5A8-21639-00-00
Unavailable
24
BOLT, FLANGE
95817-06012-00
Unavailable
25
HOSE 6
3P6-12589-00-00
Unavailable
26
HOSE CLAMP ASSY
90450-38003-00
Unavailable
28
HOSE 7
5JW-12551-00-00
Unavailable
29
HOSE 8
3P6-12552-00-00
Unavailable
30
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
31
CLIP
90467-200A0-00
Unavailable
32
HOSE 1
3P6-1243A-00-00
Unavailable
33
CLIP
90467-10038-00
Unavailable
34
HOSE, 4
3P6-1244G-00-00
Unavailable
35
CLIP (16G)
90467-08021-00
Unavailable
36
DAMPER, PLATE
90520-20002-00
Unavailable
37
DAMPER, PLATE
90520-10020-00
Unavailable
38
BRACKET, RECOVERY TANK
3P6-21873-10-00
Unavailable
39
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
40
TANK, RECOVERY
3P6-21871-00-00
Unavailable
41
BOLT, WITH WASHER
90119-06155-00
Unavailable
42
CAP
3P6-21875-00-00
Unavailable
43
JOINT
4XY-14568-00-00
Unavailable
44
ELBOW
26H-21828-00-00
Unavailable
45
PIPE 1
3P6-21816-01-00
Unavailable
46
CLIP
90467-10M04-00
Unavailable
47
CLIP 101235600
90467-08003-00
Unavailable
