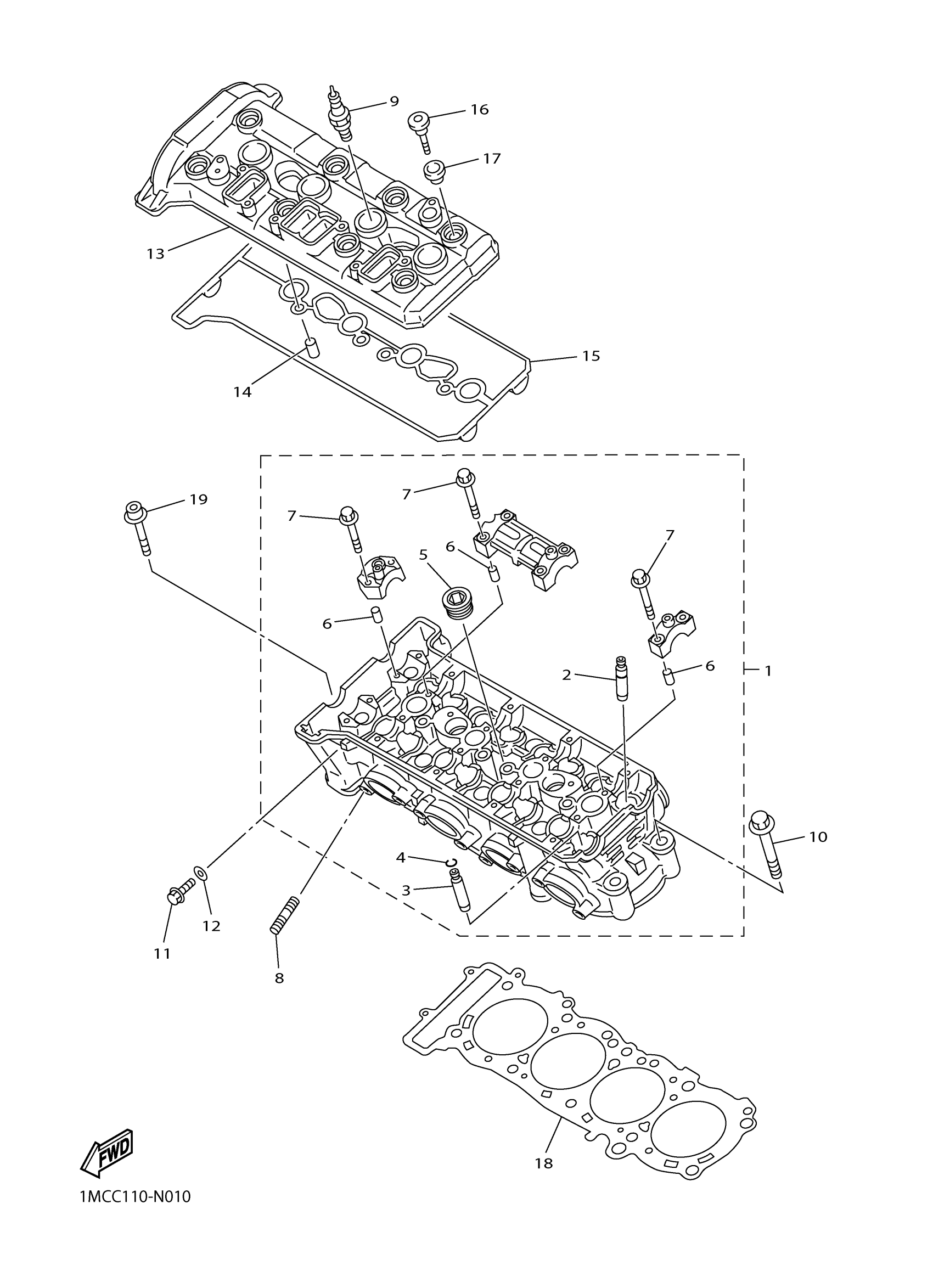

Yamaha FJR13ESJL (FJR1300ES) B96D 2018 CYLINDER Diagram

CYLINDER HEAD ASSY

1MC-11102-00-00

Unavailable

GUIDE, INTAKE VALVE

5JW-11133-10-00

$75.99

GUIDE, VALVE 2

3P6-11134-10-00

Unavailable

CIRCLIP(1AA)

93440-09141-00

$2.29

PLUG, STRAIGHT SCREW

90340-27129-00

$5.60

PIN, DOWEL(3XW)

91808-16023-00

$8.49

. BOLT, FLANGE

90105-06026-00

Unavailable

BOLT, STUD

95612-08620-00

$7.49

PLUG, SPARK (NGK CPR8EA)

CPR-8EA90-00-00

Unavailable

BOLT, WITH WASHER

90119-10004-00

$12.49

BOLT, FLANGE

95022-08012-00

$12.49

GASKET

90430-08119-00

$6.62

COVER, CYLINDER HEAD 1

1MC-11191-00-00

$240.99

PIN, DOWEL

91810-20001-00

$2.34

GASKET, HEAD COVER 1

1MC-11193-00-00

$49.99

BOLT(4BP)

90109-066F0-00

Unavailable

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

GASKET, CYLINDER HEAD 1

5JW-11181-10-00

Unavailable

BOLT, HEXAGON SOCKET HEAD

90110-06385-00

Unavailable
