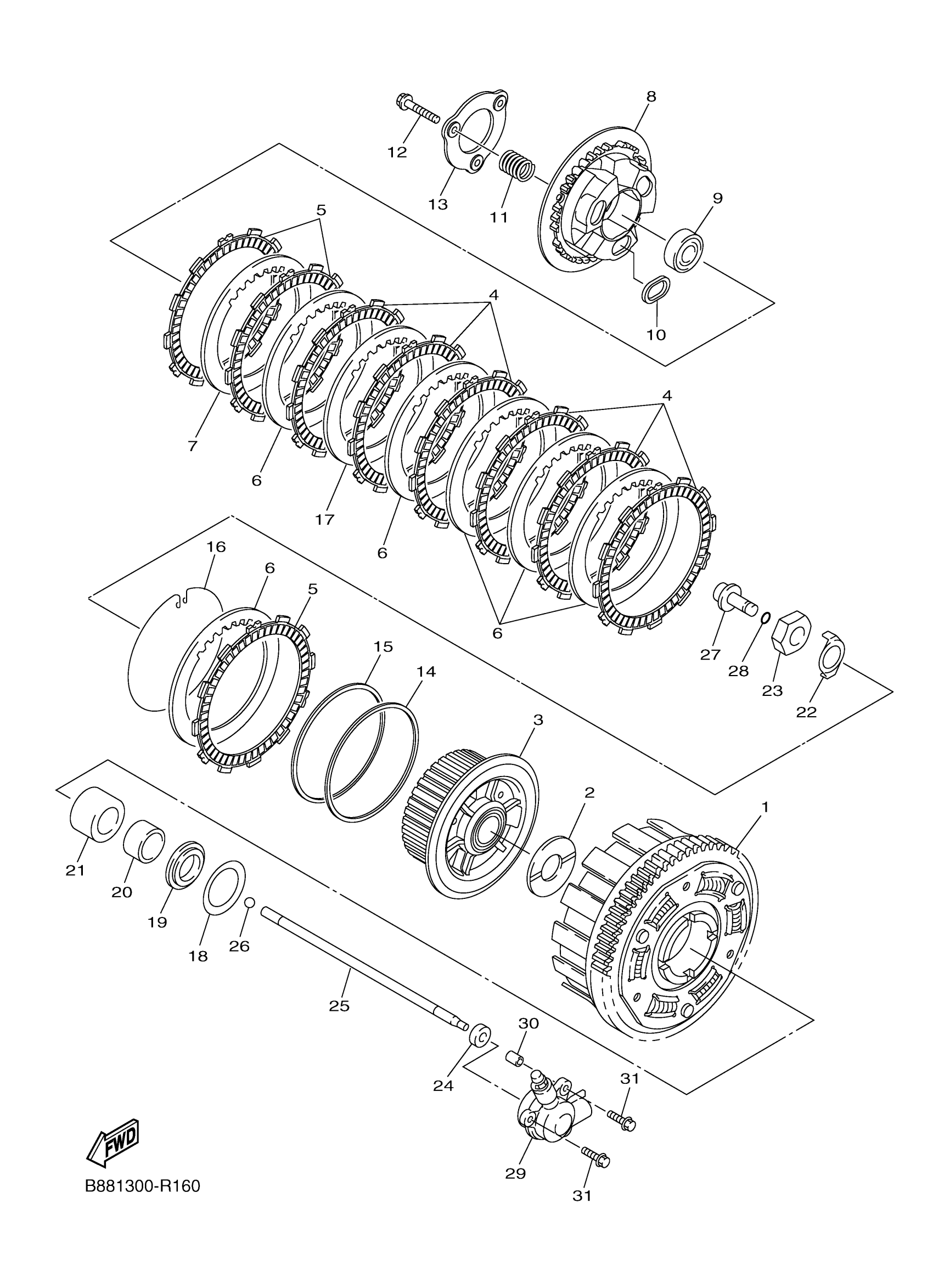

Yamaha FJR13ESJL (FJR1300ES) B96D 2018 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

5JW-16150-00-00

Unavailable

2

PLATE, THRUST 1

5JW-16154-00-00

Unavailable

3

BOSS, CLUTCH

B88-16371-00-00

$158.70

4

PLATE, FRICTION

1D7-16321-00-00

$19.38

5

PLATE, FRICTION 2

27D-16331-00-00

$15.85

6

PLATE, CLUTCH 2

2H7-16325-10-00

$10.61

7

PLATE, CLUTCH 2

1D7-16325-00-00

$13.74

8

PLATE, PRESSURE 1

B88-16351-00-00

$97.08

9

BEARING(2JN)

93306-00315-00

$26.06

10

PLATE, SEAT

1D7-16384-00-00

$4.34

11

SPRING, COMPRESSION

B88-16173-00-00

Unavailable

12

SCREW, SPRING

2CR-16337-00-00

$2.33

13

PLATE, PRESSURE 2

1TD-16352-00-00

Unavailable

14

PLATE, SEAT

36Y-16384-00-00

$21.21

15

SPRING, CLUTCH BOSS

36Y-16383-00-00

$54.37

16

RING, CLUTCH BOSS SPRING SET

2H7-16385-00-00

Unavailable

17

PLATE, CLUTCH 1

2H7-16324-10-00

Unavailable

17

PLATE, CLUTCH 2

2H7-16325-10-00

$10.61

17

PLATE, CLUTCH 1

47X-16324-10-00

Unavailable

18

SPRING, SHOCK ABSORBER

3P6-16587-00-00

Unavailable

19

SPACER 3

3P6-16183-00-00

Unavailable

20

COLLAR

90387-28002-00

Unavailable

21

SPACER 1

B88-16181-00-00

Unavailable

22

WASHER, LOCK (26H)

90215-25218-00

Unavailable

23

NUT (26H)

90170-20323-00

Unavailable

24

OIL SEAL(12E)

93109-08061-00

Unavailable

25

ROD, PUSH 2

3P6-16357-00-00

Unavailable

26

BALL (498)

93511-32027-00

Unavailable

27

ROD, PUSH 1

4KG-16356-00-00

Unavailable

28

O-RING (26H)

93210-06632-00

Unavailable

29

PUSH LEVER COMP.

5JW-16381-00-00

Unavailable

30

PIN, DOWEL

99530-08012-00

$4.89

31

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable
