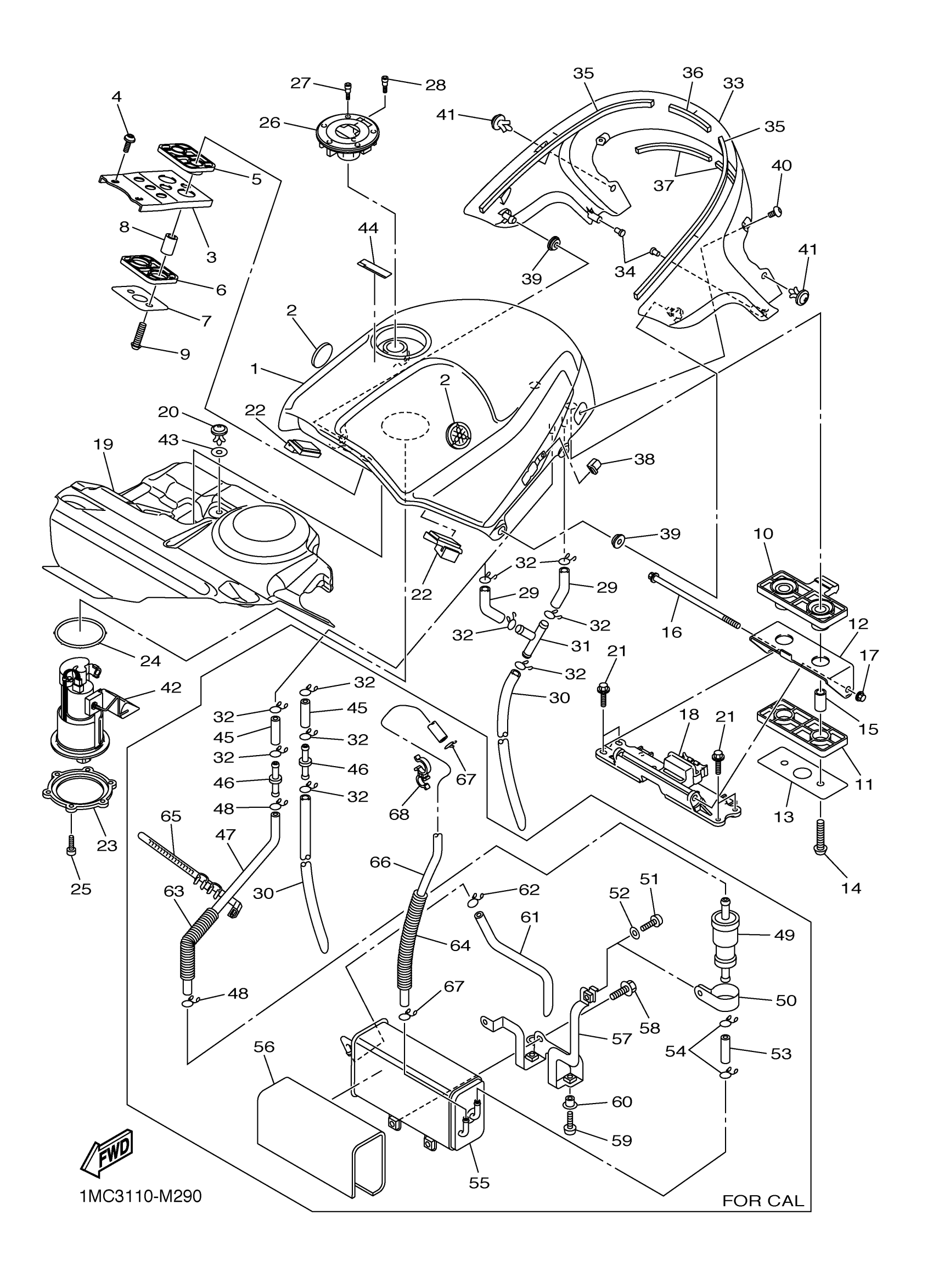

Yamaha FJR13ESFC (FJR1300ES CA) 2PDC 2015 FUEL TANK Diagram
#
2
EMBLEM
1MC-2414B-00-00
Unavailable
4
SCREW(4DN)
90149-06302-00
Unavailable
6
DAMPER, LOCATING 2
5JW-24182-00-00
Unavailable
7
WASHER, SPECIAL
5JW-24187-00-00
Unavailable
10
DAMPER, LOCATING 3
3P6-24183-00-00
Unavailable
13
WASHER, SPECIAL
5JW-24186-00-00
Unavailable
16
BOLT, FLANGE
95817-08160-00
Unavailable
17
NUT,FLANGE(J10)
95702-08500-00
Unavailable
18
BRACKT, TANK FITTING
3P6-21348-00-00
Unavailable
19
INSULATOR, FUEL TANK 1
1MC-2416F-00-00
Unavailable
20
RIVET
90269-06081-00
Unavailable
21
BOLT, FLANGE
95817-06020-00
Unavailable
22
DAMPER, LOCATING 4
3P6-24184-00-00
Unavailable
23
BRACKET, FUEL PUMP
1MC-24491-00-00
Unavailable
24
O-RING
19B-24486-01-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
26
CAP ASSY
39P-24602-10-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
28
BOLT
91312-05010-00
Unavailable
29
HOSE (L120)
90445-113E8-00
Unavailable
30
HOSE (L500)
90445-11036-00
Unavailable
31
WAY 3 (10L)
90413-07007-00
Unavailable
32
CLIP
90467-100A1-00
Unavailable
33
COVER, SIDE 1
3P6-24129-10-P0
Unavailable
34
PLUG(1NL)
90338-07180-00
Unavailable
35
DAMPER, PLATE 1
3P6-2414H-00-00
Unavailable
36
DAMPER, PLATE 2
3P6-2414J-00-00
Unavailable
37
DAMPER, PLATE 6
2D1-2414R-00-00
Unavailable
38
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
39
GROMMET(4DN)
90480-01558-00
Unavailable
40
BOLT,HEX. SOCKET BUTTON
90111-05023-00
Unavailable
41
RIVET
90269-06081-00
Unavailable
42
FUEL PUMP COMP.
5JW-13907-25-00
Unavailable
43
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
44
LABEL, CAUTION
1TP-2118K-A2-00
Unavailable
