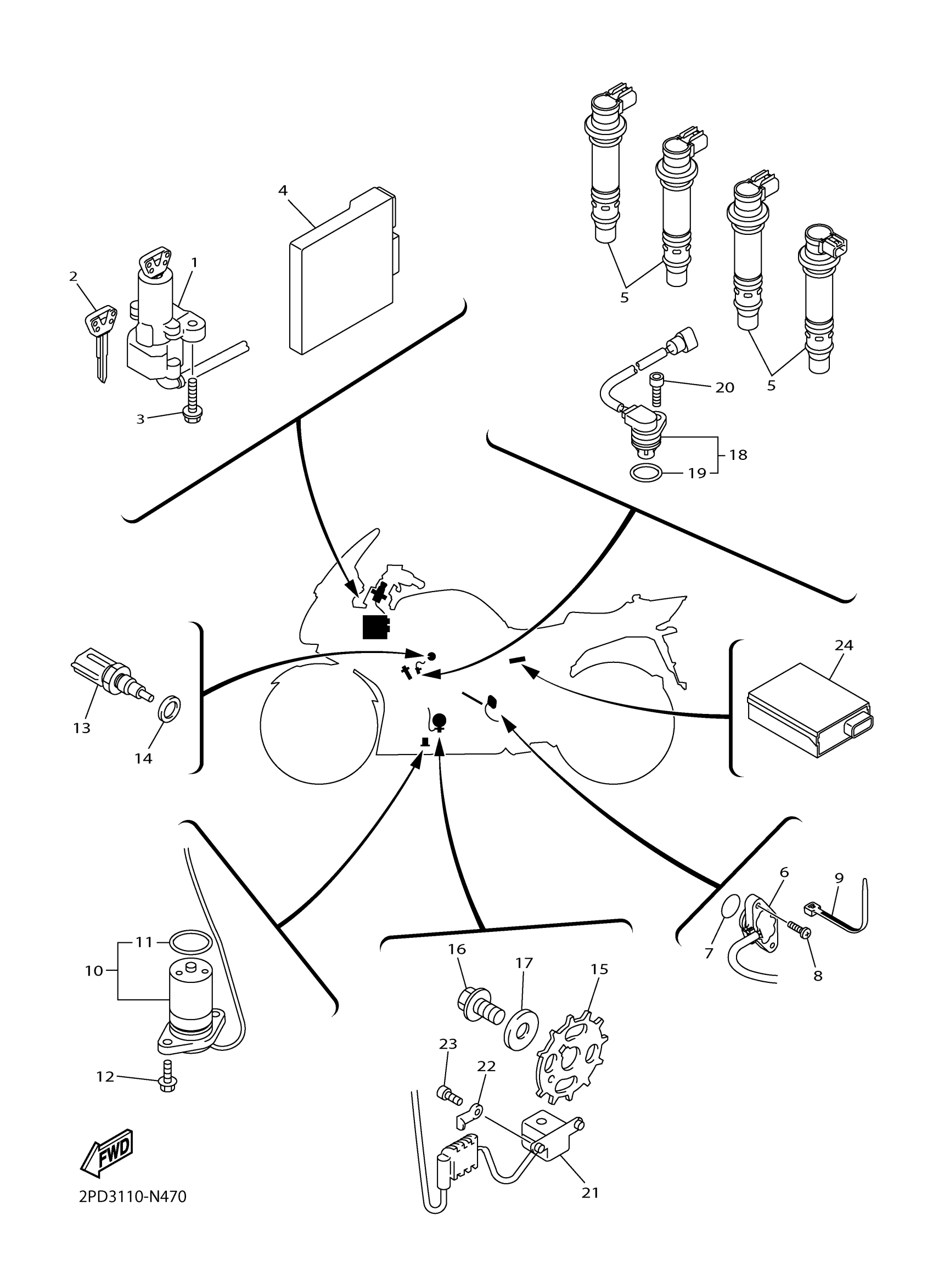

Yamaha FJR13ESER (FJR1300E) 2PD3 2014 ELECTRICAL 1 Diagram

#

Description
Price

1

MAIN SWITCH STEERING LOCK

5PS-82501-21-00

Unavailable

2

BLANK KEY

4BH-82511-09-00

$30.99

3

BOLT

90109-08196-00

$8.49

4

ENGINE CONTROL UNIT ASSY

2PD-8591A-20-00

$1,056.99

5

IGNITION COIL ASSY

1MC-82310-00-00

$124.99

6

NEUTRAL SWITCH ASSY

1MC-82540-01-00

Unavailable

7

O-RING

93210-21001-00

$5.60

8

SCREW, BINDING

90154-05046-00

$2.29

9

BAND

1UA-82591-00-00

$4.78

10

OIL LEVEL GAUGE ASSY

1MC-85720-01-00

Unavailable

11

O-RING

4XV-8A8E0-00-00

Unavailable

12

BOLT, FLANGE

95022-06016-00

$3.62

13

THERMOSENSOR ASSY

5YP-85790-00-00

$64.99

14

WASHER, PLATE

90201-12790-00

$9.49

15

ROTOR

1MC-81673-00-00

Unavailable

16

BOLT, FLANGE

90105-10153-00

Unavailable

17

WASHER, PLATE

90201-10065-00

Unavailable

18

SENSOR, CAM POSITION

1MC-85896-01-00

Unavailable

19

O-RING

4D9-81168-00-00

Unavailable

20

BOLT,SOCKET

91317-06016-00

Unavailable

21

PICK-UP ASSY

3P6-81670-00-00

Unavailable

22

CLAMP

90465-08055-00

Unavailable

23

BOLT(47X)

91312-05012-00

Unavailable

24

SUSPENSION CONTROL UNIT ASSY

1MD-85902-00-00

Unavailable
