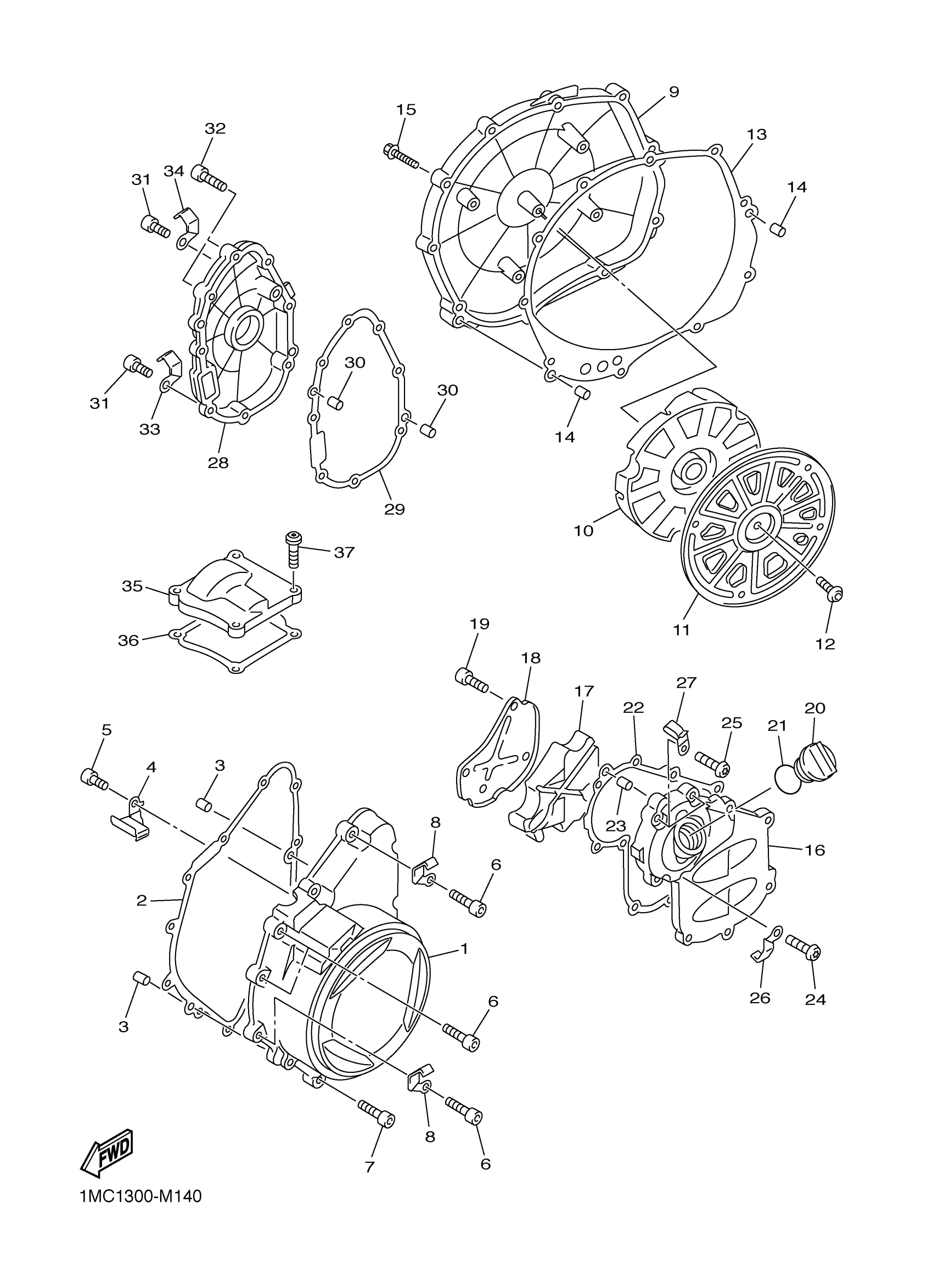

Yamaha FJR13ESER (FJR1300E) 2PD3 2014 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1MC-15411-00-00

$192.05

2

GASKET, CRANKCASE COVER 1

5JW-15451-11-00

$23.65

3

PIN, DOWEL

99530-08012-00

$4.89

4

CLAMP 2

5JW-15484-01-00

$10.71

5

BOLT,SOCKET

91317-06010-00

$6.45

6

BOLT,SOCKET HEAD

91314-06025-00

$6.22

7

BOLT,SOCKET HEAD

91314-06020-00

$1.91

8

CLAMP

90462-08045-00

$5.18

9

COVER, CRANKCASE 2

1MC-15421-00-00

Unavailable

10

DAMPER 2

5JW-15326-01-00

$61.79

11

COVER

5JW-15492-00-00

$37.26

12

BOLT, BUTTON HEAD

92012-06014-00

$5.76

13

GASKET, CRANKCASE COVER 2

5JW-15461-11-00

$23.90

14

PIN, DOWEL

93608-21002-00

$1.62

15

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$4.57

16

COVER, CRANKCASE 3

1MC-15431-00-00

Unavailable

17

DAMPER, ENGINE MOUNT 1

5JW-15316-00-00

Unavailable

18

COVER, AIR CLEANER

5JW-15414-00-00

Unavailable

19

BOLT,SOCKET

91317-06012-00

Unavailable

20

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

21

O-RING(1KT)

93210-27778-00

Unavailable

22

GASKET, CRANKCASE COVER 3

5JW-15462-11-00

Unavailable

23

PIN, DOWEL

99530-08012-00

$4.89

24

SCREW

90149-06149-00

Unavailable

25

SCREW

90149-06149-00

Unavailable

26

CLAMP

90462-08045-00

$5.18

27

CLAMP(51Y)

90465-08277-00

Unavailable

28

COVER, OIL PUMP

1MC-15416-00-00

Unavailable

29

GASKET, OIL PUMP COVER 1

5JW-15456-11-00

Unavailable

30

PIN, DOWEL

99530-08012-00

$4.89

31

BOLT,SOCKET HEAD

91314-06020-00

$1.91

32

BOLT,SOCKET HEAD

91314-06025-00

$6.22

33

CLAMP

90462-08045-00

$5.18

34

CLAMP

90465-08050-00

Unavailable

35

COVER, GENERATOR 2

1MC-15425-00-00

Unavailable

36

GASKET, COVER PINION 2

5JW-15463-01-00

Unavailable

37

SCREW

90149-06149-00

Unavailable
