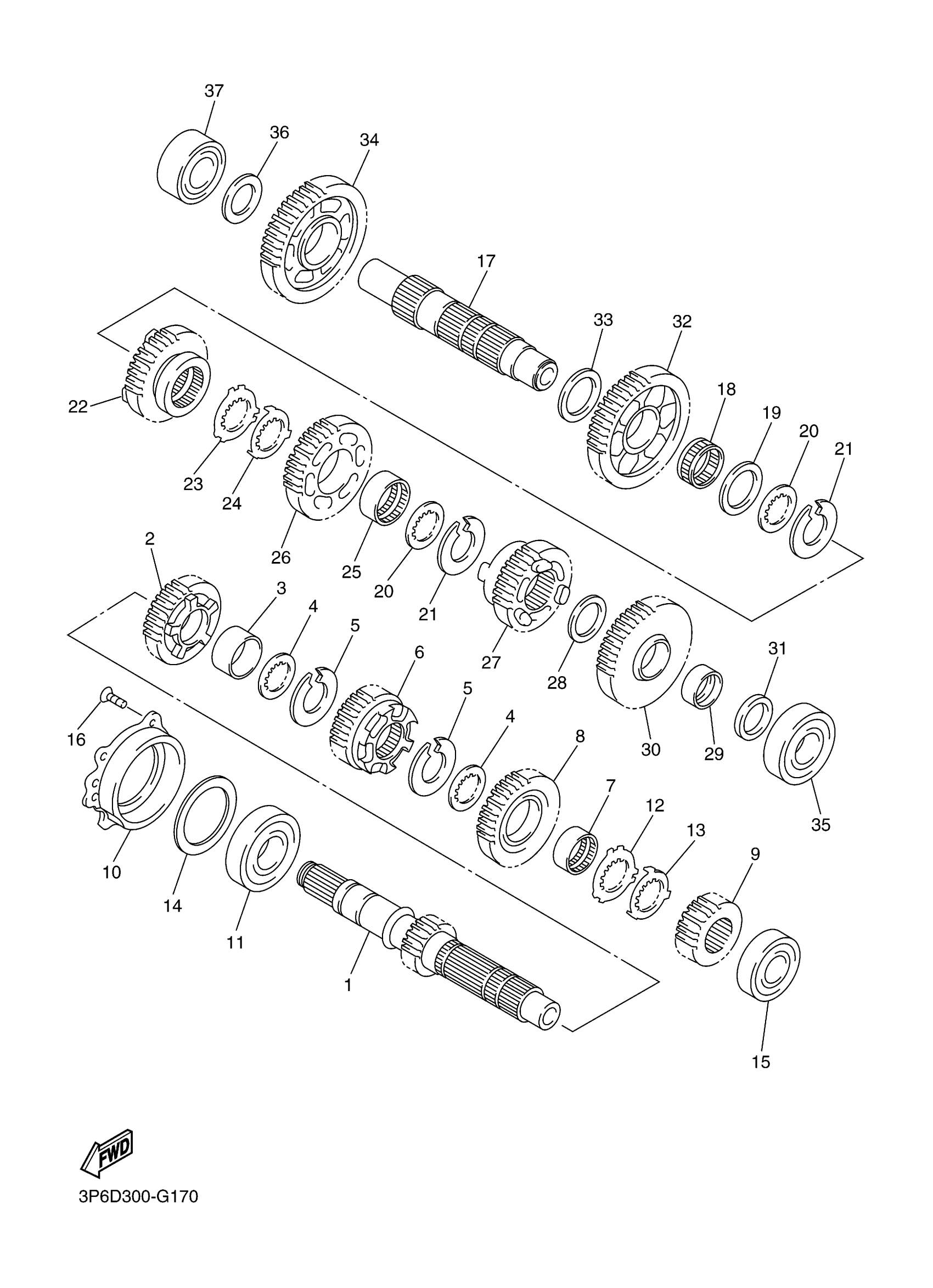

Yamaha FJR13AZS (FJR1300A) 1CY2 2010 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5JW-17411-00-00

Unavailable

2

GEAR, 4TH PINION

3P6-17141-00-00

Unavailable

3

COLLAR

90387-32001-00

Unavailable

4

WASHER(3VD)

90209-28331-00

Unavailable

5

CIRCLIP(3VD)

93440-31172-00

$13.99

6

GEAR, 3RD PINION

3P6-17131-00-00

Unavailable

7

COLLAR(3VD)

90387-2802W-00

Unavailable

8

GEAR, 5TH PINION

5JW-17151-00-00

Unavailable

9

GEAR, 2ND PINION

1CY-17121-00-00

Unavailable

10

HOUSING, BEARING 1

3P6-15163-00-00

Unavailable

11

BEARING

93306-37810-00

Unavailable

12

WASHER(3VD)

90209-29329-00

$17.99

13

WASHER(3VD)

90209-28330-00

Unavailable

14

WASHER, PLATE

90201-51013-00

$13.49

15

BEARING

93306-37209-00

Unavailable

16

SCREW

90149-06085-00

Unavailable

17

DRIVE AXLE ASSY

5JW-17402-00-00

Unavailable

18

BEARING

93310-33306-00

Unavailable

19

WASHER, PLATE

90201-33008-00

Unavailable

20

WASHER

90209-30344-00

Unavailable

21

CIRCLIP (2H7)

93440-32063-00

Unavailable

22

GEAR, 4TH WHEEL

5JW-17241-00-00

Unavailable

23

WASHER

90209-30345-00

Unavailable

24

WASHER

90209-30343-00

Unavailable

25

COLLAR

90387-3310V-00

Unavailable

26

GEAR, 3RD WHEEL

1MC-17231-00-00

Unavailable

27

GEAR, 5TH WHEEL

5JW-17251-00-00

Unavailable

28

WASHER, PLATE(1YW)

90201-286K9-00

Unavailable

29

COLLAR(2GH)

90387-281T8-00

Unavailable

30

GEAR, 2ND WHEEL

1MC-17221-00-00

Unavailable

31

WASHER, PLATE

90201-25013-00

Unavailable

32

GEAR, 1ST WHEEL (34T)

5JW-17211-00-00

Unavailable

33

WASHER, PLATE

90201-33013-00

Unavailable

34

GEAR, MIDDLE DRIVE

3P6-17582-00-00

Unavailable

35

BEARING

93306-30557-00

Unavailable

36

WASHER, PLATE

90201-25008-00

Unavailable

37

BEARING

93304-20508-00

Unavailable
