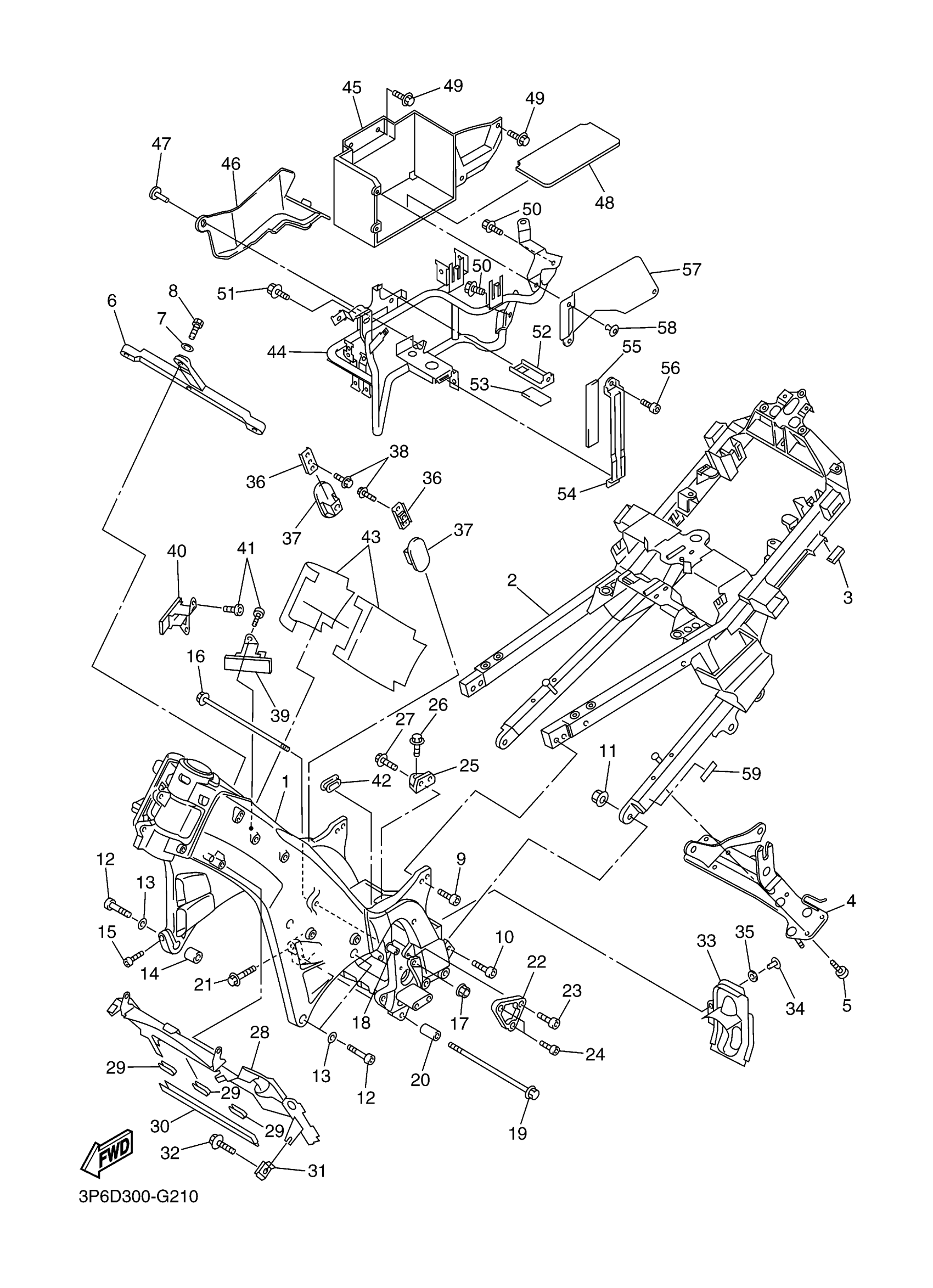

Yamaha FJR13AZS (FJR1300A) 1CY2 2010 FRAME Diagram

#

Description
Price

1

FRAME COMP.

3P6-21110-00-00

Unavailable

2

REAR FRAME COMP.

3P6-21190-01-00

Unavailable

3

PROTECTOR

3P6-21652-00-00

$6.99

4

MEMBER 1

3P6-2115A-10-00

Unavailable

5

SCREW(4DN)

90149-06302-00

Unavailable

6

CROSS-TUBE

3P6-21119-00-00

Unavailable

7

WASHER, PLATE (17K)

90201-106F2-00

$10.49

8

BOLT, FLANGE

95817-10030-00

$8.49

9

BOLT, SOCKET

91317-08025-00

$8.49

10

BOLT,SOCKET

91314-10030-00

$5.60

11

NUT, S/L FLANGE

95602-10200-00

$4.82

12

BOLT

91314-12055-00

$10.49

13

WASHER(6TA)

92907-12600-00

$1.71

14

COLLAR

90387-1312P-00

$18.99

15

BOLT,SOCKET

91314-08030-00

$2.34

16

BOLT, WASHER BASED(1UF)

90105-10416-00

Unavailable

17

NUT

90179-10696-00

Unavailable

18

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

19

BOLT, WASHER BASED(4KM)

90105-10781-00

Unavailable

20

SPACER(3LN)

90560-10364-00

Unavailable

21

BOLT, FLANGE

95022-08035-00

Unavailable

22

STAY, ENGINE 2

3P6-21315-00-00

Unavailable

23

BOLT,SOCKET

91314-10020-00

Unavailable

24

BOLT,SOCKET

91314-08016-00

Unavailable

25

STAY, ENGINE 3

5JW-21316-00-00

Unavailable

26

BOLT (6TC)

90101-10M05-00

Unavailable

27

BOLT, WASHER BASED(36Y)

90105-08307-00

Unavailable

28

GUIDE, AIR

3P6-2137Y-00-00

Unavailable

29

SEAL

3P6-21269-00-00

Unavailable

30

SEAL, AIR

3P6-21469-00-00

Unavailable

31

NUT, SPRING(4ES)

90183-06069-00

Unavailable

32

BOLT, WITH WASHER(2WG)

90119-06172-00

Unavailable

33

COVER, SHAFT 1

3P6-2147J-01-00

Unavailable

34

RIVET

90269-07008-00

Unavailable

35

WASHER, PLATE

90202-06058-00

Unavailable

36

BRACKET 3

5JW-2118U-00-00

Unavailable

37

BRACKET, INNER 1

5JW-2113N-00-00

Unavailable

38

BOLT, FLANGE

95022-06012-00

Unavailable

39

BRACKET, INNER 2

5JW-2113R-01-00

Unavailable

40

BRACKET, INNER 2

5JW-2113R-11-00

Unavailable

41

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

42

CAP

5JW-2143A-00-00

Unavailable

43

DAMPER

5JW-21852-00-00

Unavailable

44

STAY 1

3P6-28321-00-00

Unavailable

45

BOX, BATTERY

3P6-2177G-00-00

Unavailable

46

GUIDE, AIR 3

3P6-2137K-00-00

Unavailable

47

RIVET(4KM)

90269-05074-00

Unavailable

48

SEAT, BATTERY

5VX-82122-00-00

Unavailable

49

BOLT, WITH WASHER

90119-06209-00

Unavailable

50

BOLT, FLANGE

95022-06012-00

Unavailable

51

BOLT, FLANGE

95817-06014-00

Unavailable

52

STAY 2

5JW-28357-01-00

Unavailable

53

DAMPER 3

5JW-28425-00-00

Unavailable

54

STAY 3

5JW-28358-00-00

Unavailable

55

DAMPER 4

5JW-28435-00-00

Unavailable

56

BOLT,SOCKET

91317-06012-00

Unavailable

57

COVER

5JW-2172W-00-00

Unavailable

58

RIVET

90269-06001-00

Unavailable

59

LABEL 1

5JW-2151A-02-00

Unavailable
