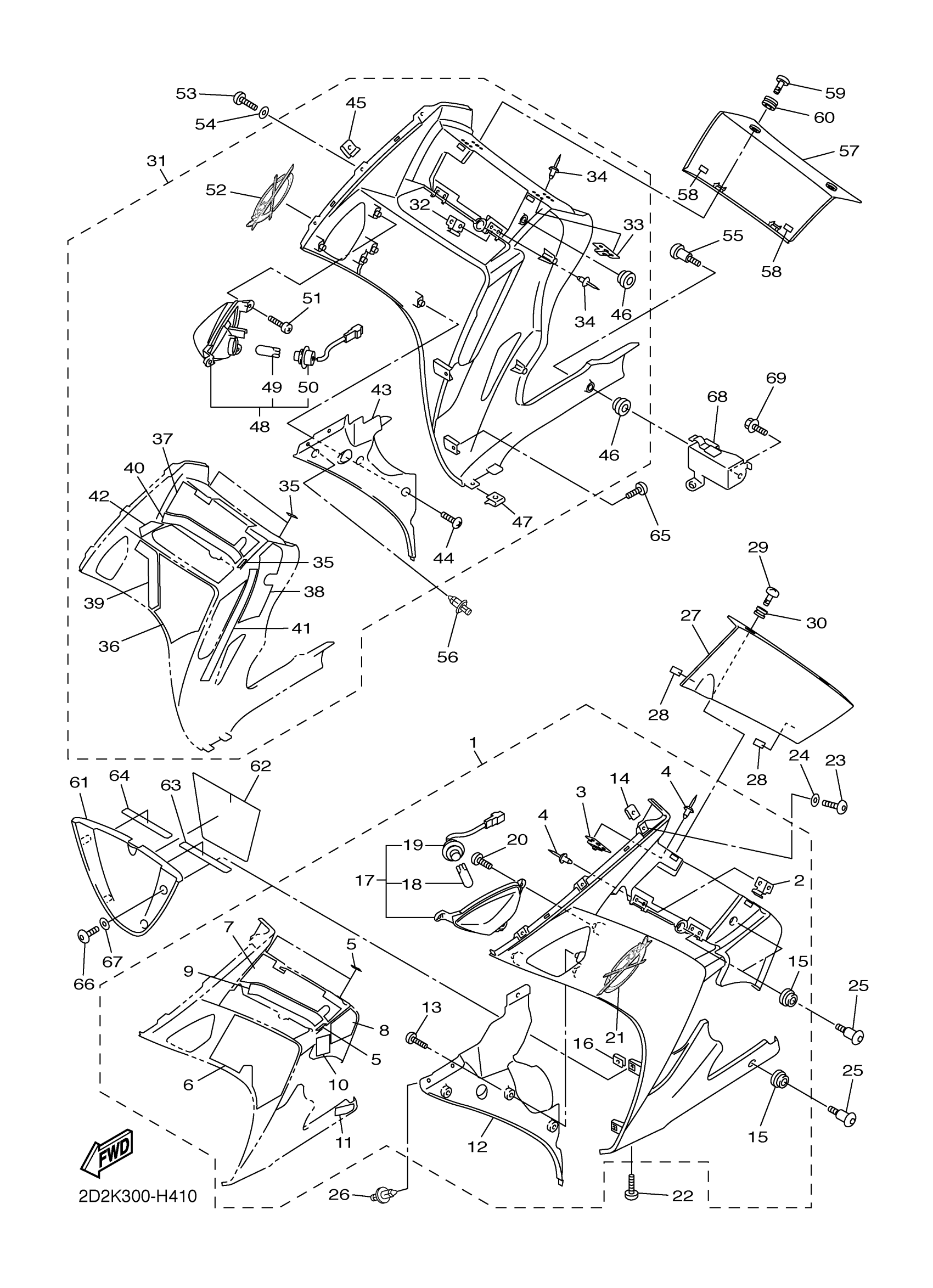

Yamaha FJR13AYCB (FJR1300A CA) 3P6P 2009 COWLING 2 Diagram

#

Description
Price

1

BODY, FRONT LOWER 1

3P6-Y283J-K0-P7

Unavailable

2

HINGE

3P6-21796-00-00

Unavailable

3

PLATE, SPRING

3XV-2177L-00-00

$6.99

4

RIVET, BLIND (24R)

90267-32103-00

Unavailable

5

SEAL

3P6-28307-00-00

$2.34

6

. DAMPER 1

3P6-28415-00-00

Unavailable

7

DAMPER 2

3P6-28416-00-00

$6.99

8

DAMPER 4

3P6-28435-00-00

Unavailable

9

DAMPER 1

3P6-2834E-00-00

Unavailable

10

. DAMPER 5

3P6-2837J-00-00

Unavailable

11

DAMPER 5

5VY-2837J-00-00

$6.99

12

PANEL, INNER 1

3P6-2836K-00-00

Unavailable

13

SCREW, TAPPING

97702-50016-00

$2.39

14

NUT, SPRING

90183-051A0-00

$3.81

15

GROMMET

90480-13014-00

$8.49

16

NUT, SPRING

90183-051A0-00

$3.81

17

FRONT FLASHER LIGHT ASSY 1

3P6-83310-10-00

Unavailable

18

BULB, FLASHER

3P6-83331-10-00

Unavailable

19

SOCKET CORD ASSY

3P6-83509-10-00

Unavailable

20

SCREW, TAPPING

97702-50016-00

$2.39

21

EMBLEM 3D

3P6-2839B-00-00

Unavailable

22

BOLT

90111-05003-00

Unavailable

23

BOLT

90111-05003-00

Unavailable

24

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

25

BOLT

90109-06037-00

Unavailable

26

RIVET

90269-06008-00

Unavailable

27

VISOR, SIDE 1

3P6-2830C-01-P7

Unavailable

28

DAMPER 1

3P6-28217-00-00

Unavailable

29

HEAD

3XV-28386-00-00

Unavailable

30

GROMMET

90480-09001-00

Unavailable

31

BODY, FRONT LOWER 2

3P6-Y283K-K0-P7

Unavailable

32

HINGE

3P6-21796-00-00

Unavailable

33

PLATE, SPRING

3XV-2177L-00-00

$6.99

34

RIVET, BLIND (24R)

90267-32103-00

Unavailable

35

SEAL

3P6-28307-00-00

$2.34

36

DAMPER 3

3P6-28425-00-00

Unavailable

37

DAMPER 2

3P6-28416-10-00

Unavailable

38

DAMPER, 4

3P6-28455-00-00

Unavailable

39

DAMPER

3P6-28371-00-00

Unavailable

40

DAMPER

3P6-2834F-00-00

Unavailable

41

DAMPER 6

3P6-2837K-00-00

Unavailable

42

DAMPER 8

3P6-2847N-00-00

Unavailable

43

PANEL, INNER 2

3P6-2836L-00-00

Unavailable

44

SCREW, TAPPING

97702-50016-00

$2.39

45

NUT, SPRING

90183-051A0-00

$3.81

46

GROMMET

90480-13014-00

$8.49

47

NUT, SPRING

90183-051A0-00

$3.81

48

FRONT FLASHER LIGHT ASSY 2

3P6-83320-10-00

Unavailable

49

BULB, FLASHER

3P6-83331-10-00

Unavailable

50

SOCKET CORD ASSY

3P6-83509-00-00

Unavailable

51

SCREW, TAPPING

97702-50016-00

$2.39

52

EMBLEM 3D

3P6-2839B-00-00

Unavailable

53

BOLT

90111-05003-00

Unavailable

54

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

55

BOLT

90109-06037-00

Unavailable

56

RIVET

90269-06008-00

Unavailable

57

VISOR, SIDE 2

3P6-2830D-01-P7

Unavailable

58

DAMPER 1

3P6-28217-00-00

Unavailable

59

HEAD

3XV-28386-00-00

Unavailable

60

GROMMET

90480-09001-00

Unavailable

61

COVER, UNDER

3P6-28385-11-P0

Unavailable

62

SEAT

3P6-2848H-00-00

Unavailable

63

SEAT 2

3P6-2848K-00-00

Unavailable

64

SEAT 3

3P6-2848L-00-00

Unavailable

65

SCREW, TAPPING

97702-50016-00

$2.39

66

BOLT

90111-05003-00

Unavailable

67

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

68

BRACKET 3

5JW-2836F-00-00

Unavailable

69

BOLT, FLANGE

95817-06012-00

Unavailable
