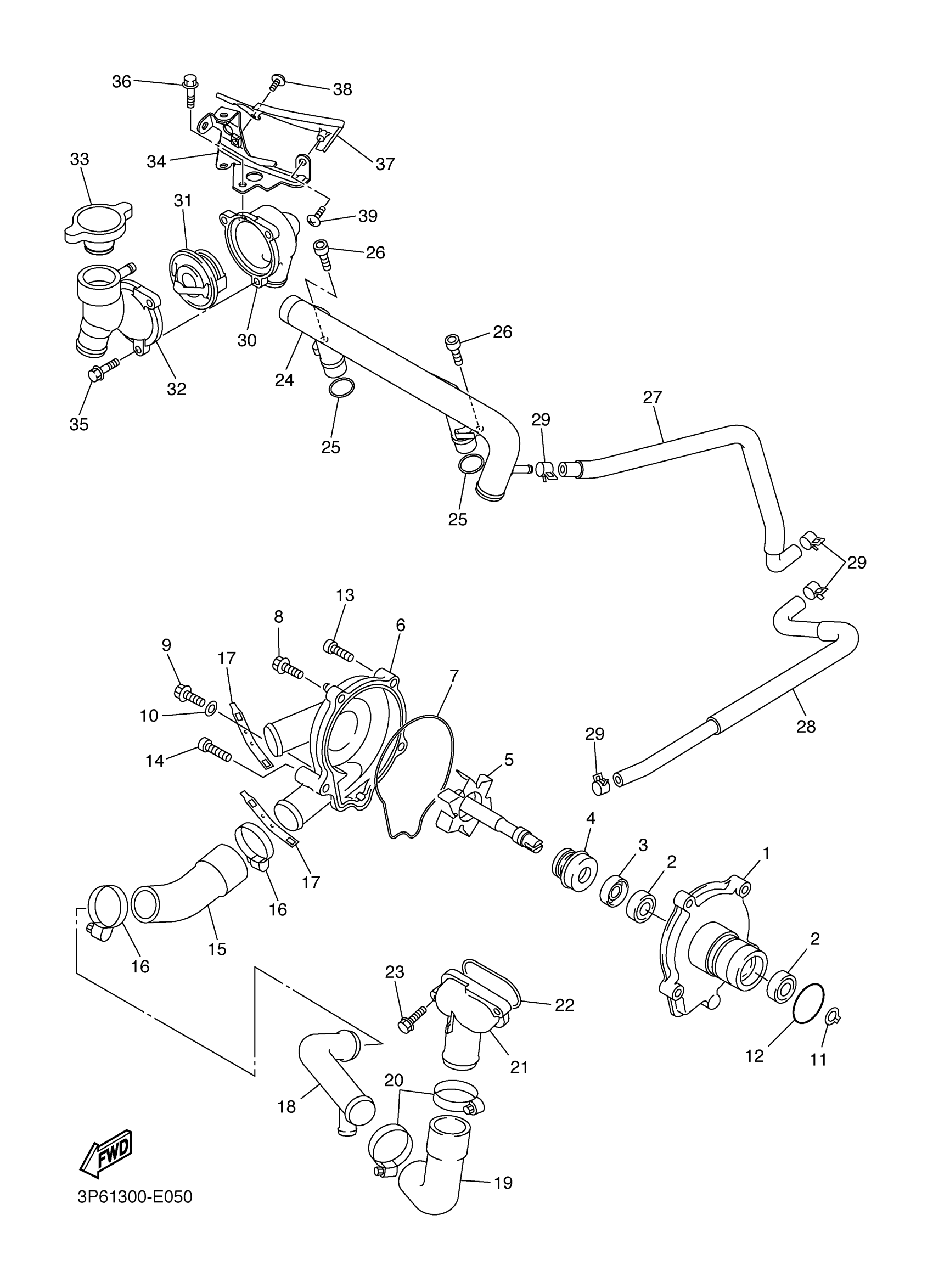

Yamaha FJR13AXCB (FJR1300A CA) 3P6H 2008 WATER PUMP Diagram
#
Description
Price
10
GASKET 256113960000
90430-06014-00
Unavailable
13
BOLT, HEXAGON SOCKET HEAD
90110-06033-00
Unavailable
14
BOLT, HEXAGON SOCKET HEAD
90110-06034-00
Unavailable
16
HOSE CLAMP ASSY(3GM)
90450-38040-00
Unavailable
17
COVER 2
5GV-1246E-00-00
Unavailable
18
JOINT, HOSE 1
3P6-12581-00-00
Unavailable
19
HOSE 2
5JW-12577-00-00
Unavailable
20
HOSE CLAMP ASSY(3GM)
90450-38040-00
Unavailable
21
JOINT 1
5JW-12469-00-00
Unavailable
22
O-RING(52H)
93210-47675-00
Unavailable
23
BOLT, FLANGE
95022-06020-00
Unavailable
24
PIPE 1
3P6-12481-02-00
Unavailable
25
O-RING (716)
93210-18417-00
Unavailable
26
BOLT(3MA)
91312-06016-00
Unavailable
27
HOSE 3
3P6-12578-00-00
Unavailable
28
HOSE 4
3P6-12579-00-00
Unavailable
29
CLIP(3BM)
90467-10135-00
Unavailable
30
HOUSING, THERMOSTAT
3P6-12417-00-00
Unavailable
31
THERMOSTAT ASSY
4FM-12410-01-00
Unavailable
32
SUPT, FILLER NECK
3P6-12591-00-00
Unavailable
33
CAP, RADIATOR
1B3-12462-00-00
Unavailable
34
BRACKET 1
3P6-1244E-00-00
Unavailable
35
BOLT, FLANGE
95022-06020-00
Unavailable
36
BOLT, FLANGE
95022-06012-00
Unavailable
37
GUIDE, AIR 1
3P6-2137U-00-00
Unavailable
38
SCREW, BINDING (10V)
90154-05013-00
Unavailable
39
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
