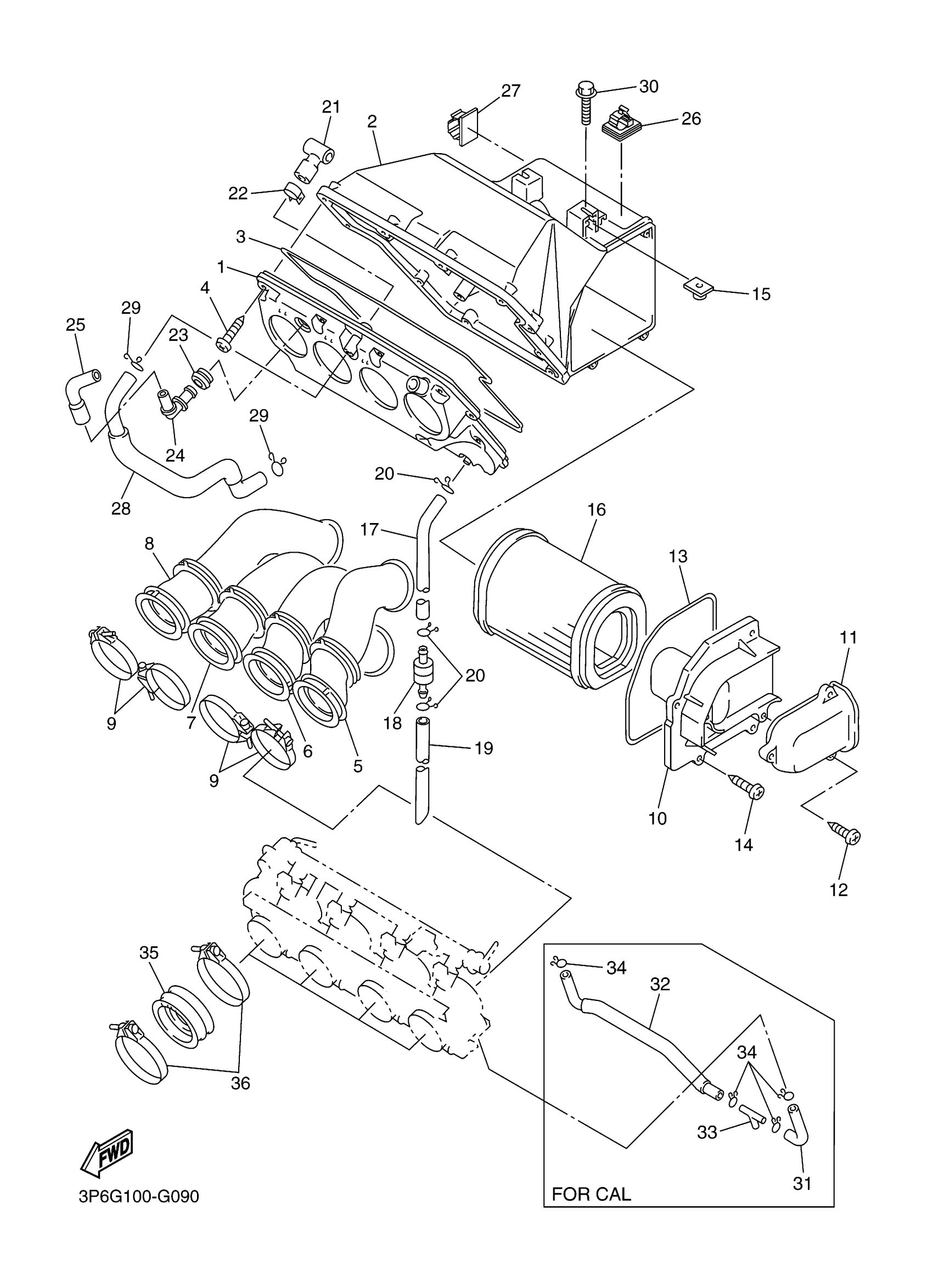

Yamaha FJR13AXCB (FJR1300A CA) 3P6H 2008 INTAKE Diagram
#
1
CASE, AIR CLEANER 1
5JW-14411-10-00
Unavailable
2
CASE, AIR CLEANER 2
5JW-14421-10-00
Unavailable
5
JOINT, AIR CLEANER 1
5JW-14453-00-00
Unavailable
6
JOINT, AIR CLEANER 2
5JW-14463-00-00
Unavailable
7
JOINT
5JW-14454-10-00
Unavailable
8
JOINT
5JW-14568-00-00
Unavailable
10
CAP, CLEANER CASE 1
5JW-14412-10-00
Unavailable
11
DUCT
5JW-14437-00-00
Unavailable
15
PLATE
31A-14477-10-00
Unavailable
16
ELEMENT, AIR CLEANER
5JW-14451-00-00
Unavailable
17
HOSE (L198)
90445-11293-00
Unavailable
18
FILTER ASSY
4X7-2149Y-00-00
Unavailable
19
HOSE (L280)
90445-11003-00
Unavailable
20
CLIP
90467-100A1-00
Unavailable
21
PIPE
5JW-14419-00-00
Unavailable
22
CLIP
90468-08104-00
Unavailable
23
GROMMET
31A-14435-01-00
Unavailable
24
PIPE
5JW-14149-00-00
Unavailable
25
PIPE, JOINT
5JW-14485-00-00
Unavailable
26
CLAMP(1NL)
90464-62085-00
Unavailable
27
CLAMP
90464-20014-00
Unavailable
28
PIPE, BREATHER 1
5JW-11166-10-00
Unavailable
29
CLIP (371)
90467-14015-00
Unavailable
30
BOLT, FLANGE
95817-06020-00
Unavailable
31
PIPE
5JW-14465-01-00
Unavailable
32
PIPE
5JW-14466-01-00
Unavailable
33
PIPE, JOINT
3H3-24376-00-00
Unavailable
34
CLIP
90467-100A1-00
Unavailable
35
JOINT, CARBURETOR 3
5JW-13597-00-00
Unavailable
36
HOSE CLAMP ASSY
90450-63003-00
Unavailable
