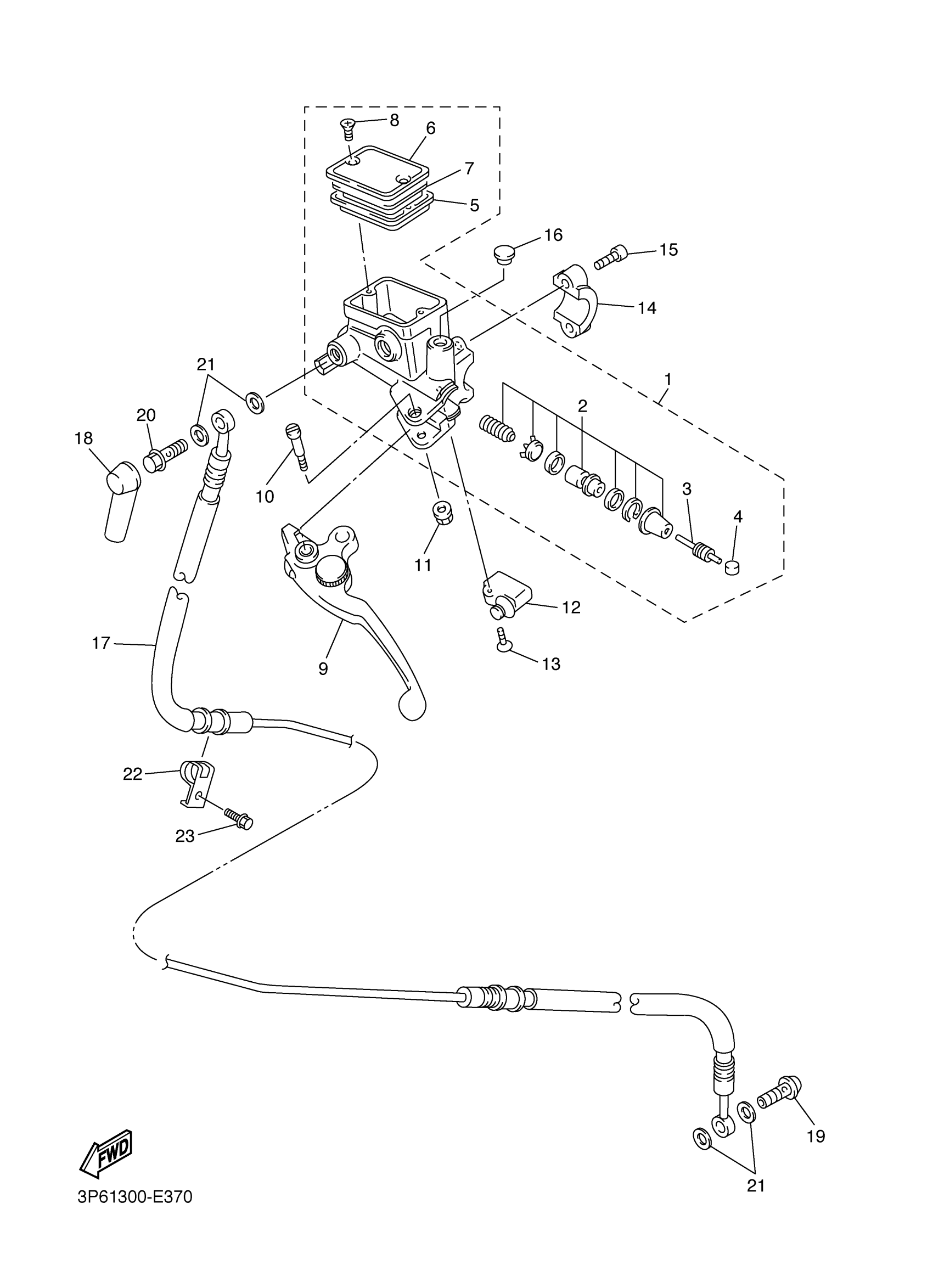

Yamaha FJR13AXCB (FJR1300A CA) 3P6H 2008 FRONT MASTER CYLINDER 2 Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5JW-W2645-01-00

Unavailable

2

CYLINDER KIT, MASTER (CLUTCH)

5JW-W0099-00-00

$50.99

3

ROD, PUSH

3GM-26464-00-00

$18.49

4

BUSH

3GM-26455-00-00

$24.99

5

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$35.99

6

CAP, RESERVOIR

4HM-25852-01-00

$29.99

7

PLATE, DIAPHRAGM

3GM-2585B-10-00

$12.99

8

SCREW, FLAT

98707-04012-00

$2.18

9

LEVER 1

5EA-83912-00-00

$96.99

10

BOLT, LEVER

3FV-2589F-00-00

$16.49

11

NUT, FLANGE(4MV)

95707-06500-00

$1.23

12

SWITCH

3GM-83980-00-00

$49.99

13

SCREW, FLAT

98707-04016-00

$8.49

14

BRACKET, MASTER CYLINDER

4KG-25867-00-00

Unavailable

15

BOLT,SOCKET

91317-06020-00

Unavailable

16

PLUG (341-26329-00)

90338-09012-00

Unavailable

17

HOSE, CLUTCH

5VS-26470-00-00

Unavailable

18

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

19

BOLT, UNION

90401-10172-00

Unavailable

20

BOLT, UNION

90401-10020-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

CLAMP, HOSE

5JW-21823-00-00

Unavailable

23

BOLT, FLANGE

95022-06010-00

Unavailable
