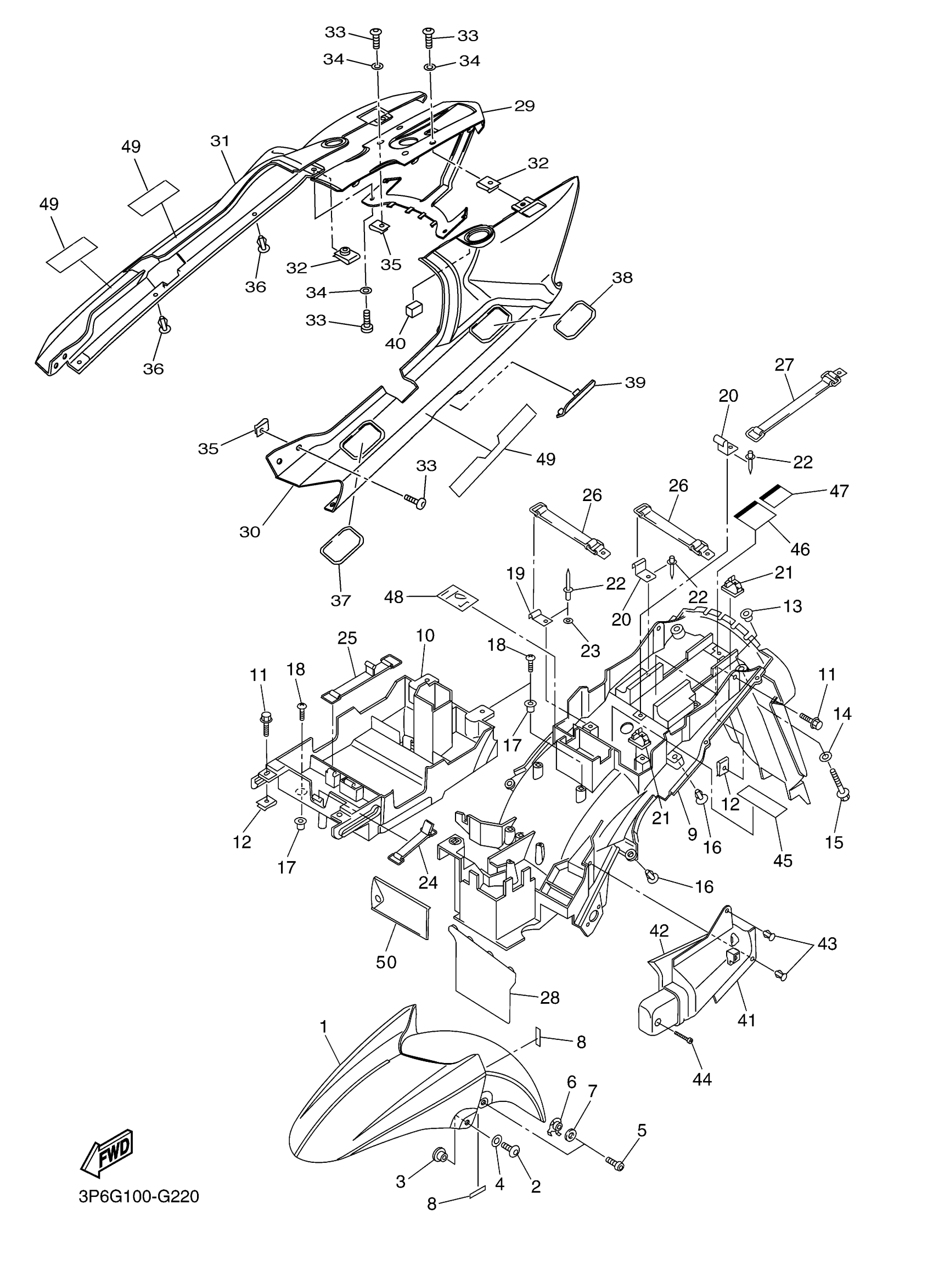

Yamaha FJR13AXCB (FJR1300A CA) 3P6H 2008 FENDER Diagram
#
1
FENDER, FRONT
3P6-21511-01-P6
Unavailable
3
COLLAR
90387-07006-00
Unavailable
4
WASHER, PLATE
90202-06170-00
Unavailable
5
BOLT, BUTTON HEAD
92014-06020-00
Unavailable
6
NUT 1
3P6-21535-11-00
Unavailable
9
FENDER, REAR
3P6-21611-10-00
Unavailable
10
BOX
3P6-2160E-00-00
Unavailable
13
COLLAR
90387-06050-00
Unavailable
16
RIVET
90269-06081-00
Unavailable
17
PLUG(4BP)
90338-08226-00
Unavailable
18
SCREW, TAPPING
97702-60016-00
Unavailable
19
HOOK
5PS-2162A-00-00
Unavailable
20
HOOK
4HM-2162A-00-00
Unavailable
21
CLAMP(4FM)
90464-13185-00
Unavailable
22
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
23
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
24
BAND
36X-2811G-00-00
Unavailable
25
BAND, BATTERY
4J2-82131-01-00
Unavailable
26
BAND
5JW-21647-01-00
Unavailable
27
BAND
3P6-21647-00-00
Unavailable
28
FLAP
5JW-21621-10-00
Unavailable
29
COVER, REAR FENDER
3P6-21651-00-P4
Unavailable
30
COVER, TAIL 1
3P6-2471K-00-P4
Unavailable
31
COVER, TAIL 2
3P6-2472K-00-P4
Unavailable
32
NUT, SPRING
90183-051A0-00
Unavailable
33
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
34
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
35
NUT, SPRING
90183-050A0-00
Unavailable
36
RIVET
90269-06081-00
Unavailable
37
COVER, REAR FENDER 2
3P6-2163E-01-P3
Unavailable
38
COVER, REAR FENDER 2
3P6-2163E-11-P3
Unavailable
39
COVER, REAR FENDER 3
3P6-2163F-01-P3
Unavailable
40
DAMPER
3P6-21649-00-00
Unavailable
41
COVER, REAR FENDER 1
3P6-2163A-00-00
Unavailable
42
DAMPER 2
3P6-21639-00-00
Unavailable
43
RIVET
90269-06081-00
Unavailable
44
YBS83-525 SCREW,PANH.TAPPING
97780-50125-00
Unavailable
45
PLATE, EPA (CALIFORNIA)
3P6-2176P-20-00
Unavailable
45
PLATE, EPA (NON CALIFORNIA)
3P6-2179W-20-00
Unavailable
46
PLATE, ROUTING
5PW-21684-00-00
Unavailable
47
PLATE, ROUTING 2
5SL-21686-00-00
Unavailable
48
LABEL
5VX-2178A-00-00
Unavailable
49
FJR PROTECT STICKER SET
5JW-W9390-00-00
Unavailable
50
TOOL KIT
5JW-28100-01-00
Unavailable
