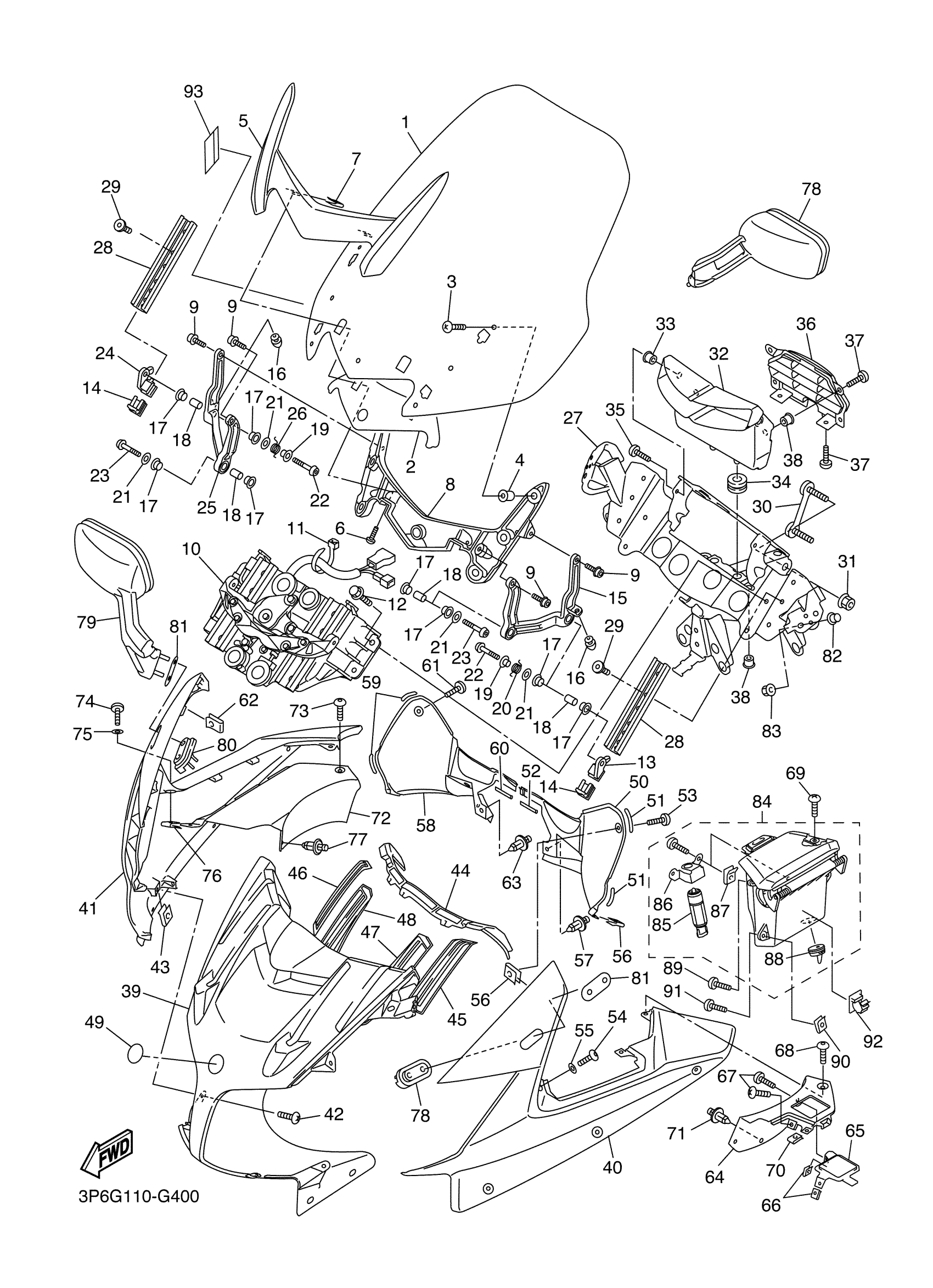

Yamaha FJR13AXCB (FJR1300A CA) 3P6H 2008 COWLING 1 Diagram
#
8
STAY 2
3P6-28322-10-00
Unavailable
13
HINGE 1
3P6-28444-00-00
Unavailable
14
PLATE 1
3P6-28396-10-00
Unavailable
15
LINK 1
3P6-2833C-10-00
Unavailable
16
PLUG
90338-07018-00
Unavailable
17
SPACER
5JW-28329-00-00
Unavailable
18
COLLAR
90387-06131-00
Unavailable
19
COLLAR
90387-06150-00
Unavailable
20
SPRING, TORSION
90508-18134-00
Unavailable
21
WASHER, PLATE
90201-06088-00
Unavailable
22
BOLT, BUTTON HEAD
92012-06035-00
Unavailable
23
BOLT, BUTTON HEAD
92012-06025-00
Unavailable
24
HINGE 2
3P6-2845E-00-00
Unavailable
25
LINK 2
3P6-2833D-10-00
Unavailable
26
SPRING, TORSION
90508-18135-00
Unavailable
27
STAY 1
3P6-28356-10-00
Unavailable
28
STAY, GUIDE 1
3P6-2831E-10-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD
90110-06284-00
Unavailable
30
PLATE
5JW-28336-00-00
Unavailable
31
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
32
DUCT 1
3P6-2838N-00-00
Unavailable
34
GROMMET
90480-12003-00
Unavailable
35
SCREW, BIND
98902-05014-00
Unavailable
36
GRILL, AIR OUTLET 1
3P6-2837V-00-00
Unavailable
37
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
39
BODY, COWLING
3P6-28351-01-P7
Unavailable
40
BODY, FRONT UPPER 1
3P6-W283G-01-P7
Unavailable
41
UPPER COWLING ASSY 2
3P6-W283H-01-P7
Unavailable
42
SCREW, BINDING (10V)
90154-05013-00
Unavailable
43
NUT, SPRING
90183-050A6-00
Unavailable
44
SEAL 1
3P6-28428-10-00
Unavailable
45
SEAL 2
3P6-28429-00-00
Unavailable
46
SEAL 3
3P6-2844E-00-00
Unavailable
47
SEAL 4
3P6-2846F-00-00
Unavailable
48
SEAL 5
3P6-2847F-00-00
Unavailable
49
TUNING FORK MARK
5LV-2836B-01-00
Unavailable
50
PANEL, CONSOLE 1
3P6-2837L-00-00
Unavailable
51
SEAL 1
3P6-28218-00-00
Unavailable
52
SEAL 2
3P6-28228-00-00
Unavailable
53
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
54
BOLT
90111-05007-00
Unavailable
55
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
56
NUT, SPRING
90183-050A6-00
Unavailable
57
RIVET
90269-06001-00
Unavailable
58
PANEL, CONSOLE 2
3P6-2837M-00-00
Unavailable
59
SEAL 1
3P6-28218-00-00
Unavailable
60
SEAL 2
3P6-28228-00-00
Unavailable
61
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
62
NUT, SPRING
90183-050A6-00
Unavailable
63
RIVET
90269-06001-00
Unavailable
64
PANEL, INNER 3
3P6-2836M-00-00
Unavailable
65
CAP
3P6-28349-00-00
Unavailable
66
NUT, SPRING
90183-050A6-00
Unavailable
67
SCREW, BINDING
90154-05007-00
Unavailable
68
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
69
SCREW, BINDING
90154-05007-00
Unavailable
70
NUT, SPRING
90183-050A6-00
Unavailable
71
RIVET
90269-06001-00
Unavailable
72
PANEL, INNER 4
3P6-2836N-00-00
Unavailable
73
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
74
BOLT
90111-05007-00
Unavailable
75
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
76
NUT, SPRING
90183-050A6-00
Unavailable
77
RIVET
90269-06001-00
Unavailable
78
REAR VIEW MIRROR ASSY (LEFT)
3P6-26280-00-P7
Unavailable
79
REAR VIEW MIRROR ASSY (RIGHT)
3P6-26290-00-P7
Unavailable
80
PLATE, MIRROR FITTING 1
5JW-26298-00-00
Unavailable
81
PLATE, MIRROR FITTING 2
3P6-26299-00-00
Unavailable
82
COLLAR(4JW)
90387-0602X-00
Unavailable
83
NUT, FLANGE
95702-06500-00
Unavailable
84
BOX SUB ASSY (BLACK METALLIC X)
3P6-2830N-00-P7
Unavailable
85
LOCK ASSY
5VS-28470-00-00
Unavailable
86
BRACKET
5VS-28367-00-00
Unavailable
87
NUT, SPRING
90183-051A0-00
Unavailable
88
GROMMET
3P6-28187-00-00
Unavailable
89
SCREW, TAPPING
90167-05080-00
Unavailable
90
NUT, SPRING
90183-050A6-00
Unavailable
91
SCREW(3YF)
90149-05299-00
Unavailable
92
CLAMP(4FM)
90464-13185-00
Unavailable
93
LABEL, CAUTION
5JW-2835Y-00-00
Unavailable
