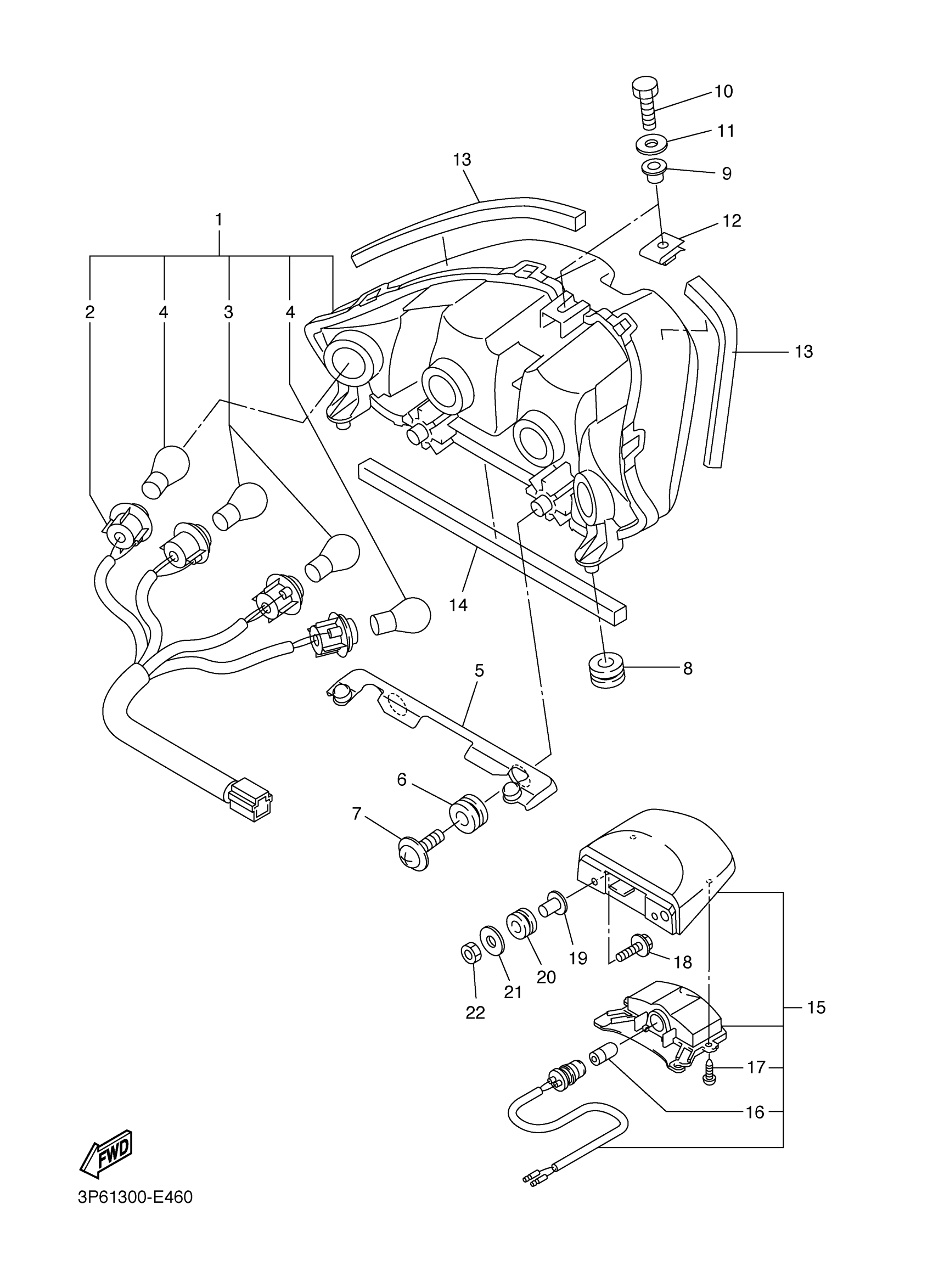

Yamaha FJR13AWC (FJR1300A CA) 3P6B 2007 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

3P6-84710-10-00

$277.99

2

CORD ASSY

3P6-84735-00-00

Unavailable

3

BULB

1A2-84714-50-00

$14.49

4

BULB, FLASHER

3P6-83331-00-00

$11.99

5

BRACKET, TAILLIGHT

3P6-2117E-00-00

Unavailable

6

GROMMET (4L0)

90480-18276-00

$8.49

7

SCREW, TAPPING

90164-05001-00

$8.49

8

DAMPER

4XV-83513-00-00

$7.99

9

COLLAR 437216330000

90387-07391-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

NUT, SPRING (26H)

90183-06023-00

$9.49

13

DAMPER

4FU-21747-00-00

$6.99

14

DAMPER, SEAT

2D1-24737-00-00

$3.85

15

LICENCE LIGHT UNIT ASSY

2D1-84745-00-00

Unavailable

16

BULB

4SV-84347-00-00

Unavailable

17

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

18

SCREW, WITH WASHER (537)

90159-05011-00

Unavailable

19

COLLAR

90387-05003-00

Unavailable

20

GROMMET

90480-11008-00

Unavailable

21

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

22

NUT, U

95617-05100-00

Unavailable
