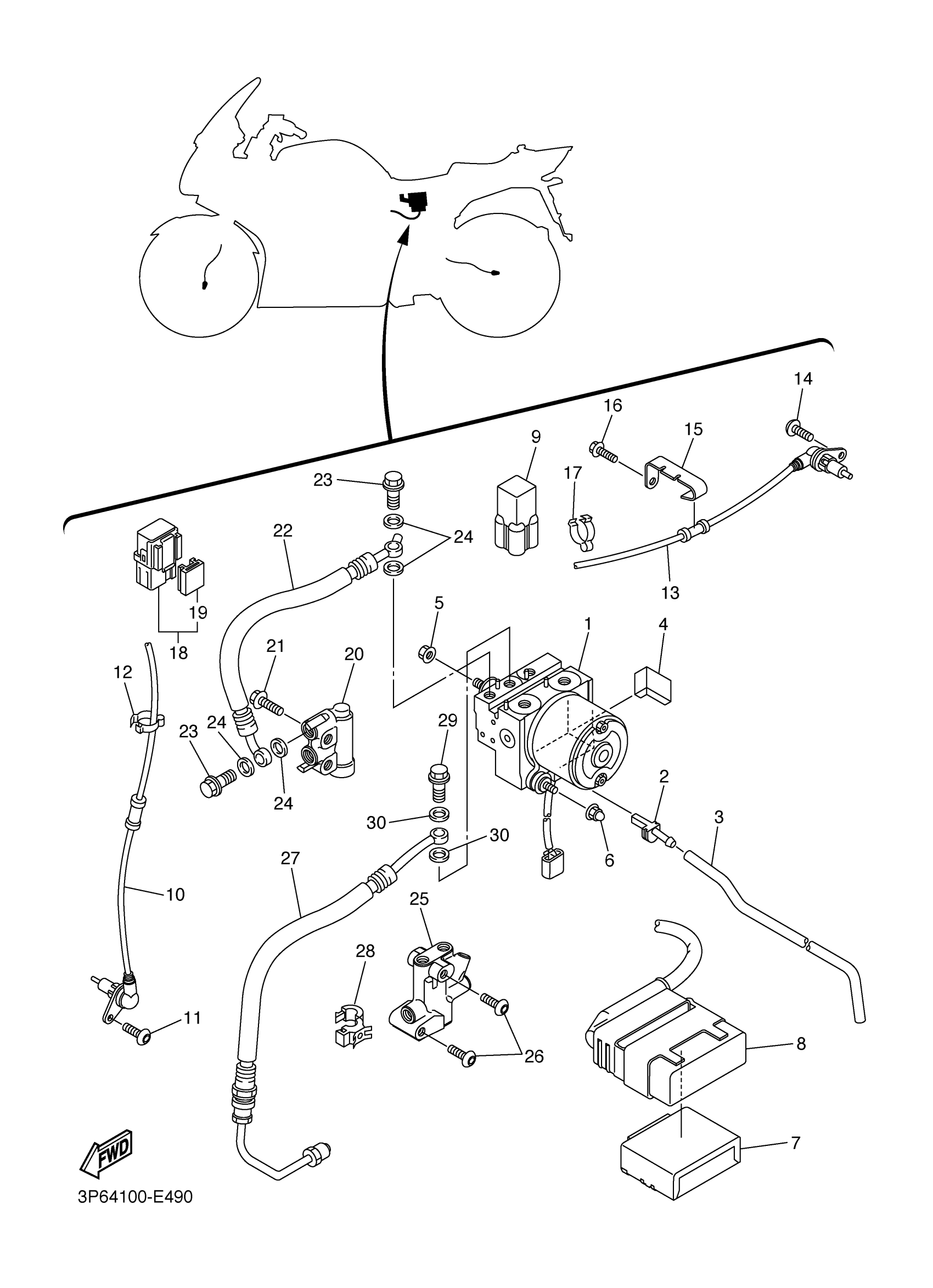

Yamaha FJR13AWC (FJR1300A CA) 3P6B 2007 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASSY

3P6-85930-09-00

Unavailable

2

PLUG, DRAIN

5CG-24196-00-00

Unavailable

3

HOSE, DRAIN

5VS-85828-00-00

Unavailable

4

DAMPER

2AL-84553-00-00

$11.99

5

NUT,FLANGE(J10)

95702-08500-00

$1.43

6

NUT, CROWN (4G0)

90176-08026-00

$14.99

7

ELECTRONIC CONTROL UNIT ASSY

3P6-85940-01-00

Unavailable

8

WIRE HARNESS ASSY

3P6-85950-00-00

Unavailable

9

CONNECTOR

3YA-82378-00-00

Unavailable

10

WHEEL SENSOR ASSY, FRONT

3P6-85970-00-00

Unavailable

11

BOLT, BUTTON

92014-08016-00

$8.49

12

CLAMP

90464-12013-00

$8.49

13

WHEEL SENSOR ASSY, REAR

3P6-85980-09-00

Unavailable

14

BOLT, BUTTON

92014-08016-00

$8.49

15

HOLDER, WIRE

3P6-86159-00-00

Unavailable

16

BOLT, FLANGE

90105-05014-00

Unavailable

17

CLAMP

90464-12013-00

$8.49

18

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

19

HOLDER,RELAY

5EA-81952-00-00

Unavailable

20

METERING VALVE ASSY

3P6-25940-00-00

Unavailable

21

BOLT, FLANGE

95817-06030-00

Unavailable

22

HOSE, BRAKE 8

3P6-2582L-00-00

Unavailable

23

BOLT, UNION

90401-10020-00

Unavailable

24

GASKET

90430-10005-00

Unavailable

25

VALVE, PROPORTIONING

3P6-25884-00-00

Unavailable

26

BOLT, BUTTON HEAD

92017-06040-00

Unavailable

27

BRAKE HOSE ASSY 5

3P6-2584E-00-00

Unavailable

28

CLAMP(4GY)

90464-08189-00

Unavailable

29

BOLT, UNION

90401-10020-00

Unavailable

30

GASKET

90430-10005-00

Unavailable
