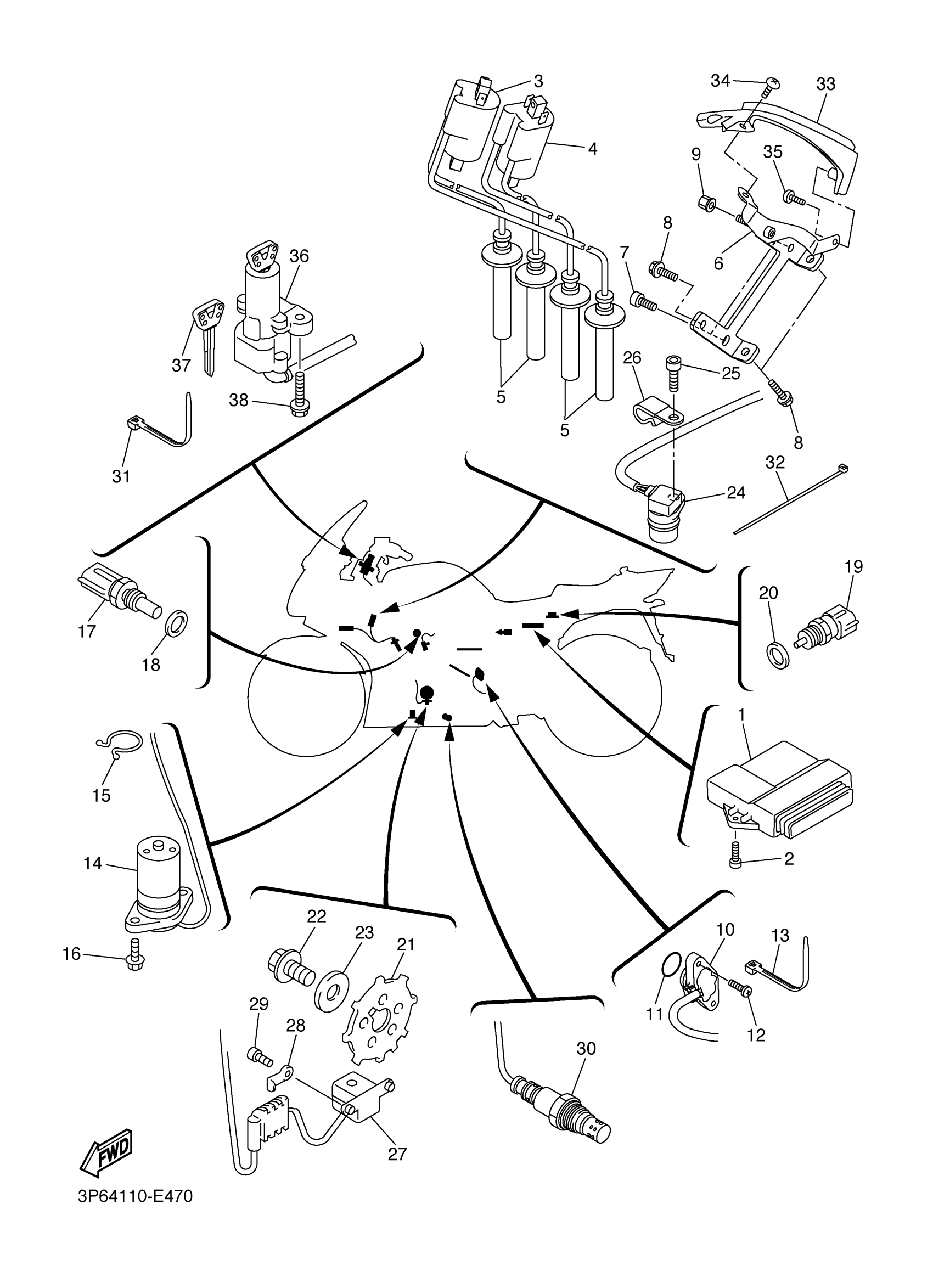

Yamaha FJR13AWC (FJR1300A CA) 3P6B 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

3P6-8591A-23-00

Unavailable

2

SCREW, TAPPING

97702-60020-00

$0.27

3

IGNITION COIL ASSY

3P6-82310-00-00

Unavailable

4

IGNITION COIL ASSY

3P6-82320-00-00

Unavailable

5

PLUG CAP ASSY

5JW-82370-00-00

$149.99

6

BRACKET, IGNITION COIL

3P6-82316-00-00

$61.99

7

BOLT,SOCKET

91317-06012-00

$8.49

8

BOLT, FLANGE

95022-06016-00

$3.62

9

NUT (1AE)

90179-06500-00

$7.49

10

NEUTRAL SWITCH ASSY

3P6-82540-01-00

$71.99

11

O-RING

93210-21001-00

$5.60

12

SCREW, BINDING

90154-05046-00

$2.29

13

BAND

1UA-82591-00-00

$4.78

14

OIL LEVEL GAUGE ASSY

3P6-85720-00-00

$149.99

15

CLAMP (3Y2)

90464-16039-00

$9.49

16

BOLT, FLANGE

95022-06016-00

$3.62

17

THERMOSENSOR ASSY

8CC-85790-01-00

Unavailable

18

WASHER, PLATE

90201-12790-00

Unavailable

19

THERMOSENSOR ASSY

5FL-85790-00-00

Unavailable

20

GASKET(2GH)

90430-12202-00

Unavailable

21

ROTOR

5JW-81673-10-00

Unavailable

22

BOLT, FLANGE

90105-10153-00

Unavailable

23

WASHER, PLATE(1WG)

90201-107K6-00

Unavailable

24

SENSOR, SPEED

5FL-83755-03-00

Unavailable

25

BOLT,SOCKET

91317-06016-00

Unavailable

26

CLAMP

90462-08039-00

Unavailable

27

PICK-UP ASSY

5JW-81670-00-00

Unavailable

28

CLAMP

90465-08055-00

Unavailable

29

BOLT(47X)

91312-05012-00

Unavailable

30

SENSOR

2D2-8592A-00-00

Unavailable

31

CLAMP

90465-10098-00

Unavailable

32

CLAMP

5Y9-12491-00-00

Unavailable

33

GUIDE, AIR 2

3P6-2137V-00-00

Unavailable

34

SCREW, BINDING (10V)

90154-05013-00

Unavailable

35

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

36

MAIN SWITCH STEERING LOCK

3P6-82501-22-00

Unavailable

37

BLANK KEY

4BH-82511-09-00

Unavailable

38

BOLT

90109-08196-00

Unavailable
