Description

Price

1

HEAD LIGHT SUB ASSY

3P6-8430B-20-00

Unavailable

2

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

3

COVER, SOCKET

5JW-84397-00-00

Unavailable

4

WIRE ASSY

3P6-8430N-00-00

Unavailable

5

HOLDER

3P6-8431U-00-00

$10.99

6

ROD

3P6-8431N-00-00

Unavailable

7

CIRCLIP

93440-06190-00

$8.49

8

NUT

90170-10206-00

$5.60

9

KNOB

3P6-8432N-00-00

$9.99

10

SCREW, PAN HEAD(3HH)

98507-03010-00

$3.55

11

CORD, HEADLIGHT

3P6-84359-10-00

$243.99

12

CLAMP(2TV)

90464-10112-00

$8.49

13

BAND

1UA-82591-00-00

$4.78

14

DAMPER

4XV-83513-00-00

$7.99

15

SCREW, ROUND TAPPING

90160-05006-00

$8.49

16

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

17

SCREW, BINDING (8J0)

90154-05005-00

Unavailable

18

NUT, SPRING

90183-050A6-00

Unavailable

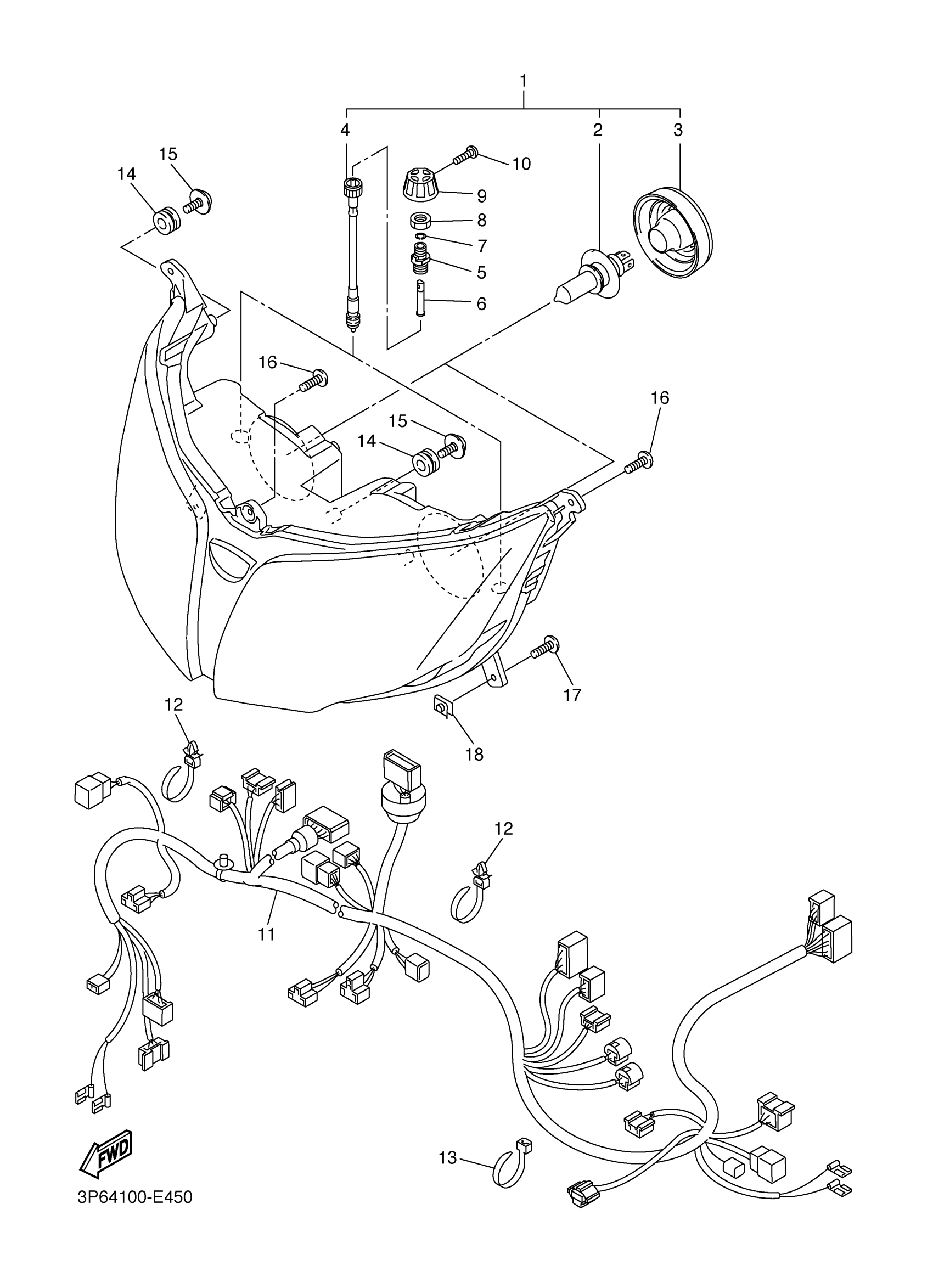

Yamaha FJR13AVC (FJR13ABS CA) 3P65 2006 HEADLIGHT Diagram

HEAD LIGHT SUB ASSY

BULB, HEADLIGHT

COVER, SOCKET

WIRE ASSY

HOLDER

ROD

CIRCLIP

NUT

KNOB

SCREW, PAN HEAD(3HH)

CORD, HEADLIGHT

CLAMP(2TV)

BAND

DAMPER

SCREW, ROUND TAPPING

SCREW, TAPPING(4MV)

SCREW, BINDING (8J0)

NUT, SPRING
