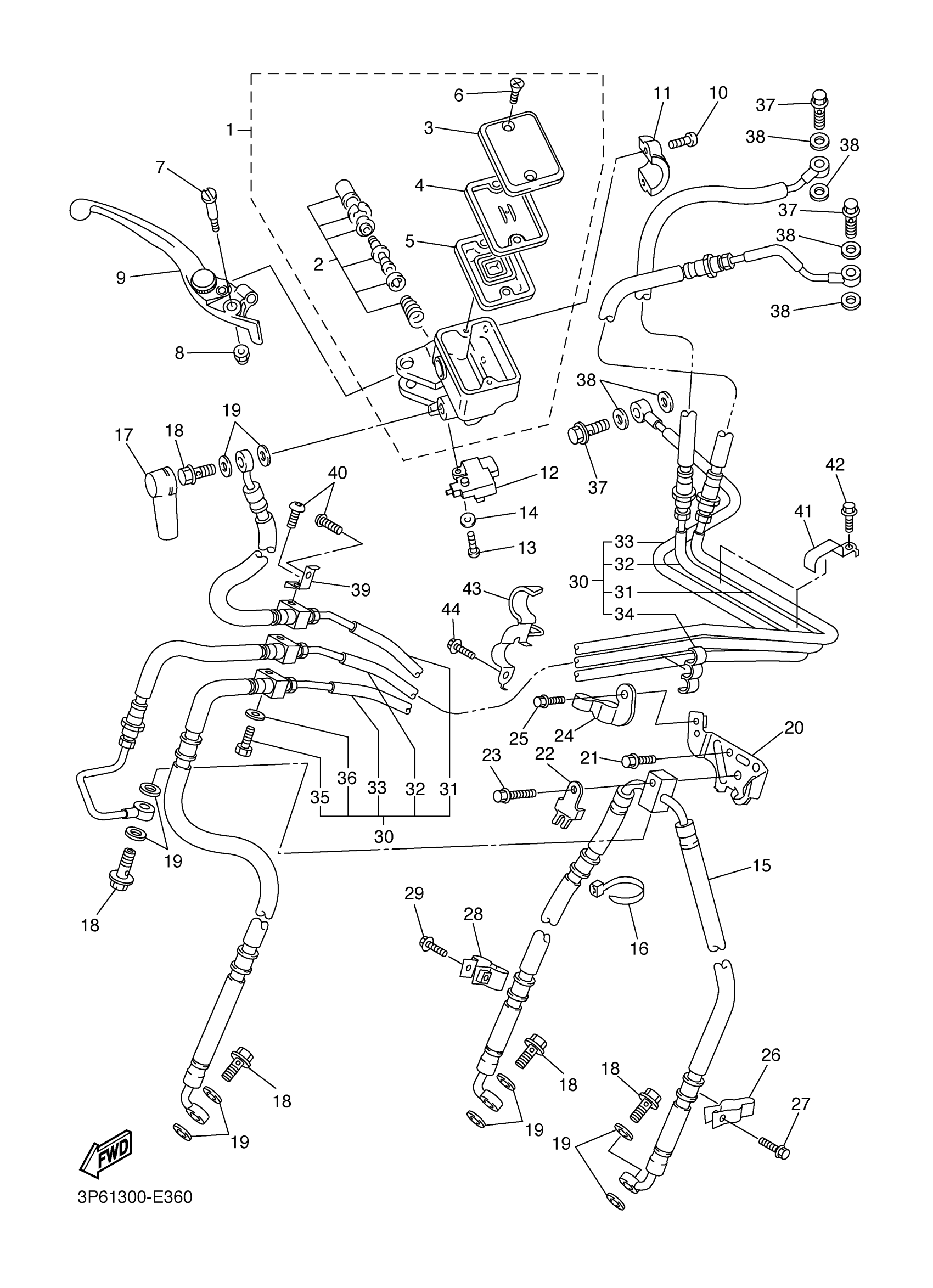

Yamaha FJR13AVC (FJR13ABS CA) 3P65 2006 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

3P6-W2587-11-00

Unavailable

CYLINDER KIT, MASTER

5JW-W0041-01-00

$66.99

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

BUSH,DIAPHRAGM

5VS-25855-00-00

$16.49

GASKET, DIAPHRAGM

20S-25854-00-00

$28.99

SCREW

5VS-2589H-00-00

$4.11

BOLT, LEVER

5VS-2589F-00-00

$14.49

NUT, SELF-LOCKING

95617-06100-00

$8.49

LEVER 2

5VS-83922-00-00

$85.99

BOLT

5VS-26332-00-00

$4.42

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$36.99

FRONT STOP SWITCH ASSY

3P6-83980-00-00

Unavailable

SCREW, PAN HEAD(N15)

98507-04014-00

$1.86

WASHER(JF2)

92907-04600-00

$1.71

HOSE, BRAKE 1

3P6-25872-01-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

BOLT, UNION

90401-10020-00

Unavailable

GASKET

90430-10005-00

Unavailable

HOLDER, BRAKE HOSE

3P6-25886-00-00

Unavailable

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

SLEEVE, CALIPER

5VS-25843-00-00

Unavailable

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

HOLDER, BRAKE HOSE

3P6-2587A-00-00

Unavailable

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

HOLDER, BRAKE HOSE

3P6-25887-00-00

Unavailable

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

HOLDER, BRAKE HOSE 2

3P6-25876-00-00

Unavailable

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

BRAKE HOSE ASSY

3P6-2584A-01-00

Unavailable

. HOSE, BRAKE

3P6-2584B-00-00

Unavailable

HOSE, BRAKE

3P6-2584C-00-00

Unavailable

HOSE, BRAKE

3P6-2584D-00-00

Unavailable

CLAMP

90464-07003-00

Unavailable

BOLT(8BC)

97017-06040-00

Unavailable

WASHER(6TA)

92907-06600-00

Unavailable

BOLT, UNION

90401-10020-00

Unavailable

GASKET

90430-10005-00

Unavailable

HOLDER, BRAKE HOSE 1

3P6-25875-00-00

Unavailable

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

HOLDER 2

3P6-2639F-00-00

Unavailable

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

HOLDER

3P6-26393-00-00

Unavailable

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable
