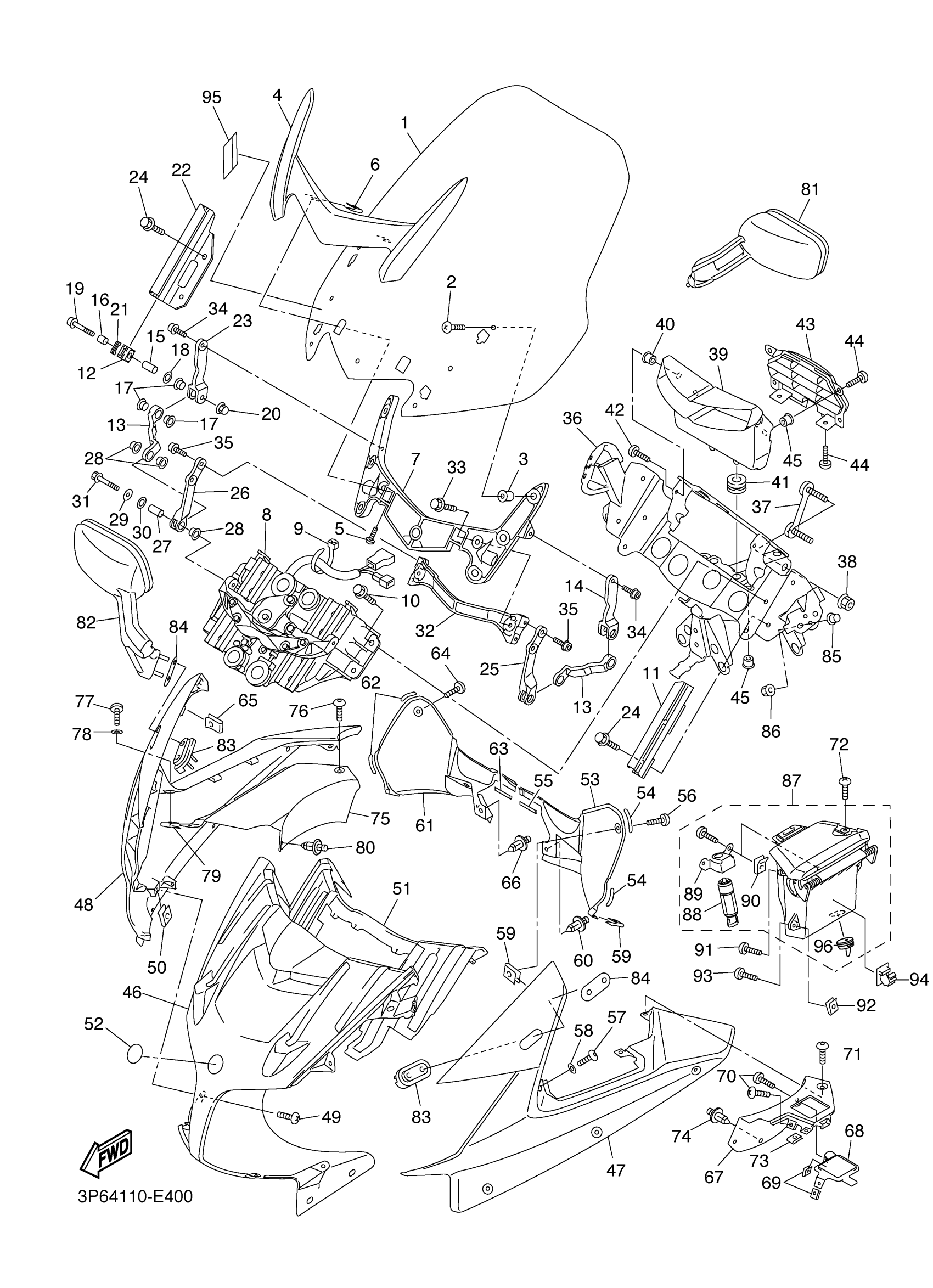

Yamaha FJR13AVC (FJR13ABS CA) 3P65 2006 COWLING 1 Diagram
#
7
STAY 2
3P6-28322-00-00
Unavailable
10
BOLT, FLANGE
95817-06014-00
Unavailable
11
STAY, GUIDE 1
3P6-2831E-00-00
Unavailable
13
LINK 1
3P6-2833C-00-00
Unavailable
16
COLLAR
90387-06131-00
Unavailable
17
SPACER
5JW-28329-00-00
Unavailable
18
WASHER, PLATE
90201-06078-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD
90110-06096-00
Unavailable
20
NUT, CROWN
90176-06082-00
Unavailable
21
DAMPER
3P6-28372-00-00
Unavailable
22
STAY, GUIDE 2
3P6-2831F-00-00
Unavailable
23
LINK 5
3P6-2834D-00-00
Unavailable
24
BOLT, FLANGE
95817-06014-00
Unavailable
25
LINK 3
3P6-2833P-00-00
Unavailable
26
LINK 4
3P6-2834P-00-00
Unavailable
28
SPACER
5JW-28329-00-00
Unavailable
29
WASHER, PLATE
90201-06078-00
Unavailable
30
WASHER, PLATE (655)
90202-10044-00
Unavailable
31
95822-06030
95822-06030-00
Unavailable
32
STAY, LEG SHIELD
3P6-28332-00-00
Unavailable
33
BOLT, FLANGE
95817-06016-00
Unavailable
34
BOLT, HEXAGON SOCKET HEAD
90110-06215-00
Unavailable
35
BOLT, HEXAGON SOCKET HEAD
90110-06215-00
Unavailable
36
STAY 1
3P6-28356-00-00
Unavailable
37
PLATE
5JW-28336-00-00
Unavailable
38
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
39
DUCT 1
3P6-2838N-00-00
Unavailable
41
GROMMET
90480-12003-00
Unavailable
42
SCREW, BIND
98902-05014-00
Unavailable
43
GRILL, AIR OUTLET 1
3P6-2837V-00-00
Unavailable
44
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
46
BODY, COWLING
3P6-28351-01-P2
Unavailable
47
UPPER COWLING ASSY 1
3P6-W283G-01-P2
Unavailable
48
UPPER COWLING ASSY 2
3P6-W283H-01-P2
Unavailable
49
SCREW, BINDING (10V)
90154-05013-00
Unavailable
50
NUT, SPRING
90183-050A6-00
Unavailable
51
SEAL SET
99999-03841-00
Unavailable
52
TUNING FORK MARK
5LV-2836B-01-00
Unavailable
53
PANEL, CONSOLE 1
3P6-2837L-00-00
Unavailable
54
SEAL 1
3P6-28218-00-00
Unavailable
55
SEAL 2
3P6-28228-00-00
Unavailable
56
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
57
BOLT
90111-05007-00
Unavailable
58
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
59
NUT, SPRING
90183-050A6-00
Unavailable
60
RIVET
90269-06001-00
Unavailable
61
PANEL, CONSOLE 2
3P6-2837M-00-00
Unavailable
62
SEAL 1
3P6-28218-00-00
Unavailable
63
SEAL 2
3P6-28228-00-00
Unavailable
64
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
65
NUT, SPRING
90183-050A6-00
Unavailable
66
RIVET
90269-06001-00
Unavailable
67
PANEL, INNER 3
3P6-2836M-00-00
Unavailable
68
CAP
3P6-28349-00-00
Unavailable
69
NUT, SPRING
90183-050A6-00
Unavailable
70
SCREW, BINDING
90154-05007-00
Unavailable
71
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
72
SCREW, BINDING
90154-05007-00
Unavailable
73
NUT, SPRING
90183-050A6-00
Unavailable
74
RIVET
90269-06001-00
Unavailable
75
PANEL, INNER 4
3P6-2836N-00-00
Unavailable
76
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
77
BOLT
90111-05007-00
Unavailable
78
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
79
NUT, SPRING
90183-050A6-00
Unavailable
80
RIVET
90269-06001-00
Unavailable
81
REAR VIEW MIRROR ASSY (LEFT)
3P6-26280-00-P2
Unavailable
82
REAR VIEW MIRROR ASSY (RIGHT)
3P6-26290-00-P2
Unavailable
83
PLATE, MIRROR FITTING 1
5JW-26298-00-00
Unavailable
84
PLATE, MIRROR FITTING 2
3P6-26299-00-00
Unavailable
85
COLLAR(4JW)
90387-0602X-00
Unavailable
86
NUT, FLANGE
95702-06500-00
Unavailable
87
BOX SUB ASSY (DARK PURPLISH BLUE METALLIC U)
3P6-2830N-00-P2
Unavailable
88
LOCK ASSY
5VS-28470-00-00
Unavailable
89
BRACKET
5VS-28367-00-00
Unavailable
90
NUT, SPRING
90183-051A0-00
Unavailable
91
SCREW, TAPPING
90167-05080-00
Unavailable
92
NUT, SPRING
90183-050A6-00
Unavailable
93
SCREW(3YF)
90149-05299-00
Unavailable
94
CLAMP(4FM)
90464-13185-00
Unavailable
95
LABEL, CAUTION
5JW-2835Y-00-00
Unavailable
96
GROMMET
3P6-28187-00-00
Unavailable
