REAR MASTER CYLINDER

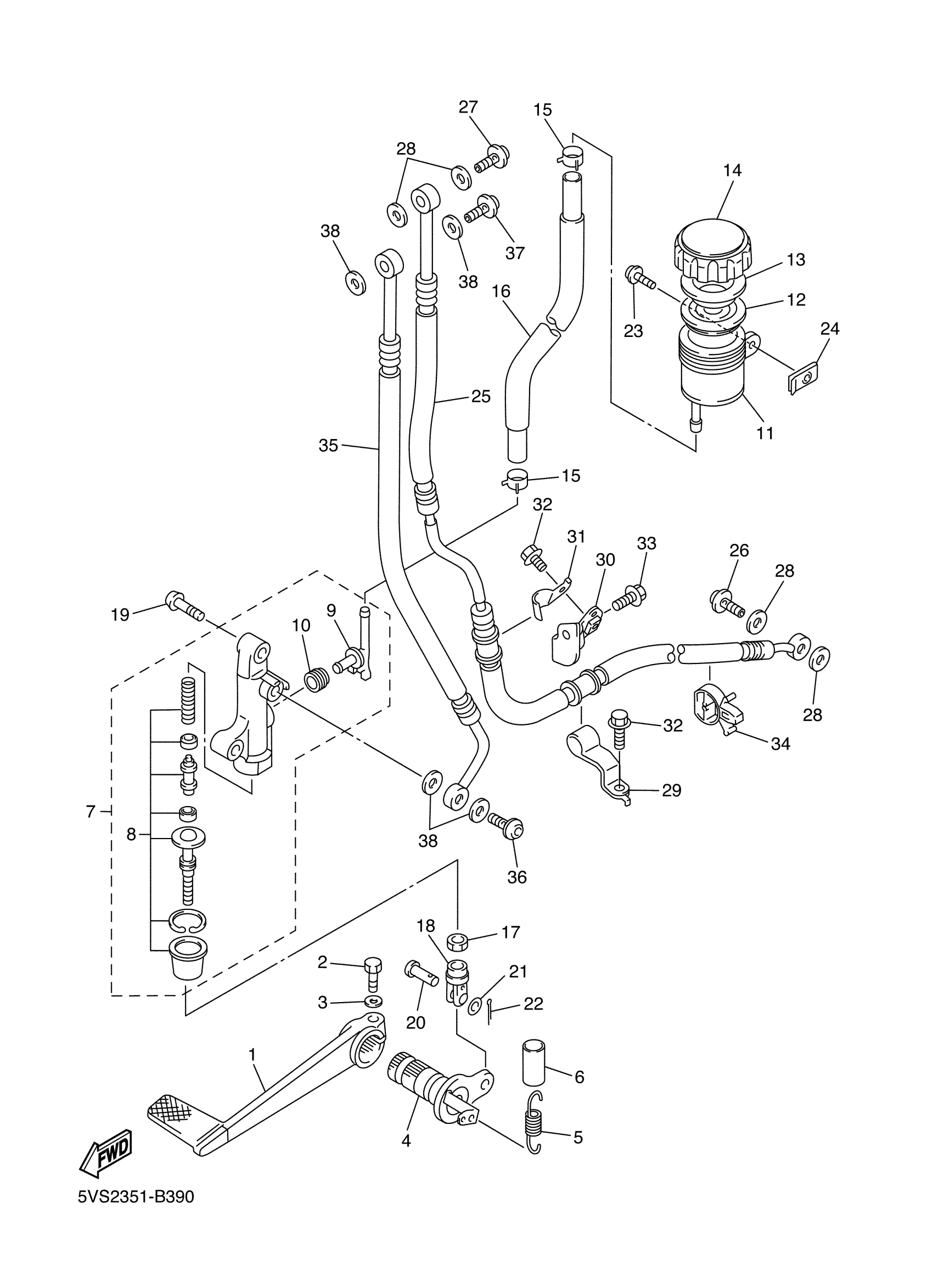

Yamaha FJR13ATC (FJR1300ABS CA) 5VSB 2005 REAR MASTER CYLINDER Diagram
#
4
SHAFT, BRAKE PEDAL
5JW-27212-01-00
Unavailable
7
RR. MASTER CYLINDER ASSY.
5VS-2583V-00-00
Unavailable
8
CYLINDER KIT, MASTER
5VS-W0042-50-00
Unavailable
9
JOINT
5VS-2582A-01-00
Unavailable
10
O-RING
4BP-2585F-01-00
Unavailable
11
TANK, RESERVOIR
5VS-25894-00-00
Unavailable
16
HOSE, RESERVOIR
5VS-25895-00-00
Unavailable
17
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
18
JOINT
5SL-27222-00-00
Unavailable
19
BOLT, BUTTON
92017-08030-00
Unavailable
20
PIN, CLEVIS (5X6)
91701-06018-00
Unavailable
21
WASHER(6TA)
92907-06200-00
Unavailable
22
PIN, COTTER
91490-16020-00
Unavailable
23
SCREW, WITH WASHER (36X)
90159-06085-00
Unavailable
24
NUT, SPRING(4ES)
90183-06069-00
Unavailable
25
HOSE, BRAKE 5
5VS-2581K-00-00
Unavailable
26
BOLT, UNION
90401-10172-00
Unavailable
27
BOLT, UNION
90401-10020-00
Unavailable
28
WASHER, PLATE(481)
90201-10118-00
Unavailable
29
HOLDER, BRAKE HOSE 2
5VS-25876-10-00
Unavailable
30
HOLDER, BRAKE HOSE 5
5VS-2588F-00-00
Unavailable
31
HOLDER, BRAKE HOSE 6
5VS-2588G-00-00
Unavailable
32
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
33
BOLT, FLANGE
95817-06016-00
Unavailable
34
CLAMP(4NX)
90464-23239-00
Unavailable
35
HOSE, BRAKE 4
5VS-2581J-00-00
Unavailable
36
BOLT, UNION
90401-10172-00
Unavailable
37
BOLT, UNION
90401-10020-00
Unavailable
38
WASHER, PLATE(481)
90201-10118-00
Unavailable
