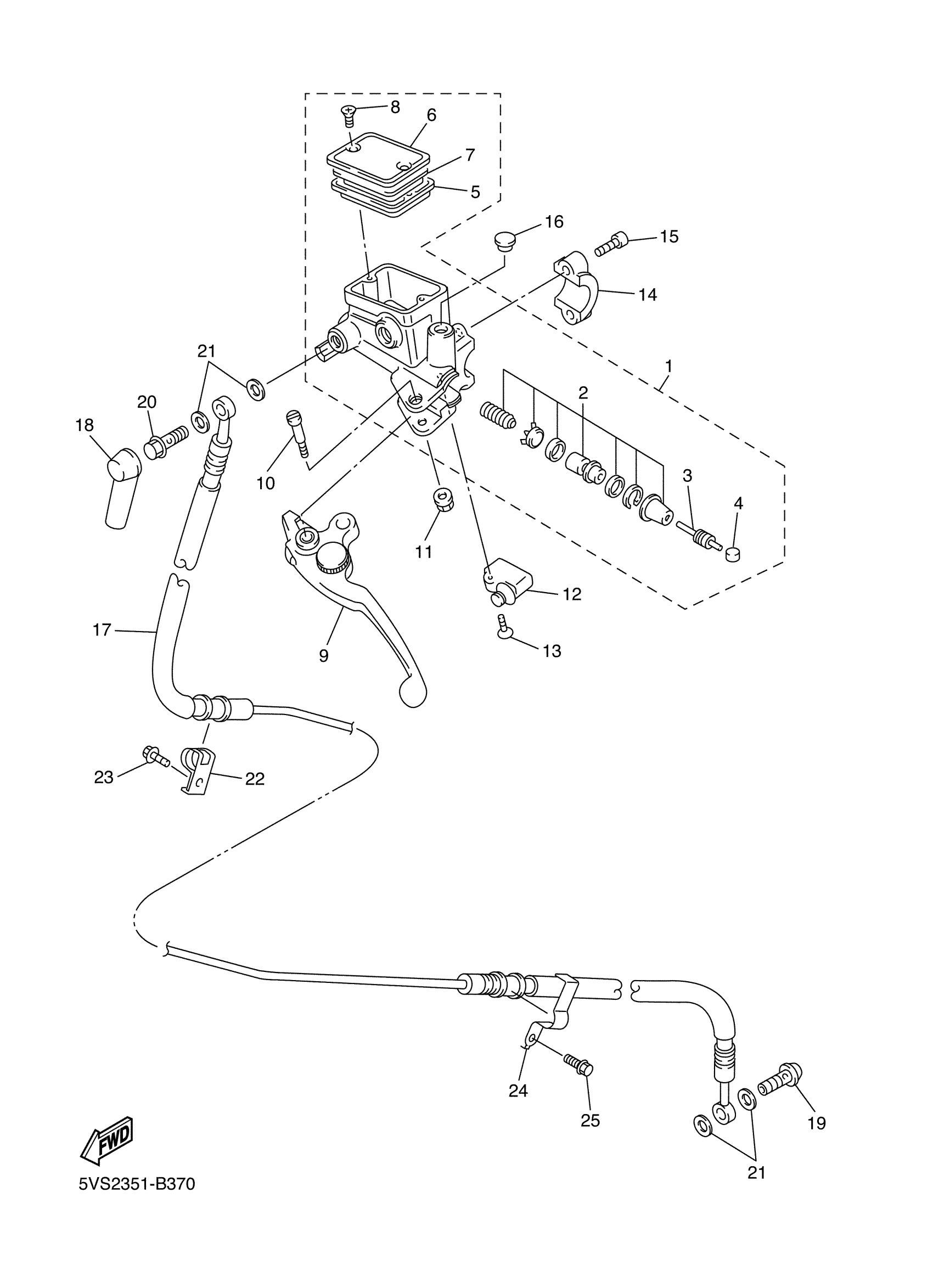

Yamaha FJR13ATC (FJR1300ABS CA) 5VSB 2005 FRONT MASTER CYLINDER 2 Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5JW-W2645-01-00

Unavailable

2

CYLINDER KIT, MASTER (CLUTCH)

5JW-W0099-00-00

$42.65

3

ROD, PUSH

3GM-26464-00-00

$14.81

4

BUSH

3GM-26455-00-00

$17.59

5

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$29.13

6

CAP, RESERVOIR

4HM-25852-01-00

$16.03

7

PLATE, DIAPHRAGM

3GM-2585B-10-00

$9.98

8

SCREW, FLAT

98707-04012-00

$1.34

9

LEVER 1

5EA-83912-00-00

$77.80

10

BOLT, LEVER

3FV-2589F-00-00

$11.87

11

NUT, FLANGE(4MV)

95707-06500-00

$0.73

12

SWITCH

3GM-83980-00-00

$44.21

13

SCREW, FLAT

98707-04016-00

$5.76

14

BRACKET, MASTER CYLINDER

4KG-25867-00-00

Unavailable

15

BOLT,SOCKET

91317-06020-00

Unavailable

16

PLUG (341-26329-00)

90338-09012-00

Unavailable

17

HOSE, CLUTCH

5VS-26470-00-00

Unavailable

18

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

19

BOLT, UNION

90401-10172-00

Unavailable

20

BOLT, UNION

90401-10020-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

CLAMP, HOSE

5JW-21823-00-00

Unavailable

23

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

24

HOLDER, BRAKE HOSE 1

5VS-25875-10-00

Unavailable

25

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
