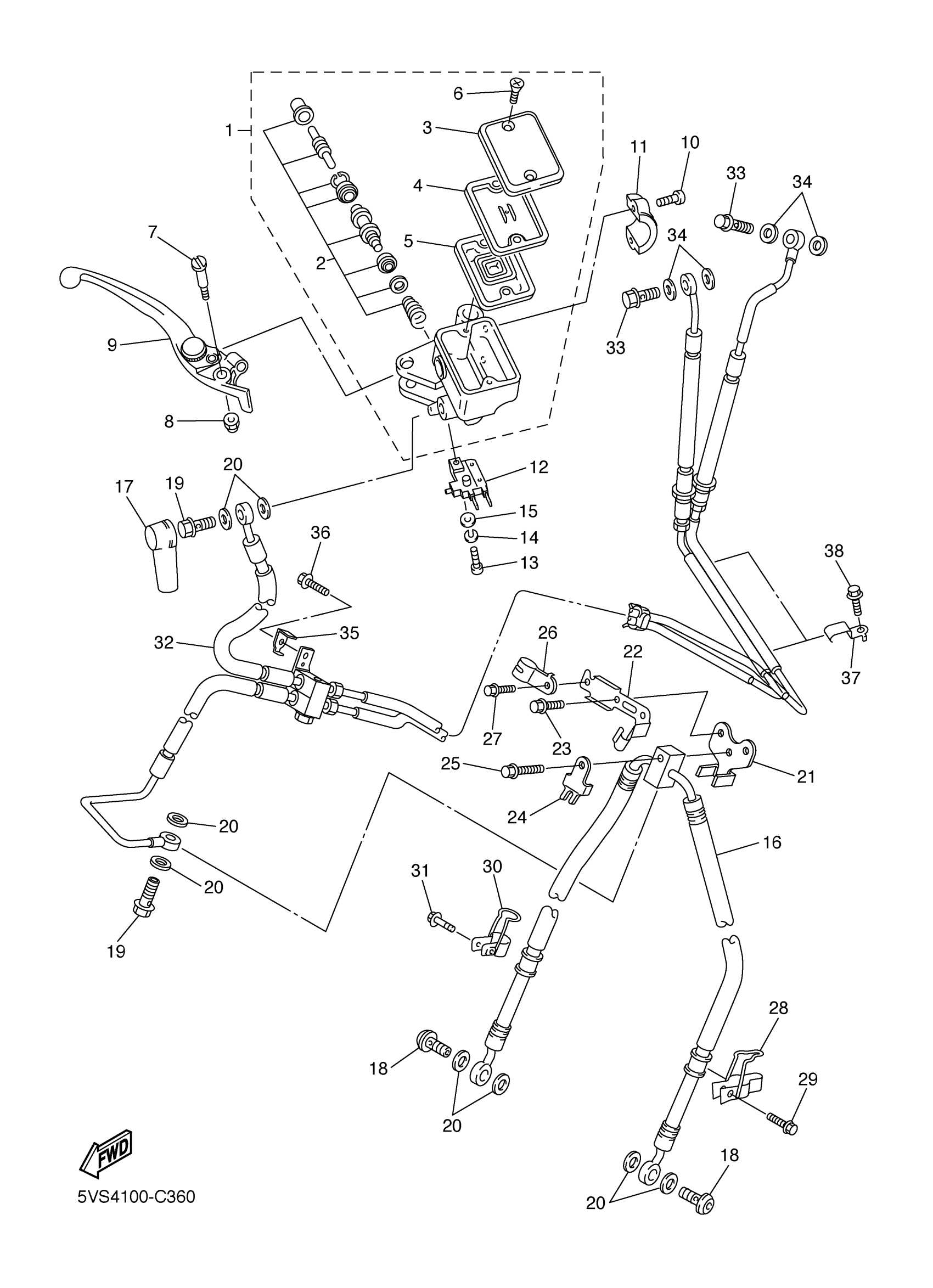

Yamaha FJR13ATC (FJR1300ABS CA) 5VSB 2005 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5VS-W2587-00-00

Unavailable

2

CYLINDER KIT, MASTER

2D1-25807-00-00

$69.99

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$16.49

5

GASKET, DIAPHRAGM

20S-25854-00-00

$28.99

6

SCREW

5VS-2589H-00-00

$4.11

7

BOLT, LEVER

5VS-2589F-00-00

$14.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

LEVER 2

5VS-83922-00-00

$85.99

10

BOLT

5VS-26332-00-00

$4.42

11

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$36.99

12

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

WASHER, PLAIN (646)

92990-04600-00

$5.99

16

HOSE, BRAKE 1

5VS-25872-00-00

Unavailable

17

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

18

BOLT, UNION

90401-10172-00

Unavailable

19

BOLT, UNION

90401-10020-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

HOLDER, BRAKE HOSE

5VS-25886-00-00

Unavailable

22

HOLDER, BRAKE HOSE

5VS-25886-10-00

Unavailable

23

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

24

SLEEVE, CALIPER

5VS-25843-00-00

Unavailable

25

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

26

HOLDER, BREAK HOSE

5VS-2587A-10-00

Unavailable

27

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

28

HOLDER, BRAKE HOSE

5VS-25887-01-00

Unavailable

29

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

30

HOLDER, BRAKE HOSE 2

4KG-25876-01-00

Unavailable

31

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

32

BRAKE HOSE ASSY

5VS-2584A-10-00

Unavailable

33

BOLT, UNION

90401-10020-00

Unavailable

34

WASHER, PLATE(481)

90201-10118-00

Unavailable

35

HOLDER, BRAKE HOSE 2

5VS-25876-40-00

Unavailable

36

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

37

HOLDER, BRAKE HOSE

5VS-25887-10-00

Unavailable

38

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
