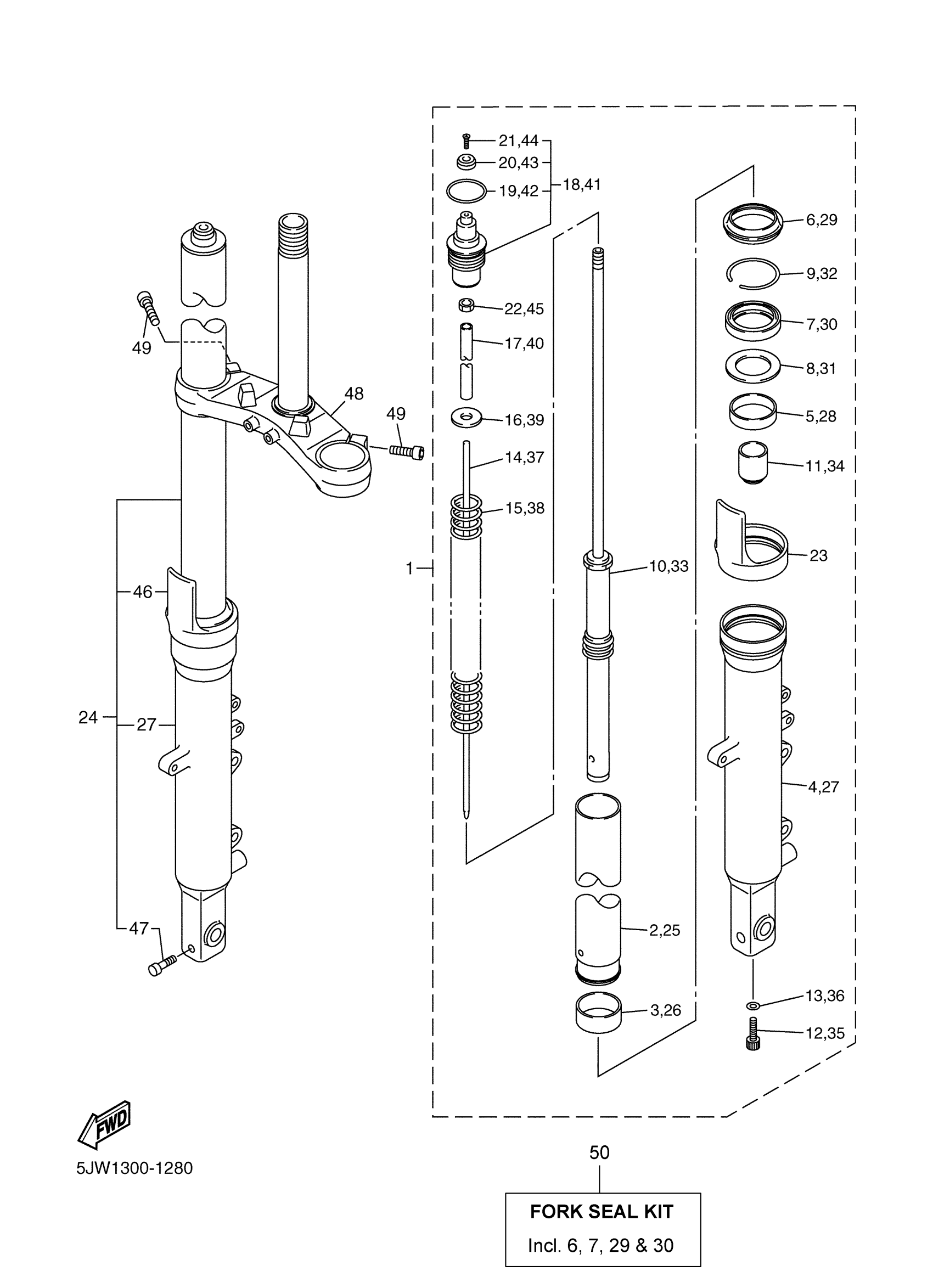

Yamaha FJR13ATC (FJR1300ABS CA) 5VSB 2005 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5VS-23102-00-00

Unavailable

2

. INNER TUBE COMP 1

5JW-23110-00-00

Unavailable

3

METAL, SLIDE 2

4SV-23135-10-00

$20.99

4

OUTER TUBE COMP. (L.H)

5VS-23106-00-00

$250.99

5

METAL, SLIDE 1

4SV-23125-10-00

$20.99

6

SEAL, DUST

4SV-23144-00-00

$16.49

7

OIL SEAL

4SV-23145-01-00

$18.49

8

SEAT 1

4SV-23115-00-00

$7.99

9

CLIP, OIL SEAL

4SV-23156-00-00

$7.99

10

CYLINDER COMP., FRONT FORK

5JW-23170-00-00

Unavailable

11

SPINDLE, TAPER

5LV-23173-00-00

$60.99

12

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

$7.49

13

GASKET (5R6)

90430-10171-00

$3.18

14

PLUNGER

5JW-2318Y-00-00

$7.99

15

. SPRING, FRONT FORK

5VS-23141-00-00

Unavailable

16

WASHER, PLATE (856)

90201-10321-00

Unavailable

17

SPACER

5JW-23118-00-00

Unavailable

18

BOLT, CAP

5JW-23111-01-00

Unavailable

19

O-RING(4SV)

93210-40N50-00

Unavailable

20

KNOB (TEN)

5JW-2319W-00-00

Unavailable

21

SCREW, OVAL HEAD

98680-03008-00

Unavailable

22

NUT(6TD)

95337-10600-00

Unavailable

23

COVER

4SV-2331G-00-00

Unavailable

24

FRONT FORK ASSY (R.H)

5VS-23103-00-00

Unavailable

25

. INNER TUBE COMP 1

5JW-23110-00-00

Unavailable

26

METAL, SLIDE 2

4SV-23135-10-00

$20.99

27

. OUTER TUBE COMP (RH)

5VS-23107-00-00

Unavailable

28

METAL, SLIDE 1

4SV-23125-10-00

$20.99

29

SEAL, DUST

4SV-23144-00-00

$16.49

30

OIL SEAL

4SV-23145-01-00

$18.49

31

SEAT 1

4SV-23115-00-00

$7.99

32

CLIP, OIL SEAL

4SV-23156-00-00

$7.99

33

CYLINDER COMP., FRONT FORK

5JW-23170-00-00

Unavailable

34

SPINDLE, TAPER

5LV-23173-00-00

$60.99

35

BOLT, HEXAGON SOCKET HEAD

90110-10N52-00

$7.49

36

GASKET (5R6)

90430-10171-00

$3.18

37

PLUNGER

5JW-2318Y-00-00

$7.99

38

. SPRING, FRONT FORK

5VS-23141-00-00

Unavailable

39

WASHER, PLATE (856)

90201-10321-00

Unavailable

40

SPACER

5JW-23118-00-00

Unavailable

41

BOLT, CAP

5JW-23111-01-00

Unavailable

42

O-RING(4SV)

93210-40N50-00

Unavailable

43

KNOB (TEN)

5JW-2319W-00-00

Unavailable

44

SCREW, OVAL HEAD

98680-03008-00

Unavailable

45

NUT(6TD)

95337-10600-00

Unavailable

46

COVER

4SV-2331G-00-00

Unavailable

47

BOLT,SOCKET

91314-08040-00

Unavailable

48

UNDER BRACKET COMP.

5JW-23340-00-00

Unavailable

49

BOLT, SOCKET

91317-08025-00

Unavailable

50

FORK SEAL KIT (TWO FORKS)

4SV-W003B-00-00

Unavailable
